Metso IOP320 DNA DCS Processor Module

Description

Product Introduction

The Metso IOP320 is a high-performance I/O processor module built for the Metso DNA (now Valmet DNA) Distributed Control System architecture. Designed to handle demanding continuous process environments, the IOP320 acts as the local intelligence hub within a DNA I/O rack. It offloads field signal conditioning, analog-to-digital conversions, and point-level diagnostics from the main process controller, keeping system scan times short and predictable.

Engineered for critical industrial infrastructure, the IOP320 supports redundant bus topologies to guarantee unbroken signal flow across process loops. It interfaces directly with a broad range of Metso DNA analog and digital I/O sub-modules across pulp and paper mills, power generation facilities, and mineral processing skids. When an aging IOP320 card suffers component degradation or logic execution faults, swapping in a pre-tested surplus unit restores node health without requiring an expensive DCS platform migration.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

We responded to a critical call at a kraft pulp mill during a scheduled boiler restart. An I/O sub-rack handling critical steam pressure and flow telemetry lost communication to the main DCS node. The system threw a persistent bus timeout alarm, freezing valve position feedback and preventing the boiler permissive sequence from completing. Troubleshooting isolated the issue to a failed bus transceiver on the local IOP320 processor card, damaged after years of exposure to ambient cabinet heat. The mill was losing thousands of dollars an hour waiting for restart approval. Installing a bench-tested IOP320 module re-established local rack handshake loops and brought the boiler safety permissives back online in under 20 minutes.

• Pulp & Paper Operations: Processing real-time field data for paper machine drives, stock preparation, and chemical bleaching loops.
• Power & Thermal Generation: Managing sensor inputs for boiler feedwater, turbine bypass valves, and emissions monitoring skids.
• Mining & Mineral Beneficiation: Handling rugged field I/O signals across heavy grinding mills, flotation cells, and slurry transport pumps.
• Chemical Processing: Executing fast-loop analog data collection across hazardous area barrier racks.

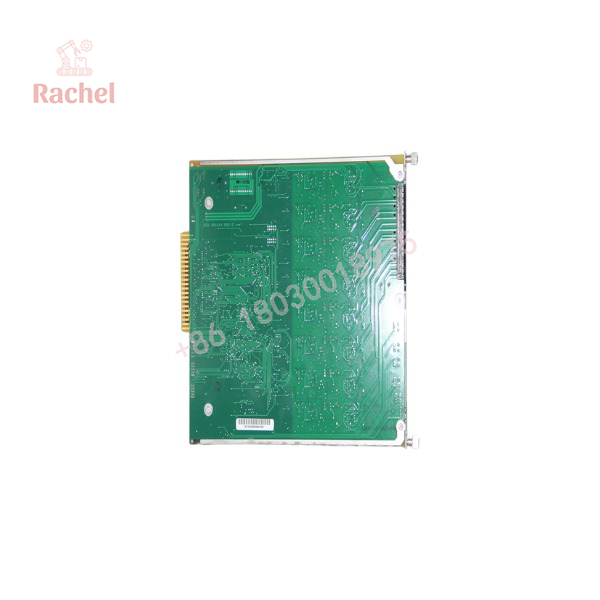

IOP320

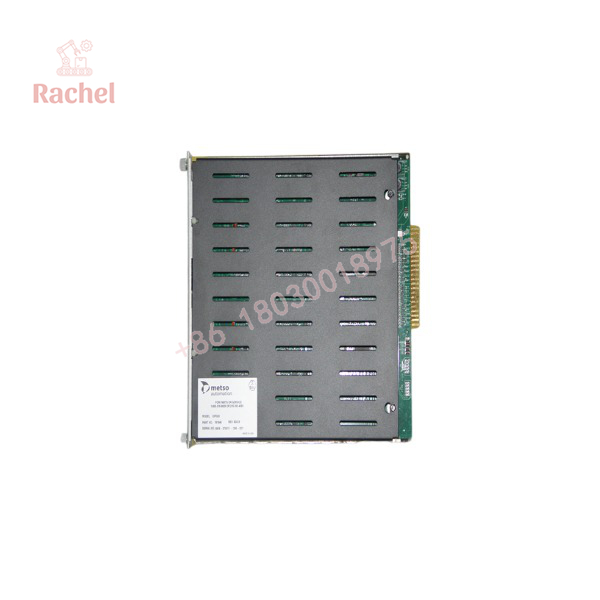

IOP320

Transparency SOP: Quality Assurance & Testing

We never ship raw, unverified DCS surplus. Every Metso IOP320 processor card goes through a strict 5-step engineering bench test before entering static-shielded storage:

1. Inbound Visual Audit: Inspect the edge connector contacts, surface-mount components, onboard capacitors, and circuit trace lines for thermal degradation or physical damage.
2. Cold Resistance & Power Rail Diagnostic: Measure internal logic power rails with a digital multimeter to confirm zero short circuits across secondary bus lines.
3. Live Rack Boot-Up Test: Mount the IOP320 into an active Metso DNA test rack chassis to confirm normal LED boot sequences, logic execution, and system bus initialization.
4. I/O Communication Handshake: Inject simulated field analog and digital signals across connected I/O channels to verify data transfer accuracy to the test controller.
5. Clean & ESD Protective Packaging: Flush edge connectors with isopropyl alcohol, log hardware revision numbers, and enclose the unit in static-shielding metallic bubble wrap.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

⚠️ Backplane Pin Alignment: Never force the IOP320 card into the sub-rack card guide! The multi-pin backplane connector features high-density pins. Sliding the module in off-angle can bend edge pins or short 24V supply rails directly into low-voltage communication traces, ruining the backplane bus.

❗ Firmware & Hardware Revision Matching: Pay close attention to hardware revision suffixes on the IOP320 PCB. While different revisions are often backward-compatible, mixing older hardware revisions with newer Metso DNA software releases can cause unexpected bus communication drops or un-acknowledged I/O channel faults.

⚠️ Grounding & Shielding Integrity: Ensure the sub-rack ground strap and cabinet shield grounding bars are clean and tightly torqued. Noise induced on the fieldbus cables from ungrounded variable frequency drives can saturate the communication transceivers on the IOP320 card, resulting in intermittent node disconnects.

Frequently Asked Questions (FAQ)

Q: Can I hot-swap the Metso IOP320 module while the DCS rack is powered?

A: Yes, if the sub-rack is configured with dual-redundant bus processors and software hot-swap permissives are enabled. However, to prevent contact arc damage or transient noise on adjacent channels, pull and insert the card cleanly in one smooth motion.

Q: What causes the “FAULT” LED to illuminate on the front panel?

A: A solid red “FAULT” LED typically indicates a hardware self-test failure upon boot-up, a memory checksum error, or a complete loss of communication with adjacent field I/O expansion modules on the local rack bus.

Q: Is the Metso IOP320 compatible with Valmet DNA systems?

A: Yes. Metso DNA was rebranded as Valmet DNA following corporate restructuring. The underlying hardware bus standards, form factors, and communication protocols remain fully compatible across both brand designations.

Q: Do I need to re-program the IOP320 board when replacing a dead unit?

A: No. The IOP320 functions as an I/O processing hardware interface. System parameters, tag databases, and control logic are downloaded automatically from the master DCS controller node upon rack initialization.

Q: What warranty coverage comes with this replacement module?

A: Every Metso IOP320 board supplied comes complete with a full 12-month operational replacement warranty backed by our engineering test facility.
