Description
Product Introduction
The MKS Instruments BY150 is a specialized power supply and control unit engineered for laboratory and industrial mass flow measurement systems. Designed to drive MKS mass flow controllers and pressure transducers, it delivers clean, highly regulated DC power while providing real-time signal monitoring and setpoint adjustments across critical gas delivery lines.
In semiconductor manufacturing, thin-film deposition, and analytical instrumentation facilities, the BY150 maintains stable process gas delivery loops. Because MKS has transitioned through multiple generations of control hardware, sourcing a verified, fully tested BY150 is essential for keeping legacy gas panels operational without forcing an expensive rack redesign.
Key Technical Specifications
| Parameter | Specification |
| Manufacturer | MKS Instruments |
| Model / Part Number | BY150 |
| Product Category | Mass Flow Controller Power Supply & Readout |
| Input Power Requirements | Standard AC Line Voltage (Switchable 115V / 230V AC) |
| Output Channels | Multi-channel DC power and signal interfacing |
| Display Type | Analog meter or digital front-panel readout |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Mounting Style | Benchtop enclosure or 19-inch rack-mount adapter |
| Weight | Approx. 6.5 lbs (2.95 kg) |
| Lifecycle Status | Obsolete / Discontinued by Manufacturer |
Application Scenarios & The “Trench” Experience
It is 4 AM in a semiconductor cleanroom fabrication bay, and a critical chemical vapor deposition process aborts mid-run due to an unstable mass flow controller signal. Diagnostics trace the fault straight to the power rack: the internal power supply module has dropped its +15V DC rail, leaving your mass flow controllers starving for stable excitation voltage. You cannot wait weeks for custom factory rebuilds while production schedules slip. Swapping in a verified, bench-tested MKS BY150 restores clean DC power rails and loop control instantly, getting your process tools back online.
- Semiconductor Fabrication Tools – Gas box and delivery manifold control – Delivers stable power and setpoint signals to mass flow controllers.
- Thin-Film Deposition Systems – Vacuum chamber instrumentation – Ensures precise reactant gas metering during delicate coating cycles.
- Analytical R&D Laboratories – Custom gas mixing test benches – Provides multi-channel readout and manual flow tuning.
- Industrial Process Control Skids – Legacy environmental chamber gas loops – Maintains dependable sensor excitation without system rewiring.

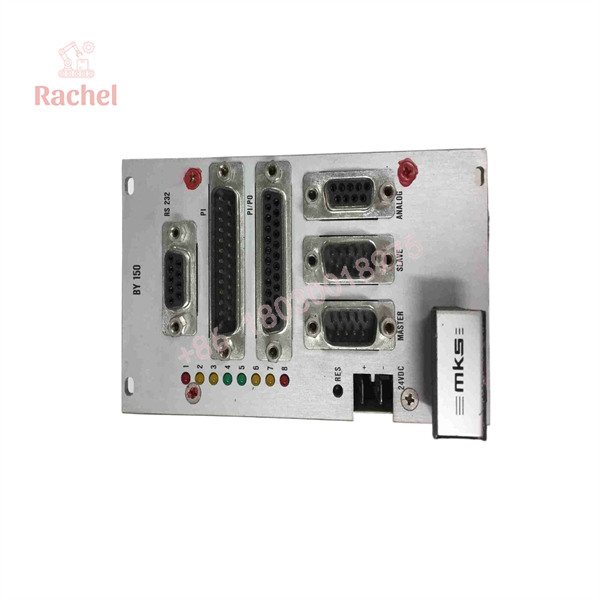

BY150

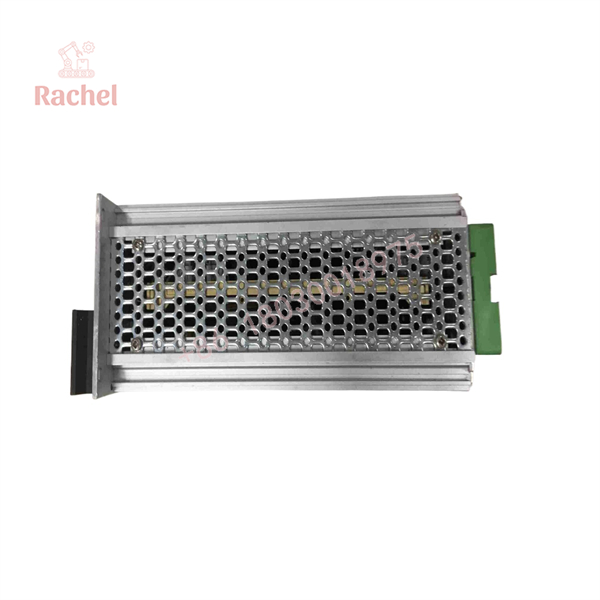

BY150
Transparency SOP: Quality Assurance & Testing
Precision instrumentation power supplies require rigorous electrical benchmarking before shipment:
- Visual & Internal Inspection: Checking electrolytic capacitors for leakage or bulging, inspecting internal wiring harnesses, and verifying transformer integrity.
- AC Line Voltage Conditioning: Powering the unit up on a variable AC source to test 115V/230V selection switches and fuse protection circuits.
- DC Rail Voltage Regulation: Measuring output voltage under no-load and full-load conditions to ensure ripple suppression and tight voltage stability on all rails.
- Mass Flow Handshake Test: Connecting a live mass flow controller to verify setpoint transmission accuracy and flow readout calibration.
- Anti-Static & Protective Packaging: Sealed in moisture-barrier shielding and packed in high-density structural foam to prevent shipping damage.
The Veteran’s Tech Trap Guide
- ⚠️ Mains Voltage Selector Warning: Always verify the rear-panel 115V/230V AC line voltage selector switch before plugging in a replacement BY150. Powering a 115V-set unit with a 230V line will instantly destroy the primary transformer winding.
- ❗ Pinout Compatibility: MKS cable pinouts can vary across different controller generations. Verify your interface cable pin configuration matches the BY150 rear D-sub connectors to prevent shorting control signals.
- ⚠️ Capacitor Aging: Older power supplies rely on electrolytic capacitors that dry out over extended storage periods. Ensure your surplus unit has been power-conditioned and bench-tested before deploying it into a critical gas line.
- ❗ Grounding Loop Noise: Ensure the chassis earth ground stud on the back of the BY150 is cleanly tied to your cabinet ground bus; floating grounds will introduce signal noise into analog flow readouts.
Frequently Asked Questions (FAQ for Conversion)
Q: Is the MKS BY150 compatible with all MKS mass flow controllers?
A: The BY150 supports standard MKS analog mass flow controllers requiring standard multi-channel DC power and 0-5V control signals. Always cross-reference your specific controller model requirements.
Q: Are these units brand new or refurbished?
A: Because MKS has discontinued this specific power supply line, available stock consists of verified New Surplus or factory-certified Refurbished units that have undergone complete load testing.
Q: Does the unit include connection cables?
A: Standard shipments include the base power supply unit. Specialized controller interface cables and power cords can be sourced separately based on your specific setup.
Q: What kind of warranty is provided?
A: All supplied BY150 units are backed by a comprehensive 12-month operational replacement warranty.
