Moeller 8307292002 CAN Bus Bridge Interface Module

Description

Product Introduction

The Moeller 8307292002 (CAN-BRIDGE) functions as a specialized CAN bus repeater and gateway module designed for Moeller (now Eaton) PS4 series PLC systems and modular automation racks. It provides galvanically isolated physical-layer coupling between independent CAN or CANopen network branches, allowing engineers to extend total fieldbus length and filter message traffic across machine sub-networks.

Engineered to solve baud rate matching and bus segment isolation challenges, the 8307292002 prevents localized noise on one CAN segment from bringing down the main supervisory network. Its combination of standard DB9 serial ports, removable spring-clamp terminal blocks, and DIP-switch-selectable bus terminations makes it a flexible tool for legacy industrial automation networks.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

When a CAN bus segment exceeds its maximum cable length or picks up ground loop noise from a large VFD drive, entire PLC networks throw bus-off faults. In automated packaging lines or material handling systems, a dropped CAN frame halts conveyors and stops process machines instantly. Installing or replacing a Moeller 8307292002 CAN-BRIDGE module isolates noisy field network branches while keeping central PLC polling loops running cleanly.

• Automated Packaging Lines – Connects auxiliary machine sections to the main PS4 PLC controller over long cable distances without signal degradation.
• Material Handling & Stacker Cranes – Provides galvanic bus isolation between moving vehicle CAN networks and stationary control cabinets.
• Legacy Moeller System Expansion – Acts as a protocol and baud rate bridge when integrating modern CANopen sensors into older Suconet/CAN network infrastructures.

Field Case Study

A beverage bottling facility running an older Moeller PS4-300 PLC platform experienced random machine stoppages traced to intermittent CAN bus error frames on a palettizer arm. Ground potential differences between the main cabinet and the remote I/O junction were corrupting signal levels. The site installed a replacement Moeller 8307292002 module to isolate the physical layers between the two cabinets. The onboard galvanic isolation eliminated the ground loop noise immediately, allowing the bottling line to resume continuous 24/7 production without further communication trips.

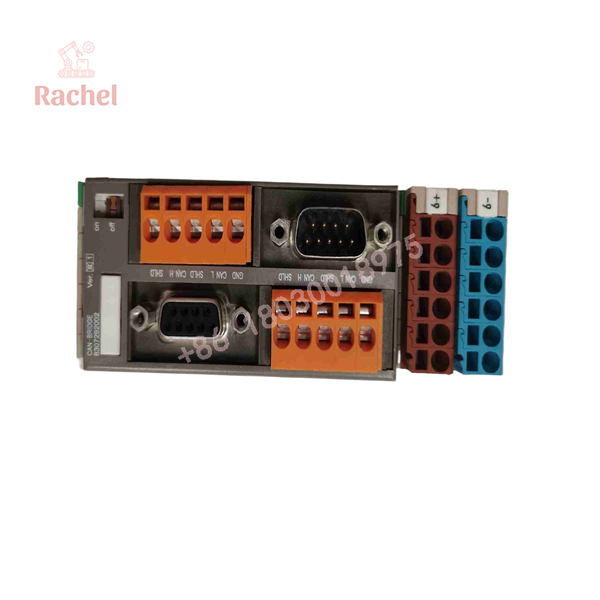

8307292002

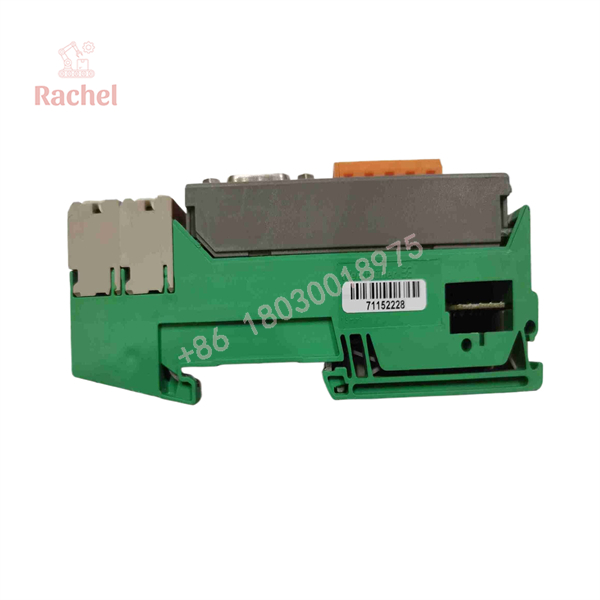

8307292002

Transparency SOP: Quality Assurance & Testing

We test our legacy communication hardware on actual PLC test racks before approving items for inventory.

1. Inbound Visual Inspection: Check plastic casing latches, DIN rail spring clips, terminal block pins, and D-Sub connector shells for physical wear or corrosion.
2. Power-On Self-Test: Mount on a 35mm DIN rail, apply 24V DC to the power terminals, and verify power LED diagnostics and boot sequencing.
3. Dual-Channel CAN Communication Test: Connect channel 1 and channel 2 to active CAN nodes on a test bench to confirm two-way packet filtering and signal conversion at 125 kbps and 500 kbps.
4. Thermal Monitoring: Run continuous packet translation routines for two hours while monitoring internal component heat dissipation.
5. ESD-Safe Packaging: Vacuum seal in static-shielding bags with moisture desiccant prior to packing in heavy-foam shipping boxes.

The Veteran’s Tech Trap Guide

• ⚠️ Check DIP Switch Termination Resistors: The 8307292002 features internal termination resistors selectable via front/side DIP switches. If this bridge is placed at the physical end of a CAN line, ensure the 120-ohm termination switch is ON. If it is in the middle of a trunk line, turn it OFF to prevent double-termination loading.
• ❗ Never Wire 24V DC Power Backwards: Double-check polarity on the bottom red/blue terminal connectors before energizing power. While reverse-polarity protection is present, repeated wiring mistakes on legacy field power supplies can damage internal DC-DC converter stages.
• ⚠️ Match Baud Rate Settings per Segment: The bridge allows different baud rates on Channel 1 and Channel 2, but you must ensure that all devices connected to Channel 1 match Channel 1’s setting, and all devices on Channel 2 match Channel 2. A single mismatched sensor baud rate will crash that entire side of the bridge.
• ❗ Verify Terminal Strip Seating: The orange and green removable terminal strips must be firmly pressed into their headers until they click. Loose terminal connections under cabinet vibration will create intermittent CAN_H / CAN_L shorts that trigger bus-off states.

Frequently Asked Questions (FAQ for Conversion)

Q: Is the Moeller 8307292002 still manufactured by Eaton/Moeller?

A: No. The PS4 series and its associated 8307292002 CAN-BRIDGE modules are discontinued legacy items. We supply clean, fully bench-tested surplus units to keep existing operating plants running.

Q: Can this module bridge two CAN networks running at different baud rates?

A: Yes. The CAN-BRIDGE buffers incoming messages and retransmits them, allowing you to interface a slow fieldbus segment (e.g., 50 kbps over a long distance) with a high-speed local control network (e.g., 500 kbps).

Q: Does the 8307292002 require specialized software to operate as a simple repeater?

A: Basic CAN repeater functionality and bus isolation operate out-of-the-box via hardware switch configurations. Advanced message filtering requires setting parameter DIP switches or configuration routines as detailed in the Moeller PS4 CAN manual.

Q: What warranty is included with this surplus bridge card?

A: All surplus and reconditioned 8307292002 units come with a 12-month operational replacement warranty covering functional failures under standard operating conditions.

Q: Why purchase tested surplus rather than upgrading the whole PLC system?

A: Complete PLC system migrations cost tens or hundreds of thousands of dollars in new hardware, rewiring, and downtime. Replacing a failed 8307292002 communication card gets your existing control system running in minutes for a fraction of the cost.
