Description
Product Introduction & Engineering Value
The MTL 8610-FT-NA provides the physical connection between plant field wiring and compatible PAC8000 I/O modules. Instead of routing individual field conductors through a separate terminal strip and then adding another wiring interface, the field terminal mounts directly onto the system carrier and accepts the field connections required by the I/O module.
For hazardous-area installations, the terminal type is part of the system design rather than simply a mechanical accessory. MTL identifies 8610-FT-NA as a non-arcing standard terminal for Zone 2 / Division 2 applications. Selecting the correct terminal therefore requires checking the exact I/O module, hazardous-area classification, and field-wiring method.
Technical Specifications
| Specification | 8610-FT-NA |
|---|---|
| Terminal type | Non-arcing, standard |
| Application | Zone 2 / Division 2 field wiring |
| Rated voltage | 250 VAC |
| Maximum current | 3 A per I/O channel |
| Conductor size | 0.14–2.5 mm² |
| Approx. dimensions | 42 W × 88 D × 39.5 H mm |
| Typical weight | 78 g, including tagging strip |
| Material | Modified Poly-Phenylene Oxide |
| Connection method | Screw-clamp |
| Tagging | Tag strip |
| Mounting | Carrier-mounted field terminal |
| Mechanical identification | Keyed for compatible I/O modules |
The dimensions and weight above are from the MTL field-terminal specification. The 42 × 88 × 39.5 mm dimensions apply to the standard group that includes 8610-FT-NA; the 16-channel variants have a greater height.
Electrical Rating
MTL specifies a 250 VAC rated voltage and 3 A maximum current per I/O channel for the field-terminal range. Conductor capacity is specified as 0.14–2.5 mm². These ratings should not be used to override the lower electrical limits of the specific I/O module installed above the terminal.

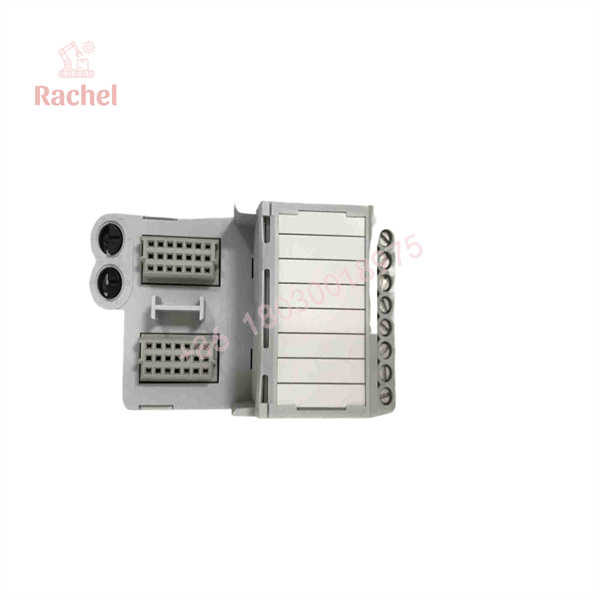

8610-FT-NA

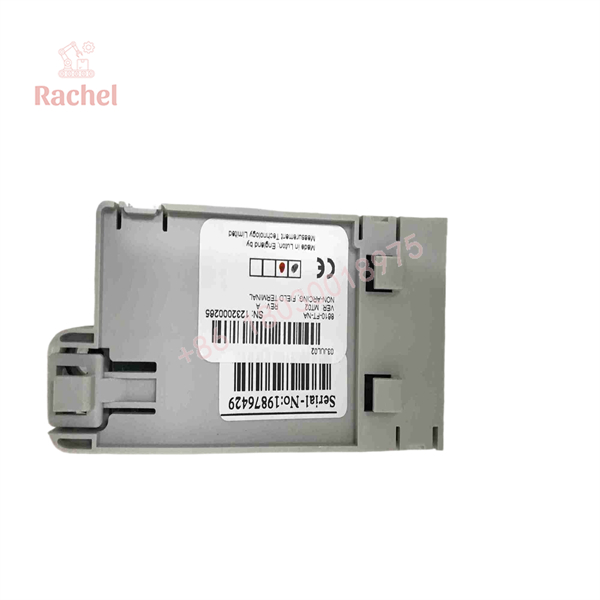

8610-FT-NA
Field Application & Trench Experience
A common maintenance scenario is replacement of a damaged PAC8000 field terminal while the carrier and I/O module remain in service. The terminal can be replaced without redesigning the entire field-wiring arrangement, but the replacement must match the I/O module’s required terminal type and keying.
One field issue worth checking before installation is terminal/module compatibility. The MTL 8000 system uses mechanically keyed field terminals to help prevent an incompatible terminal or I/O combination from being installed. The 8610-FT-NA should therefore be selected from the I/O module documentation rather than simply because its dimensions appear to match another terminal.
Typical Application Scenarios
- PAC8000 Zone 2 I/O: Non-arcing field termination for compatible I/O modules installed in Zone 2 hazardous locations.
- Class I, Division 2 installations: Field wiring applications requiring the appropriate non-arcing terminal arrangement.
- Legacy GE Intelligent Platforms PAC8000 systems: Older documentation identifies 8610-FT-NA as a compatible field terminal for selected PAC8000 I/O modules.
- Process control panels: Direct field termination where channel identification and controlled module mating are required.
QA & Testing SOP
For a New Surplus 8610-FT-NA, the primary inspection objective is to verify the exact terminal type and mechanical/electrical condition.
Recommended Incoming Inspection
- Verify the part marking as 8610-FT-NA.
- Confirm that the terminal is the non-arcing standard version, not the fused 8611-FT-FU.
- Inspect the screw-clamp terminals for damaged threads, stripped heads, corrosion, or contamination.
- Check the plastic housing for cracks, deformation, or impact damage.
- Inspect the carrier engagement and mechanical-keying features.
- Verify the tagging strip is present when supplied as a complete terminal assembly.
- Compare the terminal dimensions and physical configuration with the existing installation.
- Check conductor entry and terminal clamping condition before installation.
- Confirm compatibility against the exact PAC8000 I/O module part number.
- Where required, perform continuity checks after installation and verify each field circuit against the approved wiring drawing.
New Surplus note: New Surplus describes inventory condition. It should not automatically be represented as recently manufactured or factory-tested unless the individual unit has supporting documentation.
Veteran’s Tech Trap Guide
Trap 1 — Confusing 8610-FT-NA with 8611-FT-FU
These are not the same terminal. MTL lists 8610-FT-NA as the standard non-arcing version and 8611-FT-FU as the non-arcing fused version.
Pro tip: Check the complete part number before ordering. A similar-looking terminal with a different suffix can change the field-circuit protection arrangement.
Trap 2 — Treating the 250 VAC rating as the I/O module rating
The terminal’s 250 VAC rating does not mean every PAC8000 I/O module connected to it can operate at 250 VAC.
Pro tip: The I/O module’s electrical specification controls the actual circuit application. Treat the terminal rating as one component of the complete system specification.
Trap 3 — Ignoring hazardous-area classification
The 8610-FT-NA is documented for Zone 2 / Division 2 field-wiring applications. It should not be substituted for an intrinsically safe terminal simply because both parts mechanically fit the carrier. MTL separately identifies the 862x-FT-IS family for intrinsically safe field wiring.
Trap 4 — Selecting the terminal before identifying the I/O module
Different PAC8000 I/O modules specify different compatible field terminals. For example, PAC8000 documentation explicitly lists 8610-FT-NA for certain modules, while other modules require different terminal configurations.
FAQ
What is MTL 8610-FT-NA?
The MTL 8610-FT-NA is a non-arcing standard field terminal used with compatible MTL 8000 / PAC8000 I/O modules. It provides the field-wiring connection between plant circuits and the I/O module.
What does “NA” mean in 8610-FT-NA?
NA means Non-Arcing. MTL lists 8610-FT-NA as the standard non-arcing field terminal for Zone 2 / Division 2 applications.
Is 8610-FT-NA a fused terminal?
No. The 8610-FT-NA is the standard non-arcing version. The MTL 8000 range separately identifies 8611-FT-FU as the non-arcing fused terminal.
What voltage and current are specified for 8610-FT-NA?
The MTL field-terminal specification gives a 250 VAC rated voltage and 3 A maximum current per I/O channel. The specified conductor range is 0.14–2.5 mm².
Can 8610-FT-NA be used for Zone 1 or Division 1?
Not as a substitute for an intrinsically safe terminal. MTL distinguishes Zone 2 / Division 2 non-arcing terminals such as 8610-FT-NA from the 862x-FT-IS intrinsically safe terminal family used for Zone 0/1 or Division 1 applications.
How does 8610-FT-NA mount?
The field terminal mounts onto the PAC8000 carrier, with the compatible I/O module installed above it. The PAC8000 architecture uses mechanical keying to help prevent incorrect module/terminal combinations.
Is 8610-FT-NA compatible with every PAC8000 I/O module?
No. Compatibility is module-specific. The correct terminal should be confirmed from the I/O module’s documentation and key-code requirements rather than selected solely by physical fit.
What is the difference between 8610-FT-NA and 8617-FT-NI?
They serve different field-terminal configurations. 8610-FT-NA is the standard non-arcing terminal, while 8617-FT-NI is a dedicated non-incendive terminal for 16/30-channel digital-input applications. MTL lists them separately in its field-terminal range.
Can New Surplus 8610-FT-NA be supplied?
Yes, provided the specific unit’s condition and part marking are verified. For procurement, confirm the 8610-FT-NA marking, physical condition, terminal integrity, keying, and compatibility with the target I/O module before installation.
