National Instruments cFP-1808 8-Slot Compact FieldPoint Backplane

Description

Product Introduction & Engineering Value

Network drops on distributed sensor nodes can bring an entire monitoring loop to a sudden halt. The National Instruments cFP-1808 network controller keeps data flowing reliably across remote industrial setups by bridging modular I/O slots directly to standard Ethernet backbones.

Field engineers depend on this 8-slot chassis to manage deterministic data collection without dealing with complex proprietary fieldbus networks. Its robust isolation and flexible mounting options make it a staple for SCADA expansions, water treatment telemetry, and factory floor monitoring systems.

Technical Specifications

• Slot Capacity: 8 modular Compact FieldPoint I/O slot positions
• Network Interfaces: 10/100BaseTX Ethernet (RJ-45) and one RS-232 (DCE) serial port
• Input Voltage Range: 11 VDC to 30 VDC isolated power input
• Power Consumption: 6.1 W plus module power requirements (9 W max module power budget)
• Max Cable Length: 100 meters per Ethernet segment
• Safety Isolation Voltage: 250 Vrms continuous Measurement Category II (withstand up to 2300 Vrms for 5s)
• Supported Software: LabVIEW Real-Time Module, Measurement Studio, NI-FieldPoint driver suite
• Dimensions: 441 mm x 127 mm x 51 mm (approx. 17.36 in x 5.00 in)
• Operating Temperature: -40°C to 70°C (-40°F to 158°F)

Field Application & The “Trench” Experience

A remote natural gas compressor station experienced intermittent SCADA dropouts due to a failing communication backplane on a legacy Compact FieldPoint rack. Technicians needed a drop-in replacement that would communicate seamlessly with their existing LabVIEW application without requiring a ground-up control code rewrite. Swapping in a verified surplus National Instruments cFP-1808 restored network communication and packet integrity immediately, saving days of costly downtime in the field.

Specific Niche Application Scenarios:

• Pipeline Cathodic Protection Monitoring: Gathering distributed DC voltage readings across isolated remote terminal units (RTUs).
• Wind Turbine Tower Telemetry: Aggregating vibration and temperature signals in space-constrained nacelle control cabinets.
• Wastewater Treatment Pump Skids: Interfacing localized digital and analog I/O back to a central plant Ethernet control room.

Transparency SOP: QA & Testing

1. Visual Backplane Inspection: Examine all 8 internal module connector pins for bending, oxidation, or thermal discoloration under magnification.
2. Power Rail Isolation Test: Verify electrical separation across the 11–30 VDC power terminals and ground barrier using a calibrated digital multimeter.
3. Ethernet & Serial Port Verification: Connect the unit to a diagnostic test bench, verifying packet delivery over the 10/100 Mbps RJ-45 port and confirming data response across the RS-232 interface.
4. Thermal Chamber Stress Run: Subject the backplane to a 48-hour operational burn-in test at elevated cabinet temperatures to weed out weak components.
5. Firmware & IP Handshake Check: Test network stack responsiveness, IP assignment, and Measurement & Automation Explorer (MAX) recognition cycles.

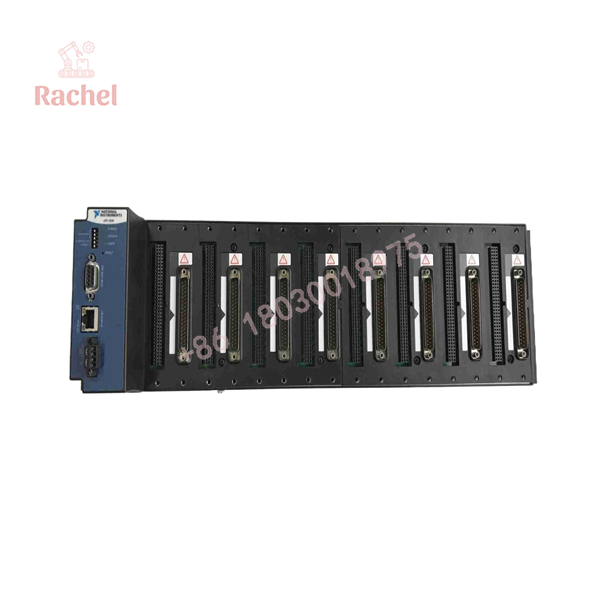

cFP-1808

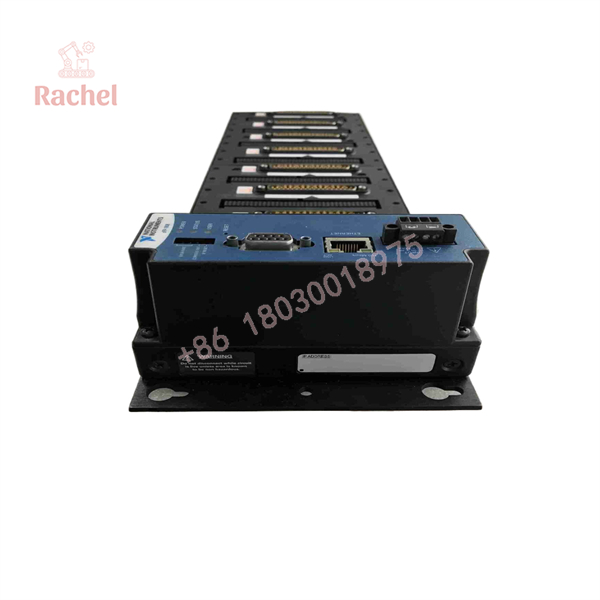

cFP-1808

The Veteran’s Tech Trap Guide

⚠️ PRO TIP: Pay close attention to your DIP switch settings if you are configuring the serial baud rate or resetting IP addresses. Changing switch positions while the controller is powered on will not take effect until you cycle the power input off and back on.

Warning: Never plug or unplug individual I/O modules while the backplane main power terminal is energized. Doing so can induce voltage transients across the bus connectors, risking permanent damage to the module’s internal logic circuitry.

Dynamic FAQ

1. Is this National Instruments cFP-1808 unit brand new or surplus?

   We stock certified New Surplus and fully bench-tested hardware, ready for immediate deployment.

2. What warranty comes with this backplane?

   Every cFP-1808 unit is backed by our comprehensive 12-month replacement warranty.

3. Does this controller require special configuration software?

   Yes, configuration and network setup are typically handled through NI Measurement & Automation Explorer (MAX) running alongside the LabVIEW environment.

4. Can I use standard CAT5/CAT6 cables with the Ethernet port?

   Yes, the 10/100BaseTX port supports standard copper Ethernet cabling up to 100 meters per segment.

5. How many I/O modules can be attached to this chassis?

   The cFP-1808 features exactly 8 slots to accommodate any mix of compatible Compact FieldPoint I/O modules.
