National Instruments cFP-AO-200 8-Channel Analog Output Module

Description

Product Introduction & Engineering Value

When analog control loops start drifting or responding sluggishly, field instrumentation can quickly fall out of sync. The National Instruments cFP-AO-200 analog output module provides precise signal generation across eight independent channels, eliminating command errors in distributed control setups.

Engineered for seamless integration with Compact FieldPoint backplanes, this module handles voltage and current outputs simultaneously without complex hardware reconfigurations. Engineers rely on its reliable channel isolation to keep industrial valves, variable frequency drives, and proportional regulators operating within tight tolerances.

Technical Specifications

• Number of Channels: 8 independent analog output channels
• D/A Resolution: 12-bit conversion architecture
• Output Voltage Ranges: \pm 10 V, 0 to 5 V, 1 to 5 V
• Output Current Ranges: 0 to 20 mA, 4 to 20 mA
• Update Rate: Up to 1.6 ms total bank update time
• Isolation Voltage: 250 Vrms continuous channel-to-earth ground isolation
• Accuracy: \pm 0.1\% of full-scale range at 25^\circ C
• Power Consumption: 1.3 W max from the backplane bus
• Operating Temperature Range: -40^\circ C to 70^\circ C (-40^\circ F to 158^\circ F)

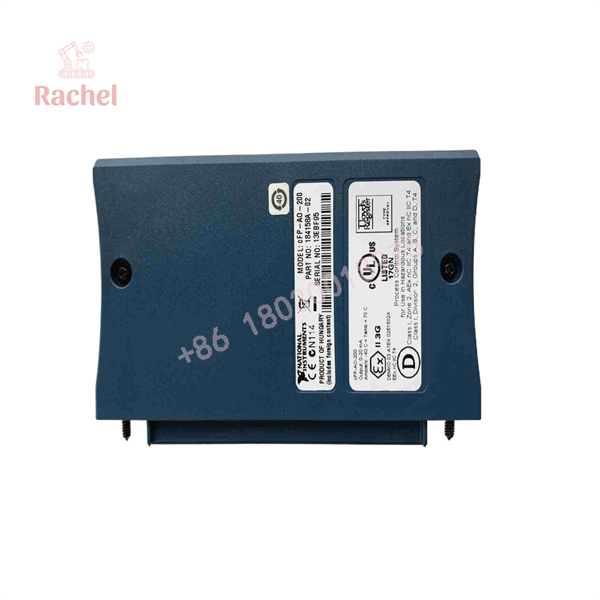

cFP-AO-200

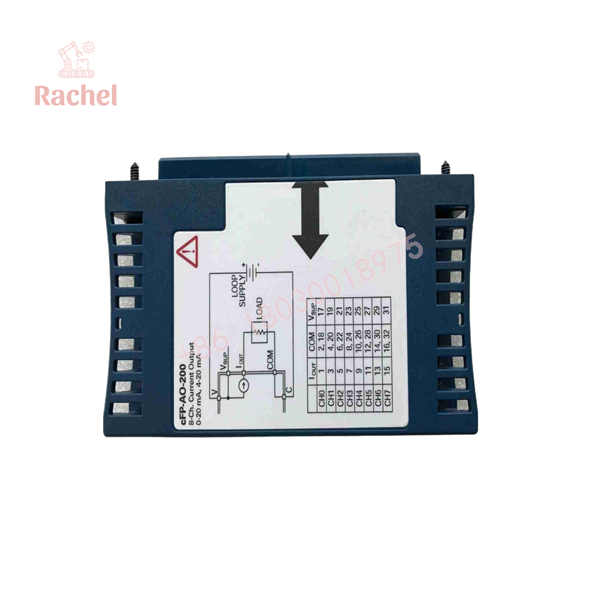

cFP-AO-200

Field Application & The “Trench” Experience

A municipal wastewater treatment facility experienced an unexpected operational halt when a legacy analog output module driving the primary chemical metering pumps suffered a DAC failure. The local chlorine dosage loops locked up, risking effluent compliance limits. Sourcing an exact factory-direct module through standard channels threatened a two-week delay. The maintenance crew grabbed a pre-tested surplus National Instruments cFP-AO-200 from the plant shelf, slotted it into the cFP-1808 backplane, and restored precise 4-20mA pump control within fifteen minutes.

Specific Niche Application Scenarios:

• Proportional Valve Actuator Control: Driving precise 4-20mA signals into hydraulic servo valves on stamping presses.
• Inverter Speed References: Supplying stable 0-10V frequency reference commands to variable speed industrial blowers.
• Test Stand Load Cell Simulation: Generating calibrated analog stimulus values for automated component validation test rigs.

Transparency SOP: QA & Testing

1. Terminal Block & Pin Inspection: Check all 30-pin backplane connector pins under high magnification for bending, oxidation, or residue.
2. Cold Resistance & Isolation Audit: Measure electrical isolation barriers across input power rails and ground terminals using a calibrated digital multimeter.
3. Multi-Channel Calibration Run: Place the module on a test rack running LabVIEW, forcing exact step inputs (0mA, 4mA, 12mA, 20mA and \pm 10V) while logging output linearity with a precision DMM.
4. Thermal Chamber Burn-In: Subject the hardware to a 24-hour operational cycle inside a 50^\circ C thermal cabinet to eliminate infant mortality risks.
5. Bus Communication Check: Verify correct handshaking and packet recognition across the Compact FieldPoint network bus.

The Veteran’s Tech Trap Guide

⚠️ PRO TIP: Always configure your software output states to hold the last known value or transition safely to zero during a communication timeout. Unintended default states can cause attached actuators to jump unexpectedly when the module initializes.

Warning: Never exceed the maximum compliance voltage limits when wiring current-loop actuators to this module. Forcing external power supplies into the output channels can damage internal driver circuits and compromise channel isolation.

Dynamic FAQ

1. Is this National Instruments cFP-AO-200 module brand new or surplus?

   We provide verified New Surplus and fully bench-tested hardware, backed by complete functional inspection reports.

2. What warranty is included with this purchase?

   Every cFP-AO-200 module comes standard with our comprehensive 12-month replacement warranty.

3. Can this module handle voltage and current outputs at the same time?

   Yes, the module supports both voltage (\pm 10V) and current (0-20mA) configurations across its channels depending on your wiring setup and software configuration.

4. Is this module hot-swappable on the FieldPoint backplane?

   Yes, Compact FieldPoint modules are designed to be inserted or removed from powered backplanes without requiring a complete system shutdown.

5. What software environment is required to configure this module?

   Configuration and programming are typically managed via NI LabVIEW and Measurement & Automation Explorer (MAX) utilizing the FieldPoint driver suite.
