NI PCI-6230 Bank-Isolated Multifunction DAQ Card

Description

Product Introduction

The National Instruments PCI-6230 is an M-Series multifunction data acquisition card engineered specifically for applications requiring galvanically isolated measurements. Incorporating NI’s proprietary NI-PGIA 2 amplifier technology alongside 60 VDC continuous bank isolation (1000 Vrms withstand for 5 seconds), the PCI-6230 protects host computer systems and sensitive electronics from ground loops, high common-mode voltages, and destructive electrical spikes.

Unlike non-isolated DAQ cards that suffer from noise floor degradation and signal distortion when tied to different earth grounds, the PCI-6230 maintains high 16-bit measurement fidelity across 8 differential analog input channels operating at up to 250 kS/s aggregate sampling rate. Paired with isolated analog and digital outputs, it is an ideal hardware interface for industrial control loops, automated test equipment (ATE), and harsh factory environments.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Picture this: It’s 11:00 PM on a manufacturing line install. An automated test rack measuring heavy motor-drive inverter outputs keeps logging random ±2V DC offsets and corrupted sensor spikes on its analog input channels. The root cause? A massive ground loop between the variable frequency drive (VFD) chassis earth and the host PC ground rail. Installing a standard non-isolated card risks blowing the host PC motherboard’s PCIe/PCI bridge chipset.

To be honest, situations like this are precisely why control engineers specify the NI PCI-6230. By isolating the measurement ground plane from the PC system ground, ground loop currents are eliminated, preserving 16-bit measurement accuracy even in electrically noisy industrial environments.

• Industrial Process Control: Interfacing directly with 4-20mA current loops, 0-10V industrial transmitters, and high-voltage actuators.
• Motor & VFD Test Benches: Safely acquiring voltage and current waveforms from power electronics without ground loop interference.
• Automated Test Equipment (ATE): Providing isolated stimulus and response signals in production test stands for automotive and aerospace components.
• High-Noise Factory Systems: Monitoring sensor networks located across long cable distances where potential differences between earth grounds exist.

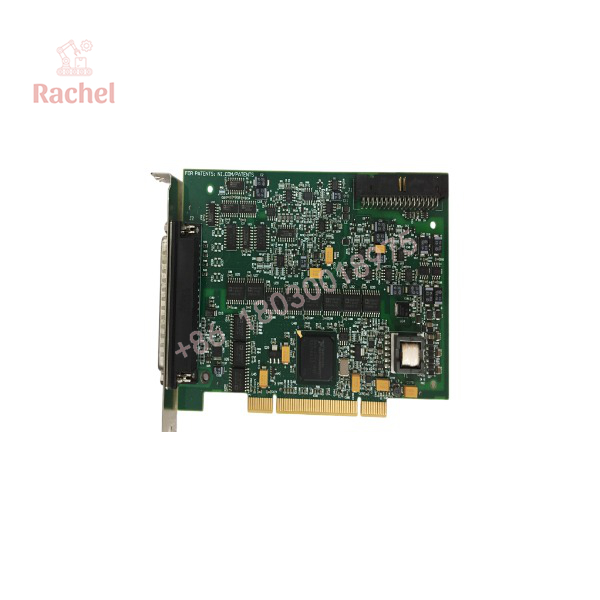

PCI-6230

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on live NI test chassis. Every new surplus or refurbished NI PCI-6230 DAQ card undergoes a mandatory 5-step engineering verification SOP:

1. Inbound Visual & Component Inspection: Microscopic audit of the 37-pin D-Sub connector, gold-finger PCI edge contacts, and surface-mount isolation transformers for physical degradation.
2. Bus Enumeration & Identification: Installing the card into an IPC test system to verify clean detection in Windows Device Manager and NI Measurement & Automation Explorer (MAX).
3. Calibrated Signal Generator AI Testing: Injecting precision DC voltages and sine waveforms from a calibrated signal source across all 8 AI channels to verify 16-bit ADC linearity and gain calibration.
4. AO & DIO Loopback Stress Test: Outputting DC voltage steps on AO channels and cycling isolated DIO channels under load continuously for 2 hours to confirm stable drive currents.
5. Clean & ESD Packaging: Resetting internal EEPROM calibration flags to factory default settings, fitting protective D-Sub dust caps, and sealing the card inside an ESD shielding pouch with custom foam packaging.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

If you’re integrating or replacing an NI PCI-6230 card in an active rack, watch out for these technical traps:

• ⚠️ Connector Cable Mismatch (37-Pin vs. 68-Pin): Unlike many standard M-Series DAQ cards that use 68-pin VHDCI connectors, the PCI-6230 utilizes a 37-pin D-Sub connector! Ensure your field wiring accessories (e.g., NI SH37F-37M cable and CB-37T terminal block) match this physical interface.
• ❗ External Digital I/O Power Requirement: The isolated digital inputs and outputs on the PCI-6230 require an external power supply (Vcc = 5V to 30V DC) connected to the digital bank power pins to operate. Forgetting this external supply will leave digital lines completely unresponsive.
• ⚠️ Bank Isolation Limits: The PCI-6230 features bank isolation, meaning channels share an isolated ground plane separate from the PC, but individual channels within the bank share that same isolated ground. Do NOT connect two signals with high differential voltages between their respective negative terminals to different channels on the same card!
• ❗ Legacy PCI Slot Compatibility: Ensure your host PC motherboard features a native 32-bit PCI slot (supporting 3.3V/5V universal signaling). Avoid cheap PCIe-to-PCI bridge adapter cards, as they frequently drop NI-DAQmx hardware timing interrupts under high sampling speeds.

Frequently Asked Questions (FAQ)

Q: Can the PCI-6230 be programmed using modern versions of LabVIEW?

A: Yes. The PCI-6230 is supported by the NI-DAQmx driver framework across LabVIEW, ANSI C, C#, and MATLAB on supported Windows operating systems.

Q: What terminal block is recommended for the PCI-6230?

A: The most common terminal blocks for the 37-pin connector are the NI CB-37T (screw terminals with isothermal block for thermocouples) or the general-purpose NI CB-37FH.

Q: Does the PCI-6230 support hardware-timed analog outputs?

A: Yes. The card features two 32-bit onboard counter/timers that drive hardware-timed analog output waveforms up to 500 kS/s.

Q: What is the difference between the PCI-6230 and non-isolated cards like the PCI-6221?

A: The PCI-6230 includes onboard galvanic bank isolation (60 VDC continuous / 1000 Vrms channel-to-bus), uses a 37-pin D-Sub connector instead of a 68-pin VHDCI, and is specifically tailored for high-noise industrial applications.

Q: What warranty coverage comes with this module?

A: Every NI PCI-6230 unit—whether New Surplus or OEM Refurbished—comes backed by our full 12-Month Replacement Warranty. If a hardware fault occurs within 365 days under standard operating conditions, we replace it directly from stock.
