Description
Product Introduction
The National Instruments SCXI-1163 is a 32-channel optically isolated digital input module designed to expand the digital acquisition capabilities of standard PCI, PXI, or USB DAQ systems. Operating within an SCXI chassis, it interfaces directly with industrial switches, relays, proximity sensors, and digital logic lines, isolating ground potentials before passing digital states back to the host system.
Unlike un-isolated digital I/O cards that risk blowing out host PCI/PXI backplanes when exposed to ground loops or high-voltage inductive spikes, the SCXI-1163 features a continuous 450 Vrms channel-to-bus optical isolation barrier (and channel-to-channel isolation depending on terminal configuration). It scales field voltages up to 24 VDC down to TTL-compatible logic levels, giving test engineers deterministic digital monitoring without noise corruption.
Key Technical Specifications
| Parameter | Specification |
| Compatible Platform | NI SCXI Chassis (SCXI-1000, SCXI-1001, etc.) |
| Number of Inputs | 32 Optically Isolated Digital Channels |
| Input Type | Current-sinking / Voltage-sensing digital inputs |
| Input Voltage Range | 0 to 24 VDC (TTL/CMOS, 12V, and 24V industrial logic compatible) |
| Logic Thresholds | Low (OFF): < 1.0 VDC |
| Galvanic Isolation | 450 Vrms continuous breakdown isolation (Channel-to-Bus) |
| Maximum Propagation Delay | 100 µs (typical turn-on / turn-off time) |
| Input Current Sink | ~2.5 mA at 5 VDC |
| I/O Connector | 96-pin male DIN front header (interfaces to SCXI terminal blocks) |
| Operating Temperature | 32°F to 122°F (0°C to 50°C) |
Application Scenarios & The “Trench” Experience
It’s 2:00 AM on a automated production line validation run. An un-isolated 24V relay coil drops, inducing an extreme inductive back-EMF spike down the digital sense wire. On standard test setups, that spike punches straight through the host controller, killing the digital card and locking up the master test script. Because this rack used an optically isolated SCXI-1163 card, the internal optical barrier absorbed the surge, keeping the main PXI controller safe. You don’t need to rebuild the host PC—you just need a drop-in SCXI-1163 replacement card to get the digital interlock monitoring online again.
- Factory Automation ATE Racks – PLC & Relay State Monitoring – Safely monitors 24V industrial logic signals, limit switches, and safety interlocks across 32 isolated channels.
- Automotive Test Benches – Vehicle Electrical System Validation – Captures digital status lines and relay actuation signals from 12V and 24V automotive harnesses without noise interference.
- Power Plant Auxiliaries – Substation Status Logging – Logs contact closure events from field breakers subject to high common-mode ground potential variations.
Field Case Study:
An aerospace manufacturer in Kansas experienced a digital input channel failure on an SCXI-1163 card embedded inside an automated harness testing fixture. The system relied on legacy NI-DAQ drivers integrated into a validated LabVIEW 6.1 executable. Upgrading to a CompactDAQ setup would require a full software migration and re-validation sign-off costing $35,000. We delivered a verified surplus SCXI-1163 card via overnight air. The maintenance team slotted the card into Slot 1 of the SCXI chassis, attached the existing SCXI-1326 terminal block, verified input state switching in NI MAX, and brought the fixture back into full production within 20 minutes of receipt.

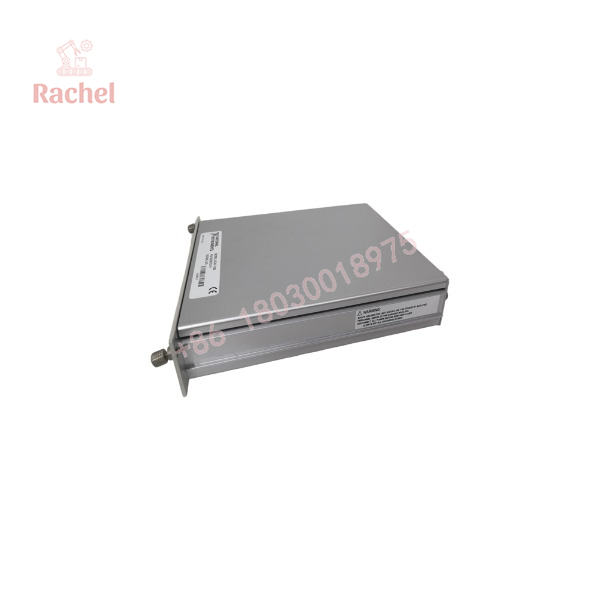

SCXI-1163

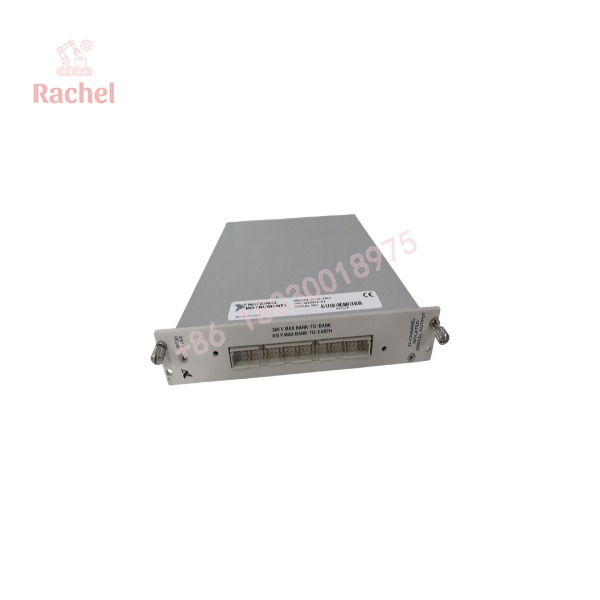

SCXI-1163
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual NI SCXI chassis hardware.
- Inbound Physical Inspection: Thorough inspection of the 96-pin DIN front connector for bent or corroded pins, verification of PCB trace health, and check for signs of overheated input resistors.
- Chassis Initialization & Bus Handshake: Module is mounted into an NI SCXI-1000 chassis linked to a PXI host controller to verify SCXI backplane bus communications and device ID enumeration in NI MAX.
- 32-Channel Isolation & Voltage Threshold Sweep: All 32 digital input channels are independently driven with 5V, 12V, and 24V test signals while monitoring logic bit-state transitions to ensure 100% Optocoupler function and zero channel leakage.
- Hi-Pot / Isolation Isolation Check: Verification of the optical isolation barrier between field terminal inputs and the backplane chassis ground.
- Anti-Static & Secure Packaging: Complete ESD clearing, sealing in anti-static shielding bags, and custom high-density foam wrapping before dispatch.
The Veteran’s Tech Trap Guide
⚠️ Observe Input Current Limits (Don’t Exceed 24 VDC):
While the SCXI-1163 handles up to 24 VDC logic comfortably, feeding raw 48 VDC or unregulated AC lines into the input optocouplers will overheat the internal current-limiting resistors and permanently kill the channel.
❗ Mind the Terminal Block Selection (SCXI-1326 vs SCXI-1300):
Always match your module with the correct SCXI terminal block. The SCXI-1326 high-voltage screw terminal block is specifically designed for isolated digital input modules like the SCXI-1163, providing proper creepage and clearance distances for isolated wiring.
⚠️ Pay Attention to Common-Ground Grouping:
Check your terminal block wiring. Depending on how your SCXI terminal block is jumpered, digital inputs may share common return paths. Wiring different ground potentials into shared common terminals will defeat channel-to-channel isolation and create ground loops.
❗ Don’t Expect High-Speed Counter Rates:
The optocouplers on the SCXI-1163 are optimized for isolation and voltage scaling, giving propagation delays around 100 µs. If you need to count high-speed optical encoder pulses or kHz-range frequency signals, this is the wrong card—use a high-speed PXI counter/timer card instead.
Frequently Asked Questions
Q: What is the main difference between the SCXI-1163 and the SCXI-1162 / SCXI-1162HV?
A: The SCXI-1163 provides 32 optically isolated digital input channels. The SCXI-1162 provides 32 non-isolated or opto-isolated inputs depending on revision, while the SCXI-1162HV is rated specifically for higher AC/DC input threshold voltages (up to 240V).
Q: Can I hot-swap the SCXI-1163 card while the SCXI chassis is powered on?
A: No. SCXI modules do not support live insertion or removal (hot-swapping). Always power down the SCXI chassis and host system controller before installing or removing the card to prevent backplane electrical arcing or system crashes.
Q: Does the SCXI-1163 require an external power supply to power the input optocouplers?
A: The field-side digital signals themselves drive the internal optocoupler LEDs (sinking ~2.5 mA at 5V up to ~12 mA at 24V). The backplane side of the optocoupler is powered directly from the internal SCXI chassis backplane power supply.
Q: Is the SCXI-1163 compatible with modern 64-bit Windows environments?
A: Yes, provided your host PXI/PCI DAQ card and chassis controller interface are supported by NI-DAQmx on that OS version. Check NI’s driver compatibility matrix for legacy SCXI hardware before upgrading host operating systems.
Q: Why buy new surplus SCXI-1163 modules instead of migrating to CompactDAQ?
A: Migrating from an SCXI architecture to CompactDAQ or C Series modules requires replacing chassis, buying new signal modules, rewiring custom field harnesses, and rewriting validated test executive code. Purchasing a surplus SCXI-1163 restores your operational test rack immediately with zero software or mechanical re-engineering overhead.
