Description
Product Introduction & Engineering Value
The PCI-6518 is designed for applications where ordinary TTL-level digital I/O is not enough. Its isolated banks, 30 V capability, programmable power-up states, and watchdog functionality make it suitable for industrial control and manufacturing test equipment.
For legacy test stations and industrial PCs, the important point is architectural compatibility. This is a PCI device, not PCI Express. If the original system depends on a PCI-6518, replacing it with a different bus or output architecture can require hardware and software changes.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | National Instruments |
| Model | PCI-6518 |
| NI Part Number | 779084-01 |
| Device Type | Industrial Digital I/O |
| Bus | PCI |
| Total Digital Channels | 32 |
| Digital Inputs | 16 |
| Digital Outputs | 16 |
| Output Type | Sourcing |
| Input Voltage Range | −30 V to +30 V |
| Output Voltage Range | −30 V to +30 V |
| Isolation | Bank-isolated |
| Watchdog | Digital I/O watchdog |
| Power-Up States | Programmable |
| Digital Filtering | Supported |
| Connector | D-SUB |
| Board Dimensions | 14.1 × 11.4 cm (5.54 × 4.47 in.) |
NI’s current product page identifies the PCI-6518 as a 32-channel device with 16 digital inputs and 16 digital outputs. The NI 651x specifications list the PCI board dimensions and additional electrical characteristics.
The output-current specification deserves particular attention. For the PCI-6518, NI specifies derated values depending on ambient temperature and whether all eight lines in a port are being used. At 25°C, the published limit is 75 mA per line when all eight lines in a port are active, or 350 mA for a single active line per port.
Field Application & the “Trench” Experience
A manufacturing test station used an industrial PC to control fixture solenoids, monitor interlocks, and acquire discrete status signals from a production assembly. The original system was built around an NI PCI-6518, and the application software had already been validated against its I/O behavior.
When the PCI card failed, the maintenance team initially considered migrating to a newer interface. That created an unexpected problem: the replacement had a different host-bus architecture and different output characteristics. The faster solution was to source a tested PCI-6518 and restore the original configuration.
After installation, engineers checked PCI device recognition, input state detection, output switching, watchdog behavior, and the connected fixture loads before returning the station to production.
Specific application scenarios
- Automated manufacturing test fixtures
- Industrial machine interlock monitoring
- Discrete actuator and solenoid control
- Production equipment status monitoring
- Legacy LabVIEW-based industrial PCs
- Automated functional test systems
NI specifically identifies the PCI-6518 for industrial control and manufacturing test applications.

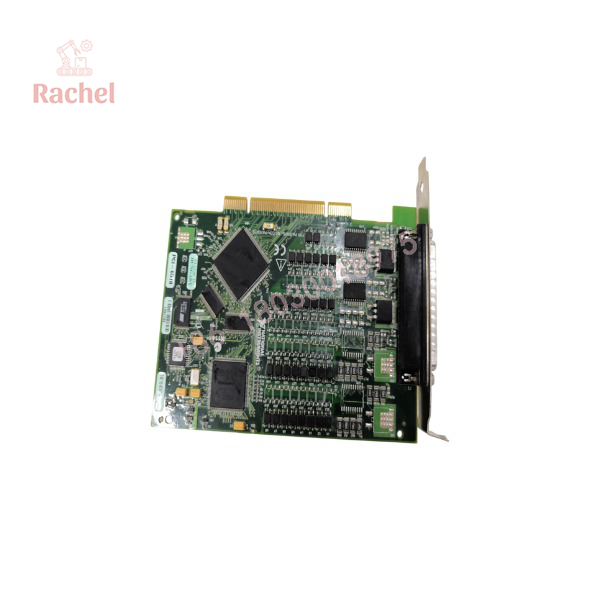

PCI-6518

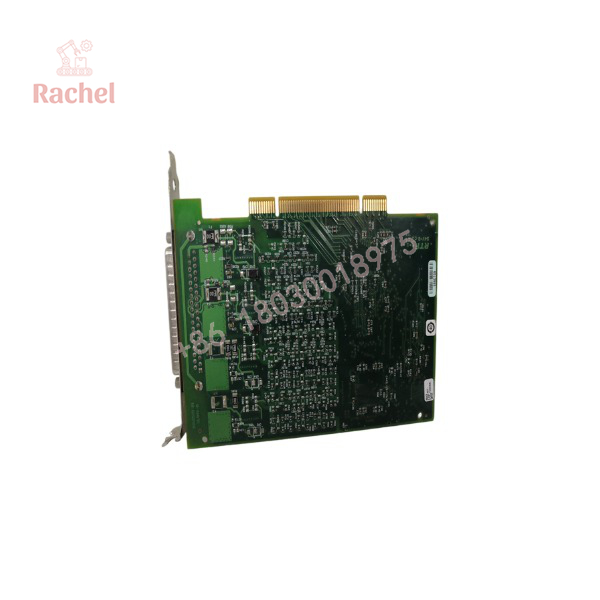

PCI-6518
Transparency SOP: QA & Testing
For a used or refurbished PCI-6518, functional testing should include the actual I/O behavior rather than merely confirming that the computer recognizes the card.
Inspection
- Verify the exact PCI-6518 / 779084-01 identification.
- Inspect the PCI edge connector.
- Check the D-SUB interface.
- Look for damaged components, contamination, or corrosion.
Electrical testing
- Verify digital input response across the specified voltage range.
- Test sourcing output operation with an appropriate load.
- Check bank isolation.
- Confirm programmable power-up behavior.
- Exercise the watchdog function.
Load testing
Pay particular attention to output loading. NI states that the 651x output-current limits are temperature-dependent and that exceeding the specified limits can damage the device. Revision C boards also incorporate overcurrent protection.
New Surplus units should be checked for storage condition and original identification. Refurbished units should include documented I/O testing and warranty coverage.
The Veteran’s Tech Trap Guide
⚠️ Trap 1: Confusing PCI-6518 with PCI-6519
These models are closely related, but their output configurations differ. The PCI-6518 uses sourcing outputs, while the PCI-6519 is the corresponding sinking-output device.
PRO TIP: Match the exact suffix before ordering.
⚠️ Trap 2: Driving a load above the permitted current
The PCI-6518 is not a general-purpose high-current relay driver. Its allowable output current depends on temperature and the number of simultaneously loaded lines.
Do not size a replacement based solely on the nominal 30 V rating. Check the current requirement of every connected load.
⚠️ Trap 3: Assuming PCI means PCI Express
The PCI-6518 uses a PCI bus. NI’s current documentation continues to identify PCI-6518 as a PCI device.
A modern computer containing only PCIe slots cannot be assumed compatible.
Dynamic FAQ
Q1. What is the NI PCI-6518 used for?
The PCI-6518 is a 32-channel industrial digital I/O board intended for industrial control and manufacturing test applications.
Q2. How many inputs and outputs does the PCI-6518 provide?
It provides 16 digital inputs and 16 sourcing digital outputs.
Q3. What voltage can the PCI-6518 handle?
NI specifies an input voltage range of −30 V to +30 V and an output voltage range of −30 V to +30 V.
Q4. Does the PCI-6518 have output protection?
Yes. NI documents overcurrent protection on Revision C 651x boards and specifies temperature-dependent output-current limits.
Q5. What should I verify before buying a replacement PCI-6518?
Confirm the exact , NI part number 779084-01, PCI host-bus requirement, 16-in/16-out configuration, sourcing output requirement, and connected-load current requirements.
Q6. Are New Surplus PCI-6518 boards suitable for spare inventory?
They can be, provided the board is correctly identified and function-tested. For production test systems, request documentation covering digital I/O testing, output-load verification, and warranty terms. NI currently lists the PCI-6518 as an active product.
