When measurement systems fail, the problem is often not the DAQ controller itself. Noise, ground loops, and high-voltage field signals can compromise data quality long before the acquisition hardware reports an error. The SCXI-1125 addresses these issues by combining isolated inputs, programmable gain, and configurable filtering in a dedicated signal-conditioning module.
For engineers maintaining legacy NI SCXI test platforms, the SCXI-1125 remains useful because it preserves existing measurement architectures. Replacing this module requires attention to terminal blocks, calibration data, channel configuration, and the original acquisition software environment.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | National Instruments |
| Model | SCXI-1125 |
| Product Type | Isolated analog input module |
| Platform | NI SCXI chassis |
| Input Channels | 8 differential channels |
| Input Range | ±2.5 mVDC to ±5 VDC |
| Isolation Voltage | 300 Vrms channel-to-channel and channel-to-earth |
| Programmable Gain | 1, 2, 5, 10, 20, 50, 100, 200, 250, 500, 1000, 2000 |
| Filter Options | 4 Hz or 10 kHz programmable low-pass filtering |
| Output Range | ±5 V |
| Input Impedance | >1 GΩ typical |
| Communication Method | Multiplexed or parallel output through SCXI chassis |
| Power Supply | +5 V, ±18.5 V rails |
The SCXI-1125 provides eight isolated differential analog input channels with 12 programmable gain settings and selectable filtering. Each channel can handle signal conditioning tasks for voltage, current, thermocouple, and millivolt measurements.
Field Application & The “Trench” Experience
A turbine test facility operating an older NI SCXI-based monitoring rack began seeing unstable temperature and vibration measurement data. The DAQ controller appeared healthy, but several measurement channels showed excessive noise during high-power equipment operation.
The maintenance team traced the issue to a degraded SCXI-1125 input conditioning module. During a planned shutdown, technicians installed a verified spare module, restored channel gain settings, confirmed terminal block compatibility, and repeated calibration checks.
The result was stable measurement performance without replacing the entire data acquisition platform.
Common application scenarios:
- Motor test benches measuring voltage and current feedback signals
- Thermal testing systems using thermocouples and low-level voltage signals
- Aerospace component validation rigs requiring isolated measurements
- Industrial research laboratories using legacy NI SCXI systems

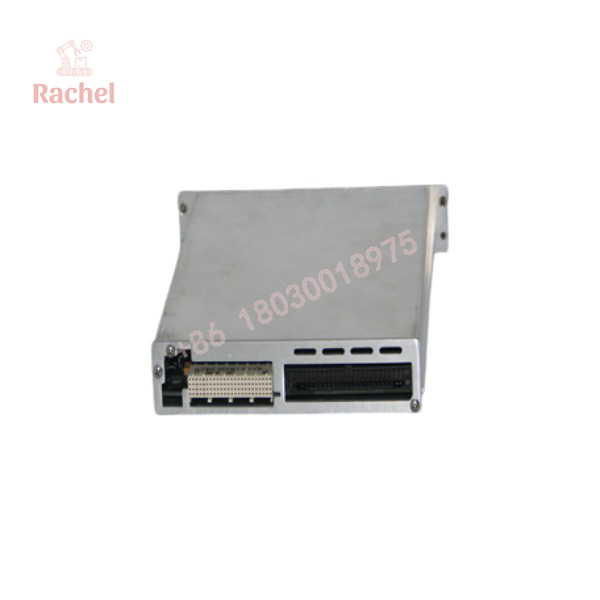

SCXI-1125

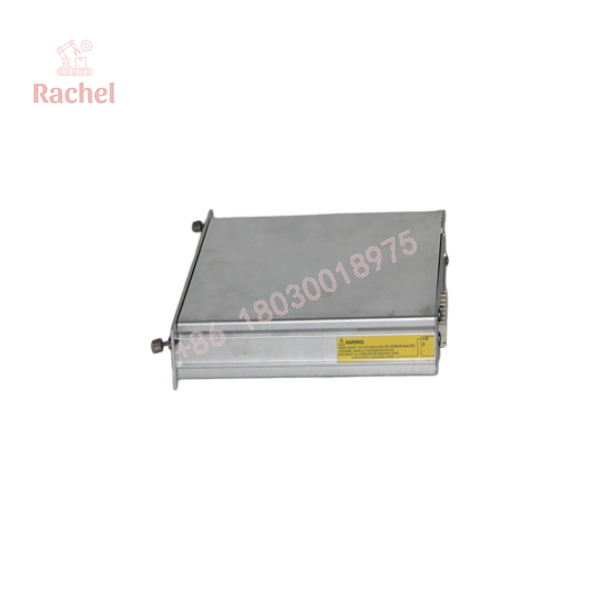

SCXI-1125
Transparency SOP: QA & Testing
A SCXI-1125 should be evaluated as a measurement instrument, not just as an electronic board.
Testing procedure:
- Physical inspection
- Verify NI model identification
- Inspect SCXI connector pins
- Check terminal block interface condition
- Look for corrosion or contamination
- Electrical verification
- Confirm chassis recognition
- Test isolated input channels
- Verify programmable gain operation
- Check filter switching functions
- Measurement validation
- Apply known reference voltages
- Compare channel accuracy
- Verify noise performance
- Confirm calibration response
A module that powers up is only the starting point. Measurement hardware requires signal verification before being placed into a production test system.
The Veteran’s Tech Trap Guide
⚠️ Terminal block selection matters
The SCXI-1125 depends on compatible terminal blocks such as SCXI-1305, SCXI-1313A, or TBX-series accessories. Using the wrong terminal block can change voltage ranges and protection capability.
⚠️ Do not ignore calibration constants
The module stores software correction constants for gain and offset in onboard EEPROM. Replacing a module may require calibration verification before returning it to precision measurement service.
PRO TIP: Save the original NI-DAQ configuration before removing the module. Channel mapping errors are common during SCXI maintenance.
⚠️ Isolation ratings have limits
The SCXI-1125 provides up to 300 Vrms working isolation, but it is not intended for every high-voltage measurement category. Confirm the measurement environment before connection.
Dynamic FAQ
Q1. What is the NI SCXI-1125 used for?
The SCXI-1125 is an isolated analog input conditioning module used with NI SCXI data acquisition systems for voltage, current, thermocouple, and millivolt signal measurement.
Q2. How many input channels does the SCXI-1125 provide?
It provides eight isolated differential analog input channels.
Q3. What gain settings are available on the SCXI-1125?
The module supports 12 programmable gain settings ranging from 1 to 2000.
Q4. Is the SCXI-1125 still available from NI?
The SCXI-1125 is no longer available as a current NI product. Remaining supply is generally through surplus inventory and refurbished test equipment channels.
Q5. What should be checked before replacing an SCXI-1125?
Verify:
- SCXI chassis compatibility
- Terminal block model
- NI-DAQ software support
- Channel configuration
- Calibration requirements
Q6. Are refurbished SCXI-1125 modules tested?
A qualified refurbished unit should include chassis recognition testing, input channel verification, gain checks, filter testing, and measurement validation.
Q7. What warranty applies to a replacement SCXI-1125?
Warranty depends on supplier testing standards and product condition. Industrial test equipment suppliers typically provide limited functional warranty coverage for tested surplus or refurbished modules.
