PILZ 301120 Input Output Module

Product Introduction & Engineering Value

The control cabinet is only as reliable as the signals entering and leaving it. The PILZ 301120 provides the interface layer between field devices and the safety control system, handling digital input monitoring and output command functions in industrial automation installations.

For plants maintaining existing PILZ safety architectures, this module offers a practical maintenance replacement option. Engineers can restore machine safety functions without redesigning the complete control cabinet or changing established wiring concepts.

Technical Specifications

Technical descriptions of the PILZ 301120 list 8 digital inputs, 4 digital outputs, modular industrial integration, and IP20 protection characteristics.

Field Application & The “Trench” Experience

A packaging production line in Germany experienced repeated safety circuit interruptions after years of operation. The machine controller remained functional, but several emergency stop and guard monitoring signals became unreliable.

During troubleshooting, the maintenance engineer traced the problem to the aging PILZ I/O module inside the safety cabinet. Instead of replacing the entire safety controller system, the team installed a tested PILZ 301120 replacement, checked each safety input channel, verified output switching behavior, and returned the machine to production after commissioning checks.

Typical engineering applications include:

1. Automated packaging machinery

• Emergency stop circuits
• Safety door monitoring
• Light curtain signal processing

2. Machine tool safety systems

• Guard locking feedback
• Operator control stations
• Safety relay interface expansion

3. Production line interlock systems

• Conveyor protection circuits
• Process enable signals
• Equipment shutdown monitoring

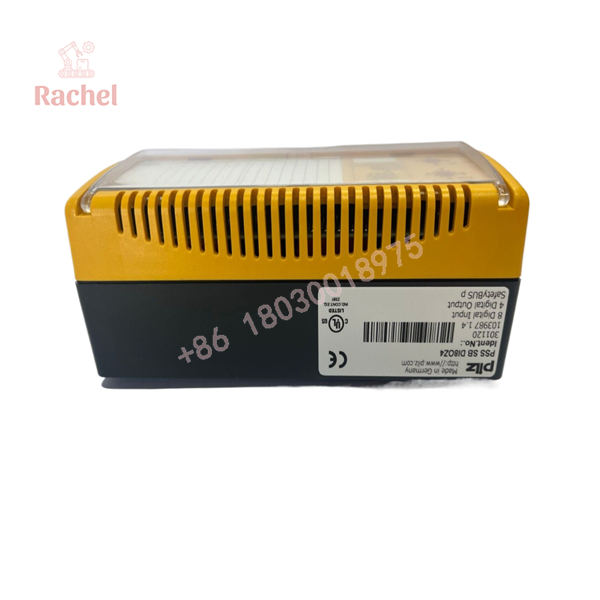

301120

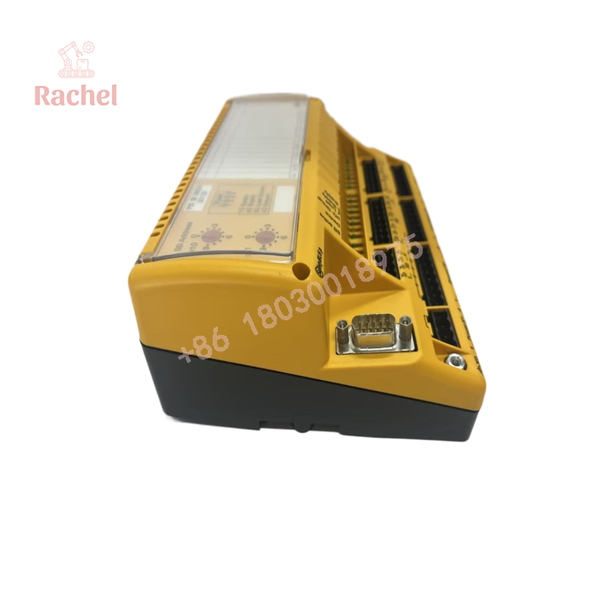

301120

Transparency SOP: QA & Testing

A replacement safety module requires more than a visual inspection. Each unit should go through a controlled evaluation process.

Inspection checklist:

✓ Housing and terminal condition checked
✓ PCB surface inspected for contamination or damage
✓ Input channels verified where testing equipment allows
✓ Output switching function checked
✓ Connector condition reviewed
✓ Final identification label matched against order requirements

For refurbished inventory, test records should indicate inspection date, operating verification results, and product condition classification.

The Veteran’s Tech Trap Guide

⚠️ PRO TIP: Safety I/O modules are configuration-sensitive.
A physically identical module may not operate correctly if the existing safety project configuration does not match the installed hardware.

⚠️ Do not overlook channel assignment.
Engineers often replace hardware and assume the fault is solved, but incorrect input mapping can create unexpected machine behavior.

⚠️ ESD precautions matter.
Safety modules contain sensitive electronic components. Always follow cabinet grounding procedures before handling replacement units.

Dynamic FAQ

Q1: What is the PILZ 301120 used for?

The PILZ 301120 is an industrial safety I/O module used for digital input monitoring and output control within PILZ automation systems.

Q2: How many I/O channels does the PILZ 301120 provide?

The module is commonly specified with 8 digital inputs and 4 digital outputs.

Q3: Can the PILZ 301120 be installed as a direct replacement?

Replacement depends on the existing PILZ system configuration, hardware version, project parameters, and application requirements. Always verify compatibility before installation.

Q4: What should be checked before replacing a failed 301120?

Confirm:

• Existing controller model
• Hardware configuration
• Module position
• Safety program compatibility
• Field wiring assignment

Q5: Are refurbished PILZ 301120 modules tested before shipment?

Testing procedures depend on the supplier, but professional automation suppliers typically perform inspection, electrical verification, and functional checks before shipping refurbished units.

Q6: What warranty is available for a PILZ 301120 replacement?

Warranty coverage depends on supplier policy and product condition. Buyers should confirm warranty period, return terms, and available test documentation before purchasing.
