Product Introduction & Engineering Value
The 5201-MNET-103M is particularly useful where a modern Ethernet-based control or SCADA system must exchange information with legacy protection equipment using IEC 60870-5-103. The gateway handles the protocol boundary rather than requiring the supervisory system to natively support the protection protocol.
This is legacy equipment. ProSoft currently lists 5201-MNET-103M among its legacy products without a specified replacement, so maintaining an existing installation may require sourcing tested surplus or refurbished hardware.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ProSoft Technology |
| Product family | ProLinx 5000 Series |
| Part number | 5201-MNET-103M |
| Ethernet protocol | Modbus TCP/IP |
| Serial protocol | IEC 60870-5-103 |
| IEC 103 role | Master |
| Maximum recommended IEC 103 slaves | 16 |
| Data exchange memory | 4,000-word register space |
| Mounting | DIN rail |
| Ethernet interface | 1 Ethernet port |
| Application port | Configurable IEC 103 serial interface |
| Configuration/diagnostics | ProLinx configuration and diagnostic tools |
The ProSoft protocol manual states that the 103M driver can communicate with up to 16 slave sessions and uses a 4,000-word register space for data exchange between protocols.
Engineering note: Do not confuse IEC 60870-5-103 with IEC 60870-5-101 or IEC 60870-5-104. They serve different communication architectures. The 5201-MNET-103M specifically combines Modbus TCP/IP with IEC 60870-5-103 Master functionality.
Field Application & the “Trench” Experience
A substation modernization project can present an awkward problem: the SCADA layer has moved to Ethernet, while installed protection relays still communicate through IEC 60870-5-103. Replacing every relay simply to obtain a newer protocol can introduce unnecessary protection-system changes.
In that situation, a 5201-MNET-103M can sit at the protocol boundary. The SCADA or PLC side communicates through Modbus TCP/IP, while the gateway operates as the IEC 103 master toward the protection equipment. The engineering work then centers on register mapping, slave addressing, serial parameters, and polling behavior.
Niche application scenarios
- Substation Protection Relay Integration — bringing legacy IEC 60870-5-103 protection data into a Modbus TCP-based SCADA system.
- Medium-Voltage Switchgear Monitoring — collecting relay measurements, alarms, and status information without replacing existing protection devices.
- Legacy Power-System SCADA Migration — retaining IEC 103 field equipment while transitioning the supervisory layer toward Ethernet-based communications.

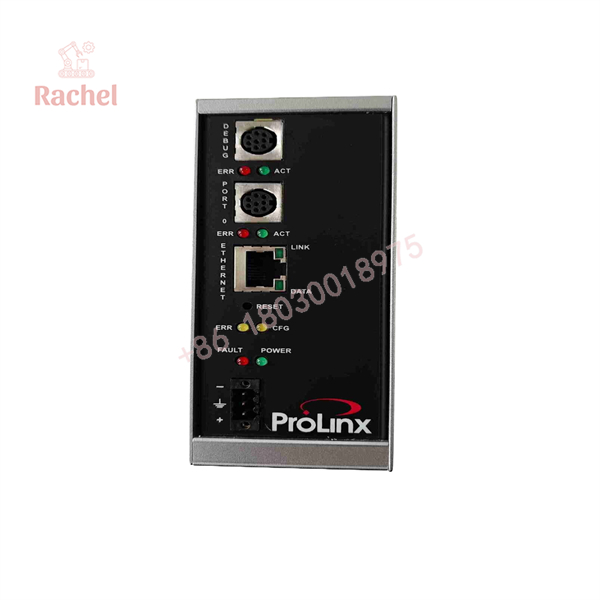

5201-MNET-103M

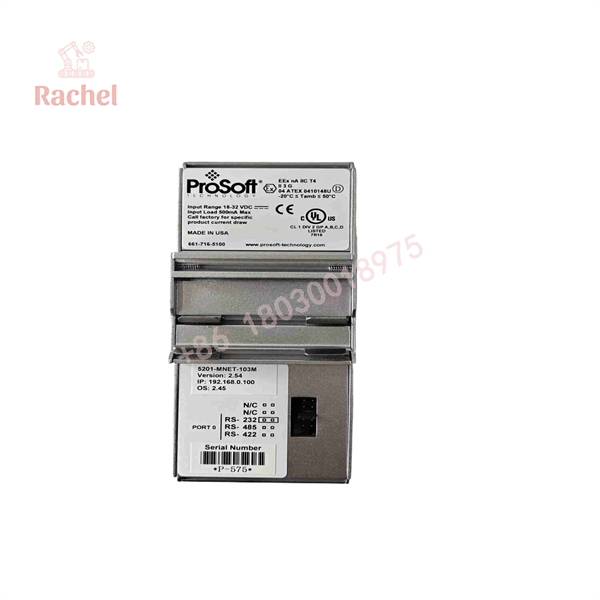

5201-MNET-103M
Transparency SOP: QA & Testing
For New Surplus or refurbished 5201-MNET-103M inventory, the useful test is a communications test—not merely a power-up.
1. Identity verification
Confirm the exact 5201- model and inspect the serial number, label, connectors, enclosure, and revision information.
2. Hardware inspection
Check the Ethernet port, serial interface, DIN-rail housing, terminal connections, LEDs, and PCB condition where accessible.
3. Ethernet test
Verify that the module initializes correctly and can establish Modbus TCP/IP communication with a controlled test device.
4. IEC 103 test
Connect the gateway to a suitable IEC 60870-5-103 test slave or protection relay and verify master polling and expected response handling.
5. Data-mapping test
Confirm that representative status, measurement, and command data move correctly between the Modbus TCP register space and the IEC 103 device.
6. Documentation review
Record firmware/configuration information and retain the tested configuration with the spare whenever possible.
The Veteran’s Tech Trap Guide
⚠️ Trap #1 — Assuming every IEC 103 relay will map identically.
IEC 60870-5-103 defines the communication framework, but the actual information objects and relay-specific implementation still need to be engineered. Do not expect a generic register map to work across different protection relays.
⚠️ Trap #2 — Forgetting that this is a Master gateway.
The 103M driver is intended to operate as the master toward IEC 103 slaves. The control architecture must reflect that relationship. ProSoft documentation recommends a maximum of 16 slave sessions.
⚠️ Trap #3 — Treating legacy availability as equivalent to current support.
ProSoft lists the 5201-MNET-103M as a legacy product and currently shows no designated replacement. That makes spare-parts planning important for installations that still depend on it.
PRO TIP: Save the working gateway configuration. When an obsolete communication module fails, having the original protocol mapping and IEC 103 device parameters can be more valuable than the hardware itself.
Dynamic FAQ
Q: What does the ProSoft 5201-MNET-103M do?
A: It provides protocol conversion between Modbus TCP/IP and IEC 60870-5-103, operating as an IEC 103 master.
Q: How many IEC 103 devices can it communicate with?
A: ProSoft’s protocol documentation recommends up to 16 IEC 60870-5-103 slave sessions. The practical limit also depends on the configured sessions and sectors.
Q: Is the 5201-MNET-103M still a current ProSoft product?
A: ProSoft currently lists it under Legacy Products and identifies no direct replacement on its legacy replacement page.
Q: Is it suitable for substation applications?
A: Yes. IEC 60870-5-103 is commonly associated with protection-equipment communications, and the gateway is specifically designed to connect IEC 103 devices with Modbus TCP/IP systems.
Q: What should be checked when buying New Surplus stock?
A: Verify the exact model, label and serial information, physical condition, firmware/configuration status, Ethernet and serial interfaces, and—ideally—evidence of functional communication testing.
Q: What warranty should I request?
A: Confirm the supplier’s warranty period, DOA policy, functional-test coverage, and return terms. For obsolete communication gateways, these commercial conditions should be documented before purchase.
