ProSoft 6105-WA-PDPS Wireless PROFIBUS DP Slave Gateway Module

Description

Product Introduction

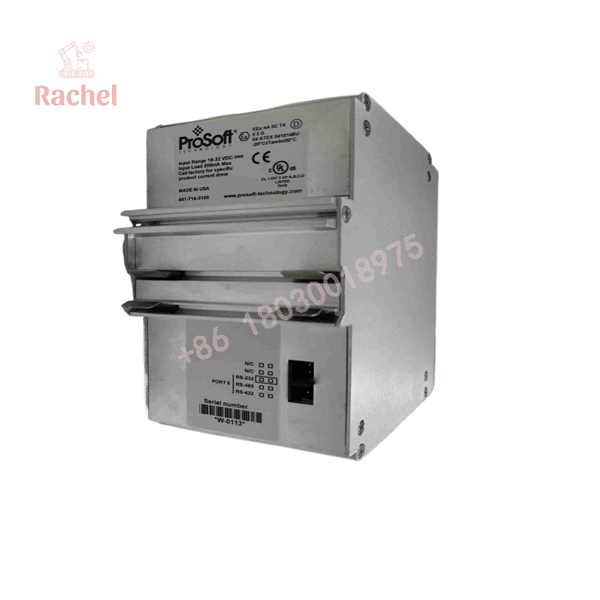

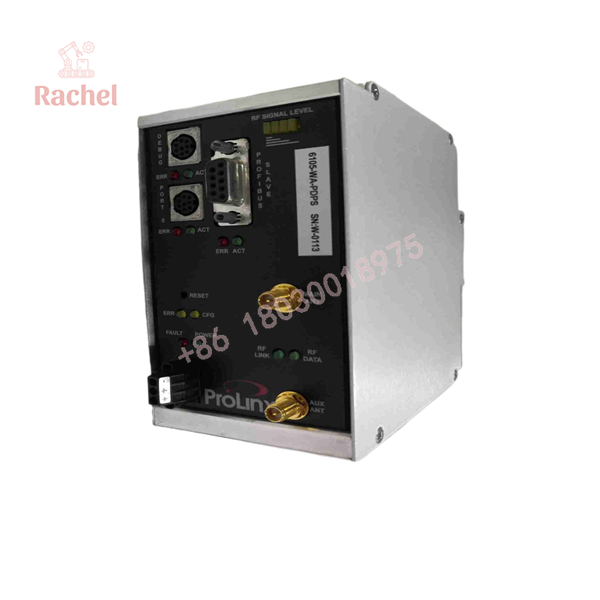

The ProSoft 6105-WA-PDPS is a heavy-duty industrial wireless gateway that acts as a PROFIBUS DP slave on an existing control network. It bridges remote PROFIBUS I/O nodes back to a master station wirelessly using ProSoft’s proprietary wireless protocol (PWP). This eliminates costly physical slip rings, cable tracks, and buried conduit across complex material handling lines or rotating plant equipment.

Engineered to solve difficult wiring constraints, the module uses a 400-byte shared internal database memory block to map input and output data dynamically. It provides a dedicated 244-byte input and 244-byte output cyclic data buffer for instant PROFIBUS fieldbus mapping. Compared to standard commercial Wi-Fi bridges, the 6105-WA-PDPS features industrial-grade noise rejection, deterministic polling routines, and automatic antenna diversity to prevent signal dropouts in high-EMI environments.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Imagine running a overhead gantry crane line in a steel manufacturing plant. A physical PROFIBUS festoon cable snaps for the third time this quarter due to fatigue from continuous travel. The entire bay freezes, dropping plant throughput to zero while electricians hunt for the break. Replacing the physical cable reel with a 6105-WA-PDPS wireless slave unit eliminates mechanical flex stress entirely. The crane’s local I/O array communicates over the air directly to the main PLC rack, preventing physical wire fatigue and cutting line downtime.

• Material Handling & Stacker-Reclaimers – Eliminates long, high-maintenance festoon cables or slip-ring assemblies over long linear tracks.
• Rotary Index Tables & Carousel Automated Systems – Transmits real-time PROFIBUS I/O data through 360-degree continuous rotation loops where hardwiring is impossible.
• Automotive Body Shops & Mobile AGVs – Connects automated guided vehicles (AGVs) or moving skid carriers to the central PROFIBUS master controller over 2.4GHz RF.

6105-WA-PDPS

6105-WA-PDPS

Transparency SOP: Quality Assurance & Testing

We do not just ship boxes; we test them on actual industrial racks before dispatch.

1. Inbound Visual & Integrity Inspection: Verify housing, check DIN rail latch mechanism, confirm OEM serial stickers, and check RP-SMA antenna threads for physical wear.
2. Power-On Self Test (POST): Supply 24 VDC power and verify internal processor boot routines, diagnostics LEDs, and power rail isolation.
3. Live PROFIBUS Bus Handshake: Connect the 6105-WA-PDPS serial DB9 port to a Siemens S7-300 PROFIBUS Master using a calibrated GSD file. Confirm bus addressing, baud rate auto-detect, and clear data exchange without bus fault LEDs.
4. Wireless RF Stress Testing: Pair the unit with a 6104-WA-PDPM master radio across a simulated noisy ambient RF path. Verify packets under full 244-byte dynamic input/output throughput load to measure Bit Error Rates (BER).
5. ESD-Safe Final QC: Record exact internal firmware revision settings and seal the unit inside anti-static ESD shielding prior to field dispatch.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ GSD File Mapping Discrepancy: When replacing an older gateway, do not assume default GSD configuration mappings match. Verify the exact PROFIBUS node address set in the PCB software config tool. Copy the old module’s byte-swap and register offset configuration directly to avoid a bus-fault (BF) LED instantly upon startup.
• ❗ Match Antenna Polarization and Diversity Cables: The unit relies on dual RP-SMA diversity ports to handle multipath signal reflection in metal-heavy plants. If you only connect one antenna, or use cheap standard SMA cables (instead of Reverse Polarity SMA), RF signal attenuation will cause intermittent packet drops under load.
• ⚠️ Dirty 24VDC Power Sinks RF Modules: RF transmitters are sensitive to low-voltage dips caused by inductive solenoid kickback on shared 24V bus lines. Run dedicated power leads from an isolated 24VDC power supply to the gateway module terminal block.

Frequently Asked Questions (FAQ for Conversion)

Q: Can I use the 6105-WA-PDPS module as a PROFIBUS Master?

A: No. The 6105-WA-PDPS is strictly a PROFIBUS DP Slave module. If your topology requires the wireless gateway to act as a PROFIBUS DP Master, you must specify the companion 6104-WA-PDPM unit instead.

Q: How do I configure the wireless network name and security keys on this legacy module?

A: Configuration is handled via ProSoft’s PCB (ProSoft Configuration Builder) software connected through the unit’s serial configuration port. You must configure the ProSoft Wireless Protocol (PWP) parameters, SSID, and WEP key before placing the card on the field network.

Q: What is the maximum distance this wireless gateway can bridge?

A: Range depends heavily on antenna selection and plant geometry. With line-of-sight and directional high-gain antennas, distances of several thousand feet are attainable. Indoors, surrounded by structural steel, practical reliability typically ranges from 300 to 600 feet.

Q: Since ProSoft has retired the 6000 Series, are these units genuine and warrantied?

A: Yes. We source these modules from factory new-surplus or fully clean refurbished inventory. Every unit undergoes physical and live bus validation and carries a full 12-month functional replacement warranty.

Q: Is this card hot-swappable while the PROFIBUS network is alive?

A: While pulling the 24V DC terminal block will not damage the physical hardware, it will instantly trigger a missing-node slave fault on your PROFIBUS Master PLC. Always place the host controller or relevant I/O loop in maintenance mode before replacing the unit.
