ProSoft MVI56-PDPS PROFIBUS DP Slave Module ControlLogix

Product Introduction & Engineering Value

The difficult part of a multi-vendor automation project is often the communication layer. A machine may have a reliable PROFIBUS network already installed, but replacing every connected device during a PLC upgrade is rarely practical. The MVI56-PDPS provides a direct path for ControlLogix systems to participate in existing PROFIBUS DP networks.

For maintenance teams supporting mixed Siemens and Rockwell environments, this module reduces migration risk by keeping proven field devices in service. It manages PROFIBUS data exchange separately from the ControlLogix processor, allowing engineers to focus on application logic rather than low-level communication handling.

Technical Specifications

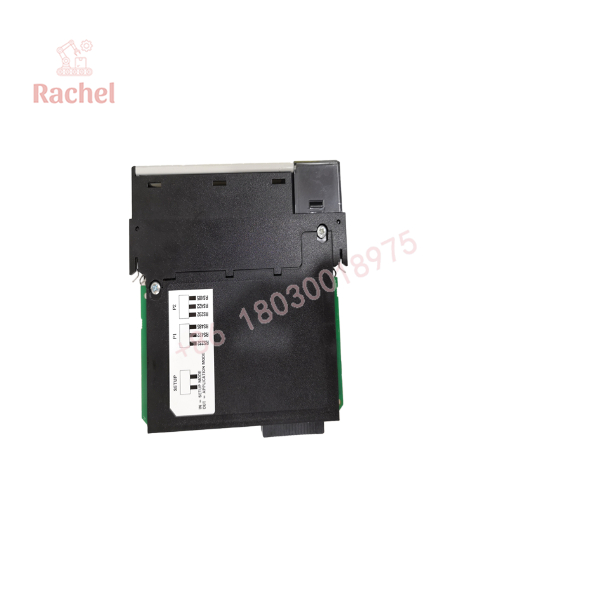

MVI56-PDPS

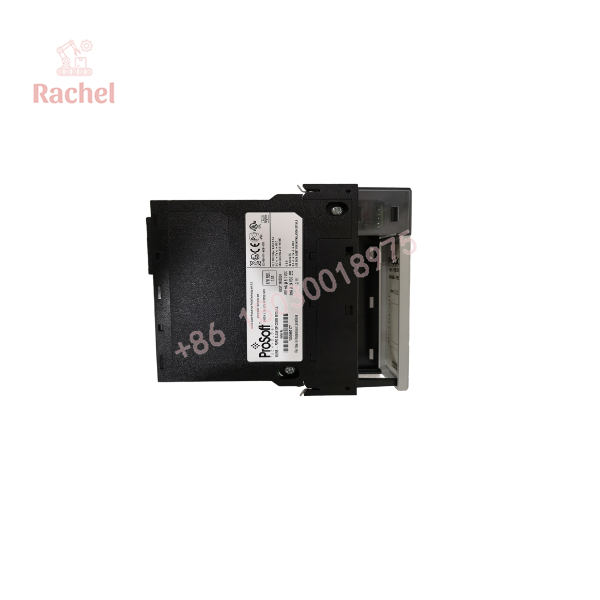

MVI56-PDPS

Field Application & The “Trench” Experience

A packaging facility operated a production line originally designed around Siemens PROFIBUS remote I/O and drive systems. During a controls upgrade, the plant standardized several sections on Allen-Bradley ControlLogix controllers but needed to keep the existing PROFIBUS devices because mechanical modifications were not part of the project scope.

The integration team installed MVI56-PDPS modules in the new ControlLogix racks. The ControlLogix processor exchanged mapped data with the existing PROFIBUS master network, allowing the production line to return to operation without replacing field hardware.

Typical application scenarios include:

• ControlLogix integration into Siemens PROFIBUS-based production lines
• PROFIBUS drive control interfaces
• Legacy remote I/O network retention during PLC migration
• Packaging and material handling system upgrades

Transparency SOP: QA & Testing

A communication module should not be installed into a critical production system without verification.

Testing procedure:

1. Module authentication
   • Confirm model number and ProSoft identification label.
   • Inspect housing, connectors, and terminal condition.
2. Hardware inspection
   • Check backplane contacts.
   • Inspect RS-485 PROFIBUS connector condition.
   • Verify no visible damage from storage or previous installation.
3. Functional testing
   • Power module in a compatible ControlLogix chassis.
   • Verify initialization status.
   • Check diagnostic information.
   • Validate PROFIBUS communication where test equipment is available.

For New Surplus units, inspection focuses on OEM authenticity and storage condition. Refurbished modules should include repair records, functional testing details, and warranty documentation.

The Veteran’s Tech Trap Guide

⚠️ Trap 1: Mixing up PROFIBUS Master and Slave roles

The MVI56-PDPS is designed as a PROFIBUS DP Slave. It does not replace a PROFIBUS master device.

PRO TIP: Confirm the network architecture before ordering. Many integration problems start with selecting the wrong communication role.

⚠️ Trap 2: Incorrect GSD file handling

PROFIBUS networks depend on device-specific GSD files. Using the wrong revision can prevent proper network commissioning.

Verify:

• GSD version
• Configured I/O length
• Module firmware compatibility

⚠️ Trap 3: Ignoring RS-485 wiring details

PROFIBUS is sensitive to physical layer issues.

Check:

• Cable impedance
• Termination resistors
• Shield grounding
• Connector termination switches

A failed network is often a wiring problem, not a failed module.

Dynamic FAQ

Q1. What is the ProSoft MVI56-PDPS used for?

The MVI56-PDPS allows Allen-Bradley ControlLogix processors to communicate as PROFIBUS DP slave devices on existing PROFIBUS networks.

Q2. Can the MVI56-PDPS connect directly to Siemens PROFIBUS systems?

Yes. It is commonly used to connect ControlLogix systems with PROFIBUS master devices from Siemens and other automation manufacturers.

Q3. Does replacing an MVI56-PDPS require changing the ControlLogix program?

Usually, the controller-side data mapping should remain consistent if the replacement module configuration matches the original installation.

Q4. What information should be checked before purchasing a replacement?

Confirm:

• Exact model: MVI56-PDPS
• Existing PROFIBUS master configuration
• GSD file version
• Firmware compatibility
• Current module configuration backup

Q5. Are New Surplus MVI56-PDPS modules reliable for plant spares?

New Surplus modules should be verified for OEM labeling, storage condition, and packaging integrity. A supplier should provide warranty coverage and authenticity information.

Q6. Why keep an MVI56-PDPS spare in inventory?

Many industrial plants still operate PROFIBUS networks with long equipment lifecycles. A tested spare module can reduce downtime when communication hardware fails unexpectedly.
