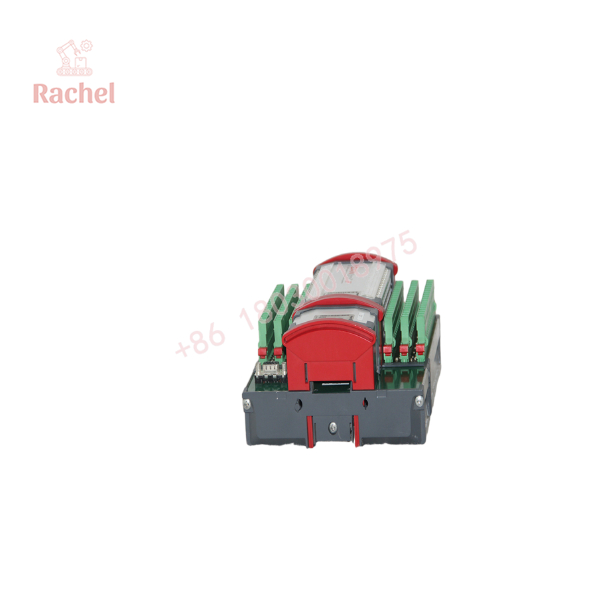

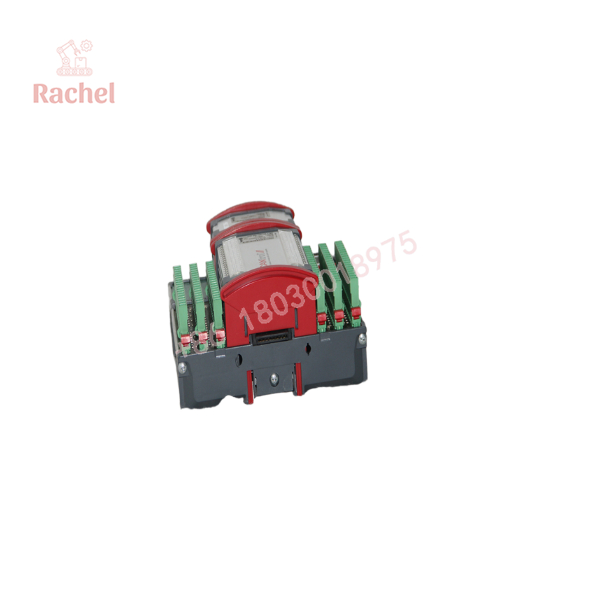

QDIO 16/16-0,5 Digital I/O Module

Description

Product Introduction & Engineering Value

Legacy machine controls often fail for one simple reason: a small I/O module becomes unavailable while the mechanical system is still perfectly serviceable. The QDIO 16/16-0,5 solves this maintenance challenge by extending digital field connections without requiring a complete controller redesign.

This module provides 16 fixed digital inputs and 16 individually configurable input/output channels. For existing Moog MSC I, MSC II, or Berghof automation systems, maintaining a tested spare can shorten recovery time during production interruptions.

Technical Specifications

The QDIO 16/16-0,5 supports high-side switching outputs and provides grouped 24 VDC field power distribution with electrical isolation between communication bus and digital I/O sections.

Field Application & The “Trench” Experience

A hydraulic test bench manufacturer operating an older Moog MSC II motion controller began seeing intermittent valve control faults. The controller diagnostics showed no CPU errors, but several digital outputs stopped responding during high-cycle operation. After tracing the problem through the I/O chain, technicians identified a failing QDIO 16/16-0,5 expansion module.

The replacement process required more than swapping hardware. Engineers verified the E-bus connection, confirmed the digital channel assignment, checked valve solenoid current demand, and restored operation during a scheduled maintenance window.

Common application scenarios include:

• Hydraulic servo test systems controlling proportional valves and limit sensors
• Automated assembly equipment with distributed field I/O requirements
• Motion platforms requiring additional actuator and sensor channels
• Industrial inspection machines using Moog MSC controllers

16/16-0,5

16/16-0,5

Transparency SOP: QA & Testing

A QDIO 16/16-0,5 entering spare inventory should be evaluated through a practical hardware verification process.

Inspection checklist:

• Confirm model identification and version marking
• Inspect terminal connectors and DIN mounting clips
• Check enclosure condition and signs of overheating
• Verify 24 VDC power-up behavior
• Test digital input response
• Test configurable I/O channels
• Confirm output switching under controlled load
• Verify E-bus communication

For discontinued automation hardware, functional testing is the difference between a stored component and a dependable production spare.

The Veteran’s Tech Trap Guide

⚠️ Do not confuse QDIO 16/16-0,5 with QDIO 16/16-0,5N

The two versions differ in switching behavior. The standard QDIO 16/16-0,5 uses high-side switching outputs, while the QDIO 16/16-0,5N version uses low-side switching. Verify the exact part number before installation.

⚠️ E-bus compatibility must be checked

The module is not a standalone remote I/O device. It depends on the correct controller architecture and internal bus connection.

PRO TIP: Save the original I/O mapping before replacement. Incorrect channel assignment can create machine behavior that looks like a sensor or actuator fault.

⚠️ Watch output current limits

Each output channel is rated around 0.5 A. Direct replacement with higher-current loads can damage the output stage or create repeated protection trips.

Dynamic FAQ

Q1. What is the QDIO 16/16-0,5 used for?

The QDIO 16/16-0,5 is a digital I/O expansion module used to increase the number of field connections available on compatible Moog and Berghof control systems.

Q2. Is the QDIO 16/16-0,5 still a current product?

The QDIO 16/16 series is considered a legacy product. Moog identifies the module as a legacy digital extension module for MSC I and MSC II systems.

Q3. Can QDIO 16/16-0,5 replace QDIO 16/16-0,5N?

Not directly. The switching type is different, and field wiring requirements must be verified before substitution.

Q4. What should be checked before replacing this module?

Confirm:

• Controller model (MSC I / MSC II)
• E-bus configuration
• I/O address mapping
• Output load requirements
• Original module part number

Q5. Are tested surplus QDIO 16/16-0,5 modules available?

Availability depends on remaining industrial inventory. Because the module is discontinued, tested surplus and refurbished units are commonly used for maintenance support.

Q6. What warranty should be expected for a refurbished QDIO 16/16-0,5?

Warranty depends on the supplier’s testing process and product condition. A qualified supplier should provide functional testing records and limited warranty coverage for the replacement module.
