Description
Product Introduction & Engineering Value
The Reliance Electric 57C554 belongs to the legacy AutoMax control-system hardware family. These modules are typically encountered in established Reliance automation and drive installations where the original control architecture remains in production long after the equipment’s normal commercial lifecycle.
For maintenance teams, the important point is compatibility. A 57C-series communication module should be matched by the complete part number and AutoMax system configuration rather than by connector appearance. Before replacement, verify the rack position, firmware/configuration requirements, network architecture, and the exact function of the installed 57C554.
Technical Specifications
- Manufacturer: Reliance Electric
- Part Number: 57C554
- Product Family: AutoMax
- Hardware Category: Communication/network interface module
- System: Reliance AutoMax
- Primary Role: Industrial control-system communication
- Installation: AutoMax control rack/system architecture
- Application: Industrial automation and drive-control systems
- Network Function: AutoMax network communication
- Configuration: Dependent on the AutoMax system and installed network architecture
- Firmware: Verify against the installed system revision
- Lifecycle: Legacy/obsolete hardware commonly supported through aftermarket inventory
Specification boundary: Public references for the 57C554 are not sufficiently consistent to responsibly state exact connector type, network protocol, data rate, power consumption, or firmware details without the applicable Reliance manual or original module documentation. Those values should be verified before inclusion in a controlled equipment specification.
Field Application & the “Trench” Experience
A legacy production line can run for years with very little attention to its AutoMax communication hardware. Then a network module starts dropping communications intermittently. Drives report faults, PLC data becomes unreliable, and the first suspicion often falls on the network cable.
After cable and termination checks come back clean, the communication module becomes the logical suspect.
For a 57C554, the practical advantage of an exact replacement is preserving the existing AutoMax architecture. Replacing the entire control platform just because a legacy communication module has failed can turn a localized maintenance event into a much larger migration project.
Specific application scenarios
- Legacy Reliance drive-control network — Maintaining communication between AutoMax control hardware and connected drive equipment.
- Industrial material-handling system — Supporting an existing AutoMax-based control architecture where network communication is essential to coordinated machine operation.
- Continuous-process auxiliary controls — Maintaining legacy AutoMax nodes while a longer-term controls modernization project is planned.

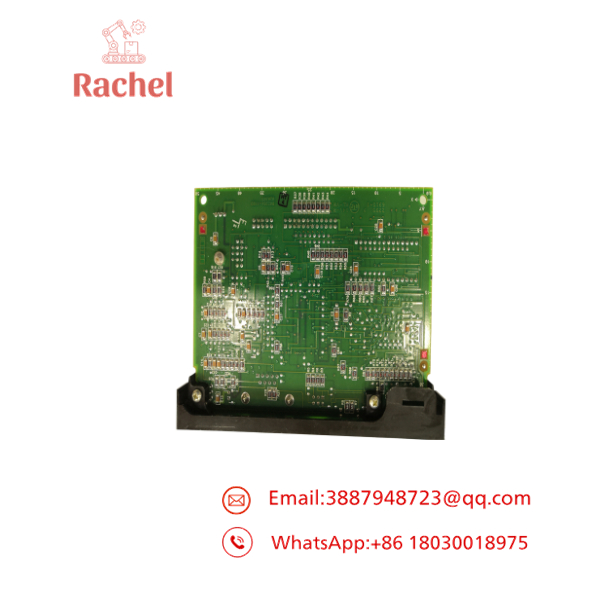

57C554

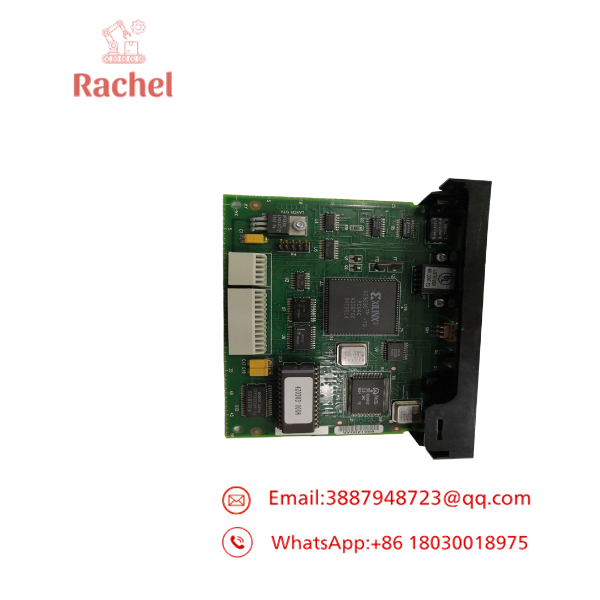

57C554
Transparency SOP: QA & Testing
For new-surplus or refurbished 57C554 inventory, testing should establish both identity and communication functionality.
- Part-number verification — Confirm the complete 57C554 marking and revision information.
- Visual inspection — Examine the PCB, connectors, edge contacts, mounting hardware, and components.
- Electrical screening — Check for obvious shorts or abnormal resistance before applying power.
- Power-up test — Install the module in an appropriate test rack or compatible AutoMax environment.
- Communication test — Verify network initialization and communication with compatible AutoMax equipment.
- Fault monitoring — Check for diagnostic or communication errors during extended operation.
- Documentation — Record the hardware revision, serial information, test environment, and results.
A module that powers up is not necessarily a tested communication module. For a critical spare, request evidence of actual AutoMax network testing.
The Veteran’s Tech Trap Guide
⚠️ Trap #1 — Assuming all 57C-series modules are interchangeable.
They are not. The 57C family contains multiple AutoMax hardware functions. The complete part number must match the required application.
PRO TIP: Photograph the installed module and its rack position before removal. Legacy systems often contain several visually similar boards.
⚠️ Trap #2 — Buying a “tested” unit without asking what was tested.
“Power tested” and “functionally tested” are very different claims. Ask specifically whether the 57C554 was tested in an operational AutoMax rack with network communication.
⚠️ Trap #3 — Ignoring firmware/configuration compatibility.
A physically correct replacement can still require system-level configuration or firmware compatibility checks. Document the existing system revision before replacing the board.
⚠️ Trap #4 — Replacing hardware before checking the network itself.
Intermittent communication faults can originate from cabling, termination, power quality, grounding, or another node. Isolate the fault before condemning the module.
Dynamic FAQ
What is Reliance 57C554?
The 57C554 is a legacy Reliance Electric AutoMax communication/network module used within AutoMax industrial control architectures.
Is Reliance 57C554 still manufactured?
It is a legacy Reliance Electric part and is generally sourced through industrial surplus, used, or refurbished inventory rather than normal current-production distribution.
Can I substitute another Reliance 57C-series module?
Do not assume so. Verify the exact 57C554 part number, system architecture, rack configuration, firmware requirements, and communication function before substitution.
What should I ask for when purchasing new-surplus 57C554 stock?
Request:
- Exact 57C554 identification
- Actual photographs of the module
- Hardware/revision information
- Confirmation of new-surplus condition
- Evidence of functional AutoMax testing
- Test report, if available
- Warranty period
- Return terms
How should a refurbished 57C554 be tested?
The preferred test is installation in a compatible AutoMax test environment followed by verification of power-up, network initialization, communication, and sustained operation. A visual inspection alone is insufficient.
What warranty should I expect?
Warranty depends on the aftermarket supplier and condition of the unit. For a production-critical control module, obtain the warranty and return procedure in writing before purchase.
