Description
Core Product Summary
The Rolls-Royce Marine SLIO 02 is a ruggedized distributed input/output (I/O) and network controller module belonging to the proprietary CanMan vessel control architecture. Engineered specifically for harsh marine operating environments, the SLIO 02 acts as a localized field node that acquires process telemetry, manages discrete/analog signals, and executes localized control routines for vessel propulsion systems.
Designed for installation across bridge consoles, engine control rooms, and thruster equipment spaces, the module establishes high-reliability data communication across redundant dual CAN bus channels. It enables real-time interaction between operator levers, main engines, fixed or controllable pitch propellers (FP/CP), and auxiliary propulsion units within unified marine automation networks.
Key Technical Specifications
| Technical Parameter | Specification Detail |
| Brand / Manufacturer | Rolls-Royce Marine AS |
| Model Identifier | SLIO 02 (SLIO-02) |
| System Architecture | CanMan (CAN-based Marine Control Network) |
| Module Category | Distributed Serial Local I/O / Controller Network Node |
| Communication Ports | Dual CAN Bus (CAN 1 / CAN 2 redundant network links) |
| System Operating Voltage | 24 VDC nominal marine power supply |
| Enclosure & Construction | Marine-hardened metallic chassis for cabinet or desk mounting |
| Targeted Applications | Engine control, propeller pitch control, thruster positioning |
Engineering Selection Highlights
- CanMan Network Integration: Built specifically for Rolls-Royce Marine CanMan propulsion control systems, ensuring direct protocol compatibility with CanMan bridge levers and central processing units.
- Redundant Network Bus: Utilizes dual CAN bus physical layers to maintain uninterrupted telemetry and control command transmission in the event of a single line fault.
- Propulsion & Steering Functions: Interfaces directly with actuators, sensors, and valves associated with main engines, controllable pitch propellers (CPP), and steerable thrusters.
- Modular Marine Deployment: Facilitates staged installation, field testing, and commissioning across decentralized vessel control cabinets.
- Vessel Protection Design: Hardened against high ambient thermal cycles, mechanical vibration, and electromagnetic interference typical of shipboard machinery spaces.
System Compatibility & Integration Requirements
| Item / Dependency | Verified Compatibility or Requirement | Practical Note |
| Automation System | Rolls-Royce CanMan Control Network / CCN Framework | Operates as a remote I/O node within CanMan system topologies. |
| Network Cabling | Shielded twisted-pair CAN bus cabling | Dual bus channels must be terminated with correct impedance matching at network end nodes. |
| Power Source | 24 VDC marine DC power rail | Requires low-ripple, regulated 24V DC auxiliary power. |
| Controlled Equipment | Main engines, CP/FP propellers, azimuth & tunnel thrusters | Signal pinouts map to specific valve drivers, pitch feedback sensors, and speed governors. |
Dimensions, Mounting & Connection Notes
- Installation Method: Designed for panel or sub-rack mounting within protected engine room cabinets or bridge control desks.
- Field Terminal Layout: Features labelled pluggable terminal blocks for direct connection of field instrument wires, power feeds, and dual CAN communication cables.
- Cabinet Protection: Requires mounting inside an IP/NEMA-rated marine console enclosure to shield the electronics from salt mist, moisture, and dust.

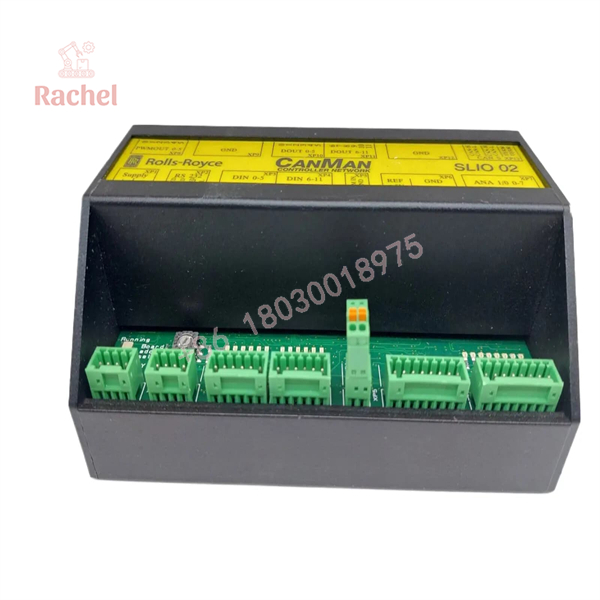

SLIO 02

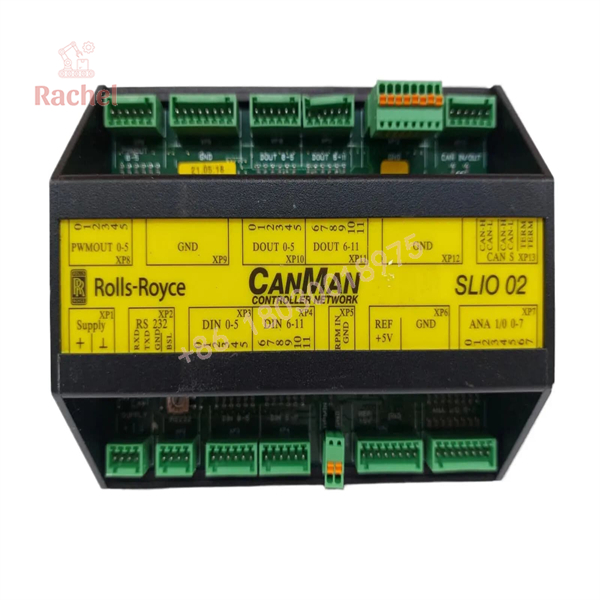

SLIO 02
Detailed Product Overview
The Rolls-Royce Marine SLIO 02 is a specialized distributed I/O controller module developed for the CanMan ship propulsion and steering control architecture. Engineered to fulfill classification society standards for marine equipment, the module processes critical analog and discrete signals associated with vessel propulsion machinery.
Constructed in a compact, industrial-grade metal enclosure, the SLIO 02 connects local field devices—such as hydraulic solenoids, position transmitters, speed pickups, and alarm contacts—directly to the ship’s control network. Its dual CAN bus communication interface provides hardware-level network redundancy, preventing loss of control during single-cable degradation or physical bus damage. By delegating signal processing to localized SLIO 02 nodes, the CanMan system reduces complex point-to-point cable runs throughout the vessel while maintaining fast response times for thruster and engine commands.
Applications & System Role
The Rolls-Royce SLIO 02 sits at the field actuation and signal acquisition layer of vessel propulsion systems. Positioned between primary bridge control levers and physical machinery actuators, it processes local engine speed feedback, propeller pitch position, and steering angles.
By digitizing field inputs and broadcasting them across the redundant CanMan dual CAN bus, the SLIO 02 enables centralized control computers and bridge displays to execute precise maneuvering routines for main propulsion engines, twin-screw setups, and auxiliary bow/stern thrusters.
FAQ
What is the primary function of the Rolls-Royce SLIO 02?
The SLIO 02 is a marine distributed I/O and network controller module used to monitor and manage engines, propellers, and thrusters within Rolls-Royce CanMan control networks.
What network protocol does the SLIO 02 use?
It uses a redundant dual CAN bus (Controller Area Network) system for real-time data communication across the vessel.
What system platform is the SLIO 02 compatible with?
It is designed specifically for the Rolls-Royce Marine CanMan propulsion control system architecture.
What supply voltage does the SLIO 02 require?
The module operates on a nominal 24 VDC marine control power supply.
Can the SLIO 02 handle controllable pitch propeller (CPP) systems?
Yes, it is designed to manage position control and feedback for both fixed pitch (FP) and controllable pitch (CP) propeller systems.
