Description
Core Product Summary
The SAACKE FSC-01 V3 is a safety-critical flame monitoring and safeguard control module designed for integration into industrial burner control systems and combustion management architectures. Manufactured by SAACKE, this module evaluates flame detector signals to confirm the presence of a stable flame during burner ignition and continuous firing phases.
Engineered for high-reliability boiler, furnace, and industrial burner plants, the FSC-01 V3 provides fast-response flame detection processing, integrated status indication, and direct signal interlocking with automatic fuel shut-off valves. Housed in a compact, panel-mountable industrial enclosure, it operates within strict combustion safety sequences to ensure safe startup, operation, and emergency shutdown across industrial thermal process installations.
Key Technical Specifications
| Parameter | Specification |
| Product Type | Flame Safeguard Control Module / Flame Switch |
| Manufacturer | SAACKE |
| Model / Hardware Revision | FSC-01 V3 |
| Application | Flame presence evaluation & safety interlocking |
| System Compatibility | SAACKE industrial burner control systems & combustion panels |
| Signal Input | Optical / ionization flame scanner / detector interface |
| Output Type | Safety relay switching outputs for burner interlocks |
| Mounting / Form Factor | Panel-mount plug-in module / DIN terminal base |
| Enclosure Rating | Industrial control cabinet mounting |
Detailed Product Overview
The SAACKE FSC-01 V3 module performs a vital protective function within automated burner management systems (BMS). By continuously processing incoming signals from flame sensors (such as UV scanners, IR sensors, or ionization rods), the controller differentiates between actual burner flames, ambient background radiation, and sensor faults.
If a flame failure occurs during operation or if no flame is established during the designated ignition safety period, the FSC-01 V3 immediately drops its safety outputs. This interruption triggers an instant shutoff of safety shut-off valves (MSOVs), preventing unburned fuel accumulation inside the combustion chamber and protecting plant equipment and personnel.
When installing or servicing the FSC-01 V3 controller, system integrators must ensure proper pairing with compatible flame detectors, observe line voltage requirements, and strictly follow applicable burner safety standards and local combustion codes during wiring and commissioning.

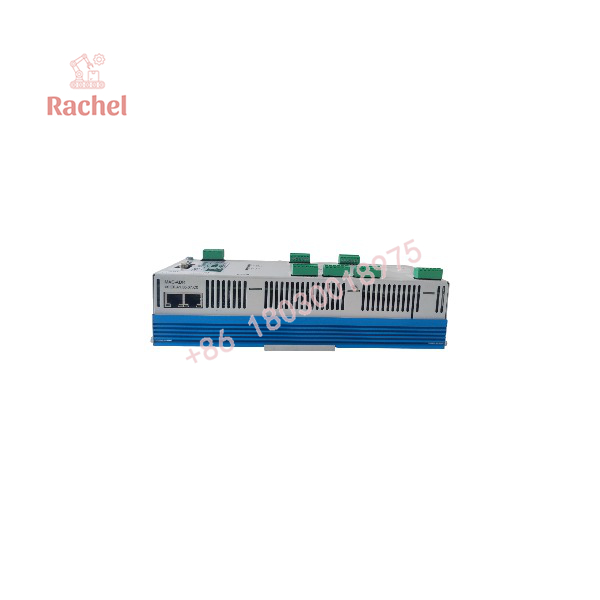

FSC-01 V3

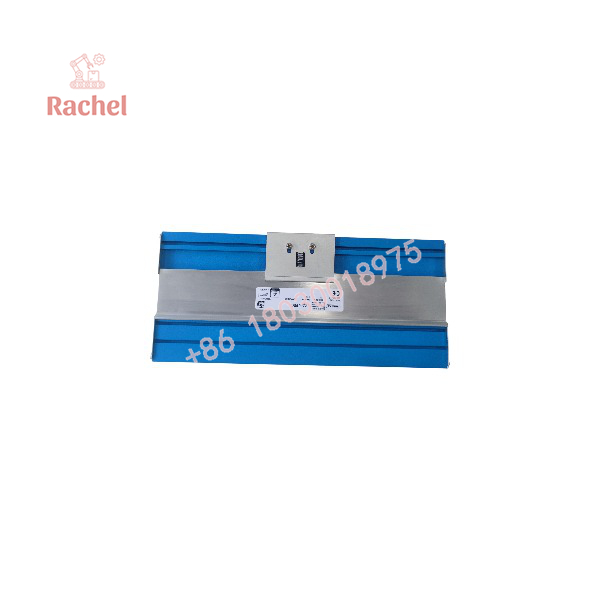

FSC-01 V3
System Compatibility & Integration Requirements
| Item / Dependency | Verified Compatibility or Requirement | Practical Note |
| Combustion System | Industrial burner control panels & SAACKE BMS racks | Integrates directly into dedicated combustion safety circuits. |
| Flame Detector Input | Compatible optical or ionization flame sensor | Sensor type must match the module’s signal input circuit. |
| Safety Interlocks | Main safety shut-off valves & master fuel trip logic | Relay outputs interface with hardwired burner safety loops. |
| Cabinet Installation | Enclosed control cabinet / panel mounting base | Protects the module against industrial dust and ambient contaminants. |
Dimensions, Mounting & Connection Notes
- Mounting Method: Plugs into a dedicated base socket or mounts directly onto control cabinet sub-panels.
- Wiring Practice: Flame sensor input cables must be shielded and routed separately from high-voltage ignition or power supply cables to prevent signal interference.
- Ambient Conditions: Designed for operation inside temperature-controlled and dry industrial control cabinets.
- Maintenance & Testing: Requires routine functional testing of the flame failure response sequence in accordance with burner manufacturer safety guidelines.
FAQ
What is the primary function of the SAACKE FSC-01 V3?
The SAACKE FSC-01 V3 is a flame safeguard control module designed to monitor flame signals and enforce safety shutdowns in industrial burner systems.
Which system does the FSC-01 V3 integrate into?
It is designed for integration into SAACKE burner management systems and industrial combustion control panels.
How does the FSC-01 V3 handle a flame failure event?
Upon detecting a loss of flame or ignition failure, the module instantly opens its safety output contacts to close fuel supply valves and initiate a safe lockout state.
What type of inputs does the module accept?
It receives flame detection signals from compatible optical (UV/IR) flame scanners or ionization detection probes.
