Description
Core Product Summary (Brand / Model / Key Attributes)
The Schenck FNT L001 (material number K002070.01) is a 100 W AC/DC power supply unit designed for Schenck industrial weighing and control systems. It converts 230 V AC mains into regulated +5 V DC and +24 V DC outputs required by the control electronics of legacy equipment such as the DISOMAT series.
The unit features front-panel LED indicators for 5 V OK and 24 V OK status. It is intended for rack-mount installation with a rear multi-pin connector that matches original Schenck hardware configurations. Typical use is the maintenance and repair of existing industrial weighing, balancing, and process-control installations.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | AC/DC power supply unit |
| Model / Material Number | FNT L001 / K002070.01 |
| Power Rating | 100 W |
| Input Voltage | 230 V AC (+10 % / –20 %) |
| Input Frequency | 47–63 Hz |
| Output Voltages | +5 V DC, +24 V DC |
| Status Indicators | LED for 5 V OK, LED for 24 V OK |
| Mounting | Rack-mount with rear multi-pin connector |
| Typical Application | Schenck DISOMAT and related weighing / control systems |
Detailed Product Overview
The Schenck FNT L001 is a dedicated power supply module used to energize the control electronics of Schenck industrial measurement and weighing systems. It accepts a single-phase 230 V AC input (with tolerance +10 % / –20 %) at 47–63 Hz and delivers the two regulated DC rails (+5 V and +24 V) required by the associated control units.
Status LEDs on the front panel provide immediate visual confirmation that each output rail is within normal operating range. The mechanical design is intended for direct installation into the original Schenck rack or chassis, using the rear multi-pin connector that matches the system wiring harness.
Because the module is matched to the electrical and mechanical interfaces of earlier Schenck control platforms, it is commonly specified for the continued operation or repair of existing installations rather than for new-system designs. Typical environments include industrial weighing, process weighing, and related measurement applications where the original power-supply module must be replaced with an identical functional unit.
Engineering Selection Highlights
- Dual regulated outputs (+5 V DC and +24 V DC) → supplies both logic and actuator/control voltages required by Schenck DISOMAT-type systems.
- 100 W continuous rating → matches the power budget of the original control electronics.
- Front-panel status LEDs → allow quick verification of output integrity without external instrumentation.
- Rack-mount form with original rear connector → ensures mechanical and electrical compatibility with existing Schenck chassis.
- 230 V AC input with wide tolerance and 47–63 Hz frequency range → suitable for industrial mains supplies in most regions.
- Material number K002070.01 → provides exact identification for procurement and documentation of legacy systems.

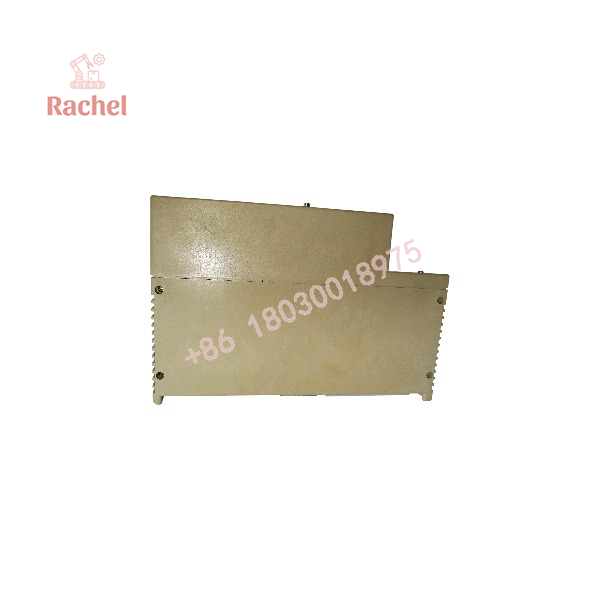

FNT L001

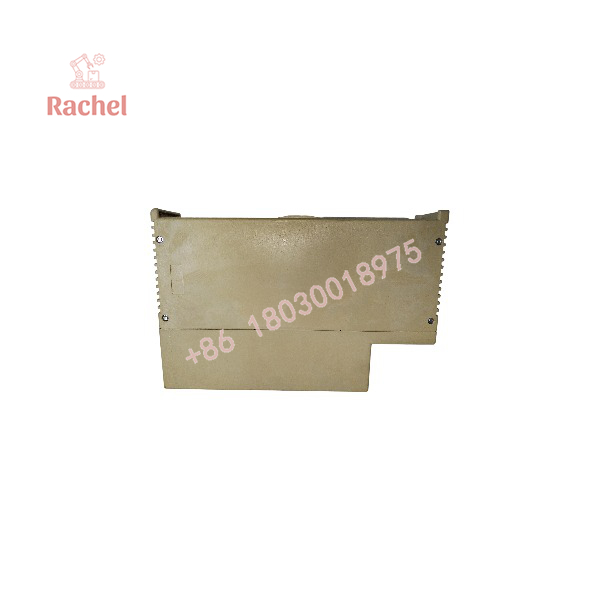

FNT L001
Dimensions, Mounting & Connection Notes
- Mounting style: rack-mount
- Connector: rear multi-pin connector matched to original Schenck system wiring
- Status indicators located on the front panel
- Designed for installation inside the original equipment enclosure or rack
(Exact external dimensions and pin-out are defined by the original Schenck system documentation for the specific chassis in which the module is installed.)
System Compatibility & Integration Requirements
| Item / Dependency | Verified Compatibility or Requirement | Practical Note |
|---|---|---|
| Host System | Schenck DISOMAT and related industrial weighing / control systems | Direct replacement for original power-supply modules |
| Mechanical Interface | Rack-mount chassis with rear multi-pin connector | Matches original Schenck hardware footprint and wiring |
| Electrical Interface | 230 V AC input; +5 V DC and +24 V DC outputs | No additional conversion stages required |
| Status Monitoring | Built-in LEDs for each output rail | Visual confirmation of supply health |
FAQ
What is the Schenck FNT L001?
It is a 100 W AC/DC power supply unit that provides regulated +5 V DC and +24 V DC outputs for Schenck industrial weighing and control systems such as the DISOMAT series.
What are the input requirements?
The unit accepts 230 V AC (+10 % / –20 %) at a frequency of 47–63 Hz.
What outputs does it provide?
It delivers regulated +5 V DC and +24 V DC rails.
How can the output status be checked?
Two front-panel LEDs indicate “5 V OK” and “24 V OK”.
In which systems is the FNT L001 used?
It is used as a power-supply module in Schenck industrial weighing, balancing, and process-control installations, particularly for maintenance of existing DISOMAT-type equipment.
What is the material / order number?
The material number is K002070.01.
