Product Introduction
The Schneider Electric Modicon 140DAO85300 is a high-density 32-point discrete AC output module engineered for the Modicon Quantum PLC platform. Designed for applications requiring high point counts in a compact rack footprint, it utilizes solid-state Triac switching to drive field devices operating between 24V AC and 230V AC.
Arranged into four isolated groups of eight points each, the 140DAO85300 maximizes backplane real estate while maintaining robust optical isolation between field circuits and system logic. Front-panel LED indicators provide clear, channel-by-channel diagnostic feedback for rapid on-site troubleshooting.
Key Technical Specifications
| Parameter | Specification Details |
| Module Type | High-Density Discrete AC Output Module (Triac) |
| Part Number | 140DAO85300 |
| Manufacturer | Schneider Electric / Modicon |
| Platform Compatibility | Modicon Quantum Backplane Racks |
| Number of Channels | 32 Channels (4 Groups of 8 Channels) |
| Operating Voltage Range | 24 to 230 VAC (47–63 Hz) |
| Maximum Current per Point | 0.5 A continuous per channel |
| Maximum Current per Group | 4 A max per group of 8 points |
| Surge / Inrush Current | 10 A for 10 ms |
| Leakage Current (OFF State) | ≤ 2 mA at 230 VAC |
| Response Time | OFF-to-ON: ≤ 1 ms / ON-to-OFF: ½ AC cycle max |
| Isolation Rating | 1780 VAC for 1 minute (Field-to-Bus & Group-to-Group) |
| Bus Current Requirement | ~400 mA max at 5.1V DC (from backplane) |
| Terminal Block | 140XTS00200 (40-pin screw) or 140XTS00201 (40-pin spring) |
Application Scenarios & Field Experience
The 140DAO85300 is ideal in facilities with dense control panel wiring where panel space is at a premium and individual output current requirements are moderate.
- Annunciator & Status Indicator Panels: Driving dense banks of 115V/230V AC panel pilot lights and alarm horns.
- Small Solenoid & Valve Manifolds: Controlling low-power 230V AC pneumatic or hydraulic pilot valves.
- Interposing Relay Interfaces: Actuating 230V AC interposing relay coils in high-density Motor Control Centers (MCCs).
- HVAC & Environmental Control: Managing multizone damper actuators and fan starter interlocks across commercial or industrial skids.
Field Case Study: A plant retrofit required adding 28 new 230V AC status indicators to a main operator desk, but the Quantum chassis had only one spare slot remaining. Upgrading from two lower-density 16-point cards (140DAO84000) to a single 32-point 140DAO85300 freed up a backplane slot for future analog expansion while meeting all physical wiring requirements.

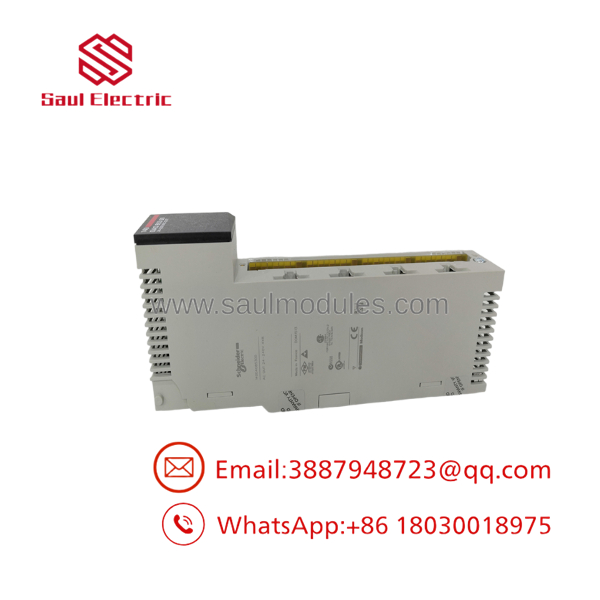

140DAO85300

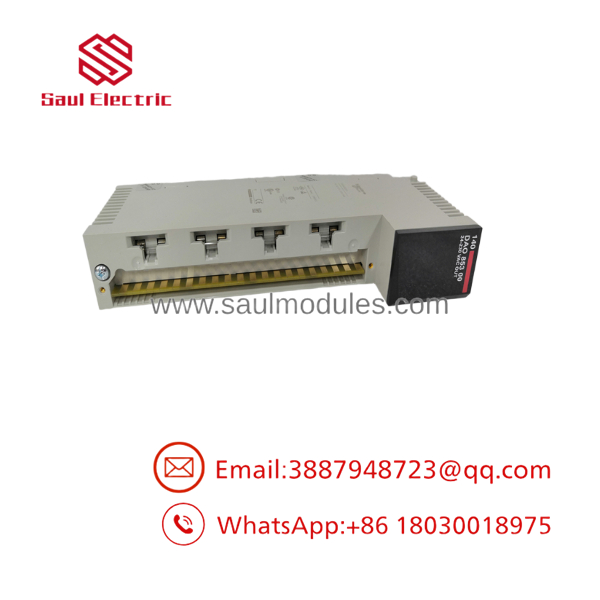

140DAO85300

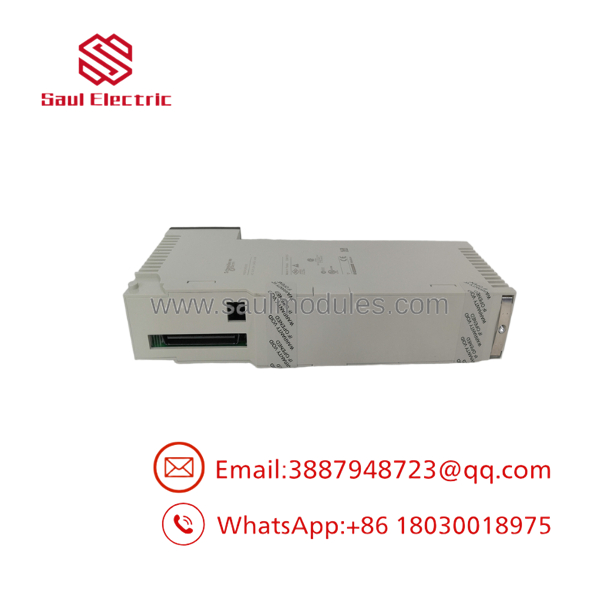

140DAO85300
Quality Assurance & Testing Procedure
Every surplus 140DAO85300 module undergoes a complete 32-point live-load testing protocol prior to dispatch:
- Visual & Structural Audit: Inspecting backplane pins, housing latches, and 40-pin connector terminal guides for physical integrity.
- Backplane Handshake & Power-On Test: Seated in a Quantum test chassis to confirm proper 5.1V bus current draw (~400 mA) and system handshake.
- 32-Channel Load Switching Test: Injecting a simulated 230V AC load across all 32 output channels individually to verify Triac activation, low-leakage off-state behavior, and LED illumination.
- Group Isolation Test: Verifying optical isolation across all 4 independent output groups (8 points per group) at high AC potential.
- ESD-Safe Packaging: Cleaned, static-shielded, and packaged in custom protective foam cradles.
Technical Field Tips & Traps
- ⚠️ Lower Per-Channel Current Rating: Unlike the 16-point 140DAO84000 (which allows up to 2A per channel), the high-density 140DAO85300 supports only 0.5A continuous per channel (and 4A max per 8-point group). Do not use this module to directly drive large NEMA size 3+ contactors without an interposing relay.
- ❗ Off-State Triac Leakage: Triacs naturally leak a tiny amount of off-state current (≤ 2 mA). If connected to extremely light loads (like high-impedance LED indicators), the load may remain dimly lit or fail to turn off completely. A parallel load resistor (bleeder resistor) will resolve off-state floating voltages.
- ⚠️ AC Power Only: Because Triacs depend on the zero-crossing of an AC wave to turn off, connecting DC power to this card will cause the Triac to lock ON permanently until power is cut. For DC switching, use a DC module such as the 140DDO35300.
- ❗ Group Power Wiring: Channels are arranged in 4 groups of 8 (Points 1–8, 9–16, 17–24, 25–32). Each group has its own independent L1/L2 supply feeds, allowing different AC voltages or separate fused feeds across different groups on the same module.
Frequently Asked Questions
Q: What is the main difference between 140DAO84000 and 140DAO85300?
A: The 140DAO84000 has 16 channels (4 groups of 4) rated for up to 2A per channel. The 140DAO85300 doubles the density to 32 channels (4 groups of 8) but has a lower per-channel current limit of 0.5A.
Q: Which terminal block does the 140DAO85300 use?
A: It uses the standard Quantum 40-pin terminal block—either the 140XTS00200 (screw terminal) or 140XTS00201 (spring clamp).
Q: Can I replace this module without turning off the Quantum rack power?
A: Yes, Quantum modules support RIUP (Removal and Insertion Under Power). However, ensure field AC voltage to the terminal block is isolated before unplugging the wiring connector.
Q: How is this module configured in Unity Pro / EcoStruxure Control Expert?
A: Select 140DAO85300 from the discrete output module library in the hardware catalog, assign it to your rack/slot, and map the 32 discrete output bits (%Q) to your program variables.
