Product Introduction & Engineering Value
The Schneider Electric 140XBP00600 is the physical backplane at the center of a six-slot Modicon Quantum rack. It provides the module mounting positions and electrical interconnection between compatible Quantum modules. Unlike a processor or I/O card, it contains no application logic; its job is to provide the rack infrastructure on which the controller and I/O architecture depend.
That distinction matters during troubleshooting. A defective backplane can create symptoms that look like multiple failed modules—intermittent communication, missing modules, rack faults, or unstable I/O—because several cards share the same backplane infrastructure.
Technical Specifications
| Specification | 140XBP00600 |
|---|---|
| Product family | Modicon Quantum Automation Platform |
| Component type | Rack backplane |
| Free slots | 6 |
| Supported application | Local I/O |
| Supported application | Remote I/O |
| Supported application | Distributed I/O |
| Mounting support | Mounting plate |
| Fixing method | Screw |
| Net weight | 0.64 kg |
| Rack dimensions | Approximately 265 × 290 mm |
| Safety classification | Non-interfering |
| Package quantity | 1 piece |
Schneider documentation gives the six-slot configuration, mounting arrangement, 0.64 kg net weight, and approximately 265 × 290 mm backplane dimensions.
Rack Capacity
The six positions are intended for compatible Quantum modules. The 140XBP00600 should therefore be treated as rack infrastructure, not as a generic six-position mounting rail.
The exact module arrangement still needs to be checked against the Quantum hardware configuration, power-budget requirements, processor/remote-I/O architecture, and applicable safety configuration.

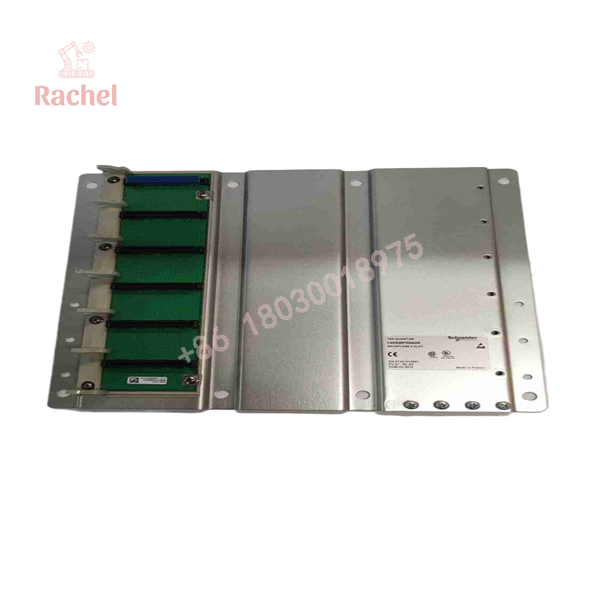

140XBP00600
Field Application & “Trench” Experience
Example: Intermittent Quantum Rack Fault
A plant has an older Quantum controller with several I/O modules installed on a 140XBP00600. One analog module intermittently disappears from the controller configuration. The maintenance team initially replaces the analog card. The fault returns two weeks later.
A better troubleshooting sequence is:
- Check whether the fault follows the module when moved to an approved spare position.
- Inspect the module connector and backplane mating interface.
- Check rack mounting and mechanical alignment.
- Inspect for contamination, corrosion, or damaged contacts.
- Compare the behavior of other modules sharing the same backplane.
- Replace the backplane only after confirming that the module itself and field wiring are not responsible.
When several apparently unrelated modules begin generating intermittent rack-level symptoms, backplane integrity deserves investigation.
Niche Applications
- Legacy refinery process-control racks — maintaining Quantum I/O infrastructure without changing the existing control architecture.
- Power-generation auxiliary systems — six-slot local or remote I/O racks where a failed backplane can extend downtime disproportionately.
- Continuous-process plants with centralized spare stores — maintaining replacement rack infrastructure for older Quantum installations.
QA & Testing SOP
A backplane does not receive the same functional test as an intelligent I/O module, so inspection should concentrate on its mechanical and electrical integrity.
Recommended Receiving Inspection
1. Part-number verification
Confirm the marking is exactly:
140XBP00600
Do not assume similarly sized Quantum backplanes are interchangeable.
2. Mechanical inspection
Check:
- Slot connectors
- Connector alignment
- Mounting holes
- PCB and carrier condition
- Signs of impact or deformation
- Corrosion or contamination
3. Contact inspection
Inspect the module mating contacts for oxidation, contamination, bent contacts, or physical damage.
4. Rack assembly test
Where practical, install known-good compatible Quantum hardware and verify that the rack establishes normal communication and module recognition.
5. Documentation
For New Surplus or Refurbished inventory, record:
- Exact catalog number
- Serial/lot information where available
- Physical condition
- Test status
- Supplier warranty
- Packaging condition
A supplier claiming “tested” should ideally specify whether the backplane was actually installed and electrically verified rather than merely visually inspected.
⚠️ Veteran’s Tech Trap Guide
⚠️ Trap 1 — Confusing the backplane with the complete rack assembly
The 140XBP00600 is the backplane. It is not a processor, power supply, I/O module, or complete PLC rack.
If procurement needs a complete Quantum rack assembly, additional hardware may be required.
⚠️ Trap 2 — Assuming every six-slot Schneider backplane is equivalent
The catalog number matters.
The 140XBP00600 belongs to the Quantum architecture. Schneider’s modernization documentation maps it to newer X80 hardware, but the migration involves architectural changes.
⚠️ Trap 3 — Treating BMXXBP0600 as a physical drop-in replacement
Schneider lists BMXXBP0600 as the recommended replacement for 140XBP00600. However, BMXXBP0600 belongs to the Modicon X80/M340 architecture, not the original Quantum architecture.
PRO TIP: If the plant needs to keep an existing Quantum rack operating, purchase the exact 140XBP00600 rather than substituting BMXXBP0600 solely because both are described as six-slot backplanes.
Lifecycle & Spare-Inventory Strategy
Lifecycle status is region-dependent. Schneider’s U.S. site lists the 140XBP00600 as discontinued December 31, 2022, with end of standard service scheduled for December 31, 2030. Other Schneider regional sites show different discontinuation dates, although the same BMXXBP0600 replacement is generally identified.
For a plant still dependent on Quantum hardware, the backplane deserves more attention than its relatively simple function suggests.
Recommended Spare Policy
- Keep at least one tested 140XBP00600 for each critical Quantum architecture where a rack failure could create extended downtime.
- Consolidate spare stock across sites when the rack configuration is identical.
- Separate New Surplus, New Open Box, Refurbished, and Used inventory in the ERP system.
- Inspect connector condition before putting long-stored units into service.
- Track the quantity of installed six-slot racks so spare requirements can be calculated from actual installed-base exposure.
- Begin X80/M340/M580 migration planning rather than treating surplus Quantum hardware as an indefinite supply source.
Dynamic FAQ
What is Schneider 140XBP00600?
It is a six-slot Modicon Quantum rack backplane used for local, remote, and distributed I/O configurations.
How many modules does the 140XBP00600 support?
It provides six module slots. The actual usable rack configuration depends on the specific Quantum hardware architecture and module requirements.
What replaces the 140XBP00600?
Schneider identifies BMXXBP0600 as the recommended replacement. However, this is an X80/M340-family backplane, so it should be considered part of a migration rather than assumed to be a direct Quantum replacement.
Is 140XBP00600 discontinued?
Yes. Schneider’s U.S. listing gives December 31, 2022 as the discontinuation date and December 31, 2030 as the end-of-service date. Regional lifecycle dates differ.
Can I buy a New Surplus 140XBP00600?
Yes, New Surplus inventory can still exist even though the manufacturer has discontinued commercial sales. The important distinction is that New Surplus does not necessarily mean currently manufactured. Require photographs of the actual label and confirmation of condition, packaging, and warranty before purchasing.
What warranty should I expect?
Warranty depends on the supplier and product condition. For example, one secondary-market supplier currently lists New Sealed units with a 24-month supplier warranty, but that is the seller’s warranty—not evidence of a current Schneider factory warranty.
Bottom Line
140XBP00600 is a six-slot Schneider Electric Modicon Quantum rack backplane weighing approximately 0.64 kg. It supports Quantum local, remote, and distributed I/O configurations and is classified in Schneider’s Quantum catalog as a non-interfering rack.
For an operating Quantum installation, the key procurement point is simple: do not substitute a modern six-slot X80 backplane merely because the physical description looks similar. Schneider’s BMXXBP0600 recommendation represents a platform transition, not an automatic plug-in replacement.
