Description
Product Introduction & Engineering Value
The Schneider Electric 140XBP01000 is the 10-slot backplane used to build larger Modicon Quantum I/O racks. It provides the common mechanical and electrical interface for compatible Quantum modules. Unlike a CPU, power supply, or communication module, it does not execute control logic; its importance is infrastructure-level. A damaged or intermittent backplane can affect several installed modules simultaneously.
For maintenance teams supporting legacy Quantum installations, this is a strategic spare rather than an ordinary low-cost mechanical component. Schneider has discontinued the part in multiple regions and recommends BMEXBP0800, an eight-slot Modicon X80 Ethernet backplane, as its replacement. That recommendation represents a platform migration and should not be interpreted as a direct physical or functional substitution.
Technical Specifications
| Specification | 140XBP01000 |
|---|---|
| Product family | Modicon Quantum automation platform |
| Component type | Rack backplane |
| Free slots | 10 |
| Application | Local I/O modules |
| Application | Remote I/O modules |
| Application | Distributed I/O modules |
| Mounting support | Mounting plate |
| Fixing mode | Screw |
| Product weight | 1.0 kg / 2.204 lb |
| Approx. package dimensions | 535 × 295 × 47 mm |
| Rack safety classification | Non-interfering |
| Typical rack accessories | Rack expansion module and expansion cables |
The published Schneider datasheet confirms 10 free slots, mounting-plate installation, screw fixing, and a 1 kg product weight. The Quantum catalog also identifies the 140XBP01000 as a non-interfering rack.
Rack Architecture
The Quantum family includes several backplane sizes:
- 140XBP00300 — 3 slots
- 140XBP00400 — 4 slots
- 140XBP00600 — 6 slots
- 140XBP01000 — 10 slots
- 140XBP01600 — 16 slots
The 140XBP01000 therefore occupies the middle position between the six-slot and 16-slot Quantum rack configurations. Schneider’s catalog also lists 140XBE10000 as a rack expansion module and several 140XCA-series cables for rack expansion.

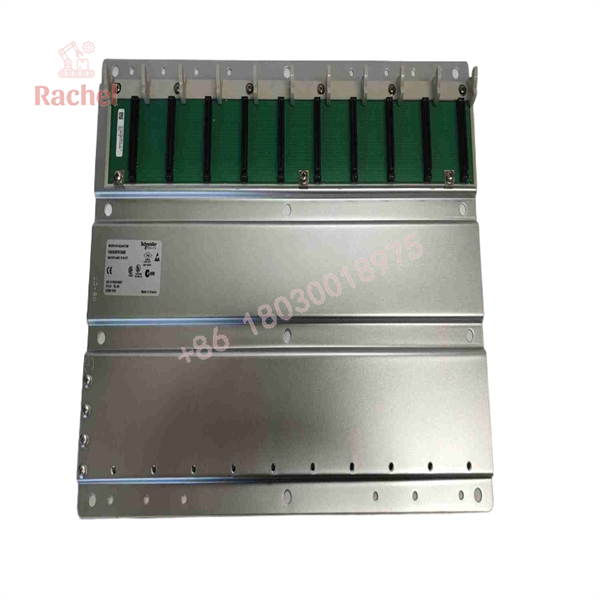

140XBP01000
Field Application & “Trench” Experience
Example: Intermittent Multi-Module Rack Failure
Consider a legacy water-treatment or process-control installation using a 10-slot Quantum rack. Several discrete and analog modules begin intermittently disappearing from the controller configuration.
Replacing individual I/O modules produces no lasting improvement.
A more disciplined diagnostic sequence is:
- Check whether multiple affected modules share the same backplane.
- Inspect module seating and connector engagement.
- Check the rack for mechanical distortion or mounting stress.
- Inspect contacts for oxidation, contamination, or physical damage.
- Verify rack power and grounding conditions.
- Test affected modules in an approved known-good rack position where practical.
- If multiple known-good modules exhibit the same symptom in the same rack, investigate the 140XBP01000 backplane.
This is a classic legacy-system troubleshooting pattern: when several independent modules fail in a coordinated manner, the common infrastructure should be investigated before replacing more cards.
Niche Applications
- Refinery process-control I/O racks — maintaining established Quantum installations where a rack-level failure can interrupt multiple process loops.
- Power-generation auxiliary control — supporting large Quantum I/O assemblies without disturbing the installed control architecture.
- Chemical batch-control systems — retaining a tested 10-slot backplane as a maintenance spare for an aging Quantum rack.
QA & Testing SOP
A backplane does not require the same functional test as an intelligent module. The objective is to establish mechanical integrity and electrical continuity under actual rack conditions.
Recommended Incoming Inspection
1. Catalog-number verification
Confirm the physical marking is exactly:
140XBP01000
Do not accept a visually similar Quantum backplane based only on slot count.
2. Mechanical inspection
Check:
- Module connector alignment
- Connector condition
- PCB/carrier condition
- Mounting holes
- Housing deformation
- Evidence of impact
- Corrosion or contamination
3. Contact inspection
Pay particular attention to the module mating interfaces. Long-term storage in uncontrolled environments can cause oxidation or contamination even when the backplane has never been installed.
4. Functional rack test
Where possible, install known-good compatible Quantum modules and verify normal module recognition and rack operation.
5. Documentation
For New Surplus or Refurbished inventory, record:
- Exact catalog number
- Serial/lot information if present
- Physical condition
- Test procedure
- Test date
- Packaging status
- Supplier warranty
For a spare intended for a critical PLC rack, “tested” should mean more than a visual inspection.
⚠️ Veteran’s Tech Trap Guide
⚠️ Trap 1 — Confusing 140XBP01000 with a complete PLC rack
The 140XBP01000 is only the backplane.
It does not include:
- CPU
- Power supply
- I/O modules
- Communication modules
- Field wiring terminals
Procurement should therefore specify the exact backplane catalog number rather than simply ordering a “10-slot Quantum rack.”
⚠️ Trap 2 — Assuming BMEXBP0800 is a direct replacement
Schneider recommends BMEXBP0800, an eight-slot Ethernet backplane from the Modicon X80 family.
That is an important distinction:
140XBP01000 = Quantum, 10 slots
BMEXBP0800 = X80, 8 slots, Ethernet backplane
The change involves both platform and slot capacity. Existing Quantum hardware cannot simply be transferred to the new backplane and assumed to operate.
⚠️ Trap 3 — Ignoring rack expansion hardware
For larger Quantum installations, the backplane may be part of an expanded rack architecture. Schneider’s Quantum catalog identifies 140XBE10000 as the rack expansion module and 140XCA71703/71706/71709 as expansion cables of different lengths.
PRO TIP: Before removing an existing backplane, photograph the complete rack arrangement and label every module position. On a 10-slot legacy rack, position-dependent I/O documentation can save considerable commissioning time.
Lifecycle & Spare-Inventory Strategy
The lifecycle date is not identical in every Schneider sales region. For example, Schneider’s Ireland page currently shows commercialization ending December 31, 2030, while the UAE page records discontinuation on February 23, 2026 and end of service on December 31, 2030. Other regional pages show earlier discontinuation dates.
The common point is that the 140XBP01000 is a legacy Quantum component, and Schneider identifies BMEXBP0800 as its recommended replacement.
Recommended Spare Strategy
For an operating Quantum installation:
- Maintain at least one tested 140XBP01000 for each critical rack architecture.
- Prioritize plants where a rack failure can simultaneously remove multiple I/O modules.
- Track installed rack quantities by site.
- Separate New Surplus, New Open Box, Refurbished, and Used stock in the inventory system.
- Inspect connector condition before placing long-stored units into service.
- Record supplier warranty independently from Schneider’s manufacturer lifecycle status.
- Begin migration engineering before the remaining Quantum spare market becomes difficult to source.
For a plant with multiple identical 10-slot racks, a centralized spare pool can reduce carrying cost while maintaining coverage—provided the racks use compatible configurations.
Dynamic FAQ
What is Schneider 140XBP01000?
It is a 10-slot Modicon Quantum rack backplane intended for local, remote, and distributed I/O modules.
How many Quantum modules can the 140XBP01000 hold?
The backplane provides 10 free module slots. The actual rack configuration must still account for the specific Quantum processor, power supply, I/O, communication, and expansion requirements.
What replaces the 140XBP01000?
Schneider currently identifies BMEXBP0800, an eight-slot Ethernet backplane for the Modicon X80 platform, as the recommended replacement.
Is BMEXBP0800 a drop-in replacement?
No. The slot count is different, and it belongs to the Modicon X80 architecture rather than the original Quantum backplane family. Treat it as part of a migration project, not as a direct hardware swap.
Can I still purchase a New Surplus 140XBP01000?
Potentially. Although the manufacturer has discontinued the product in various regions, previously manufactured New Surplus inventory can remain available through industrial automation suppliers. Verify the exact catalog number, actual unit condition, photographs, and warranty before purchase.
What warranty should I expect?
Warranty depends on the seller and condition. A New Surplus unit sold by a secondary-market supplier may carry a supplier warranty; that does not automatically constitute a current Schneider factory warranty. Request the warranty terms in writing before placing a purchase order.
Bottom Line
140XBP01000 is the 10-slot Schneider Electric Modicon Quantum rack backplane, rated at approximately 1.0 kg and designed for local, remote, and distributed Quantum I/O configurations.
For legacy Quantum plants, it is a sensible high-criticality infrastructure spare because a backplane failure can affect multiple modules at once. Schneider’s recommended replacement should be treated as an X80 migration component—not as a direct substitute for the existing 10-slot Quantum rack.
