Description
Product Introduction
The Schneider Electric Modicon 170BAI03600 is an 8-channel single-ended analog input base module belonging to the modular Modicon Momentum platform. Designed for compact distributed control applications, it acts as the terminal foundation where analog field instrumentation—such as pressure transmitters, flow meters, level sensors, and temperature transducers—connects to the automation network.
By snapping a Momentum Communication Adapter (e.g., Modbus TCP, Interbus, PROFIBUS) or a Momentum M1 Processor Adapter onto the 170BAI03600 base, operators can build custom, low-profile distributed I/O nodes without needing external rack backplanes.
Key Technical Specifications
| Parameter | Specification Details |
| Module Type | Analog Input Base Module (Momentum Platform) |
| Part Number | 170BAI03600 |
| Manufacturer | Schneider Electric / Modicon |
| Number of Channels | 8 Single-Ended Channels |
| Input Signal Types | Current: 4–20 mA, 0–20 mA / Voltage: 0–10V, 1–5V, ±10V, ±5V |
| Analog Resolution | 12-Bit (4096 counts) |
| Input Impedance | Current mode: ~250 Ω / Voltage mode: > 1 MΩ |
| Nominal Supply Voltage | 24V DC (19.2 to 30V DC operating window) |
| Isolation Rating | 500V DC Channel-to-Bus Isolation |
| Conversion Time | ~4 ms per active channel update |
| Status Indicators | LED Status for Module Run, Channel Fault, and Power |
Application Scenarios & Field Experience
The 170BAI03600 is used in space-constrained control enclosures, OEM equipment skids, and distributed process monitoring networks.
- Pumping Stations & Tank Farms: Gathering 4–20 mA pressure and level transmitter readings for local station control or remote SCADA telemetry.
- HVAC & Environmental Monitoring: Interfacing 0–10V dampers, duct humidity sensors, and airflow transmitters to building automation controllers.
- OEM Packaging Machinery: Reading analog tension feedback, position sensors, and speed reference signals.
Field Case Study: A municipal pump skid experienced erratic analog level readings caused by ground loop interference across long sensor cable runs. Replacing a damaged terminal base with a fully bench-tested 170BAI03600 and wiring the 24V DC loop supply through dedicated ground references stabilized the 4–20 mA signals, delivering steady level control across all three wet wells.

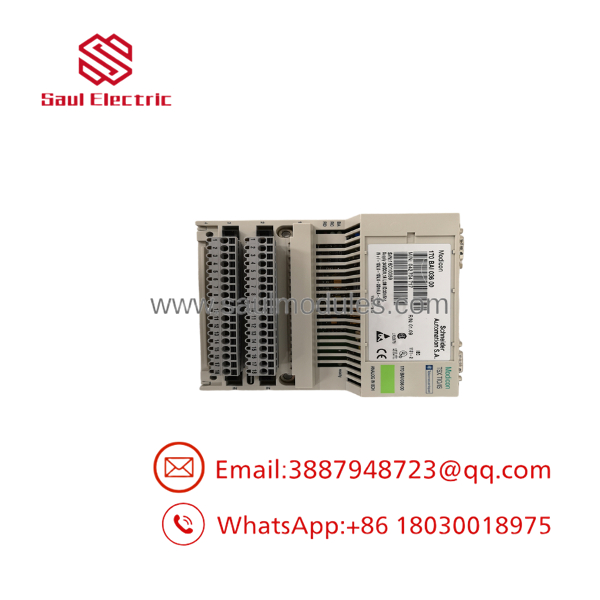

170BAI03600

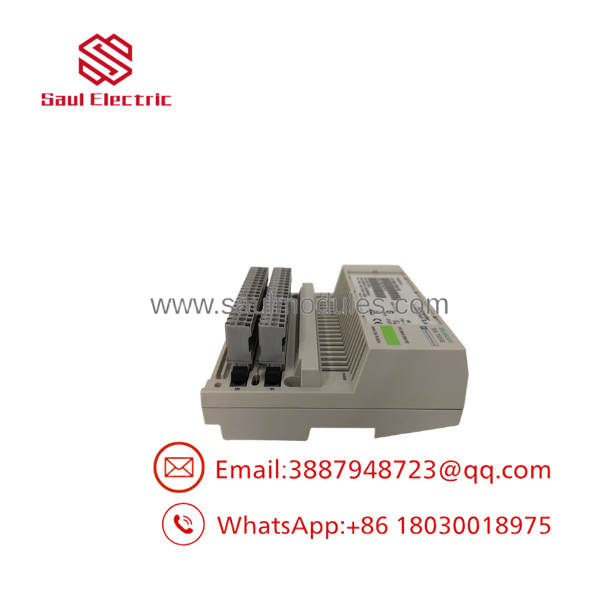

170BAI03600

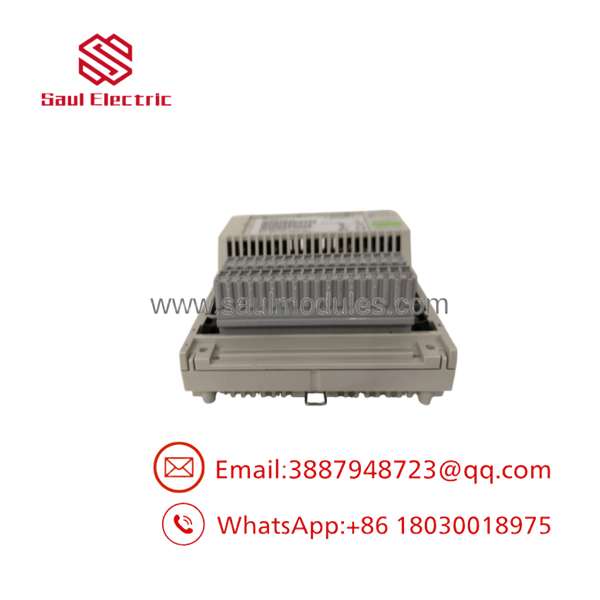

170BAI03600
Quality Assurance & Testing Procedure
Every surplus 170BAI03600 Momentum base module undergoes a full live-signal testing sequence prior to shipment:
- Visual & Structural Audit: Inspecting top-adapter connection pins, DIN-rail mounting clips, and terminal strip mounting guides for physical integrity.
- Adapter Interface Test: Snapping a test processor/communication adapter onto the base to verify bus connector contacts and handshake initialization.
- 8-Channel Analog Injection Test: Injecting precision 0–10V and 4–20 mA current loops across all 8 channels individually to verify 12-bit conversion accuracy, linearity, and channel response.
- Power Supply & Isolation Check: Testing 24V DC field input terminals for voltage tolerance and 500V DC bus isolation.
- ESD-Safe Packaging: Cleaned, static-shielded, and packaged in custom protective foam cradles.
Technical Field Tips & Traps
- ⚠️ Single-Ended vs. Differential Inputs: The 170BAI03600 features single-ended inputs sharing a common return. If your field sensors are unisolated and grounded at different potentials, ground loops can cause measurement offsets. For isolated/differential requirements, consider differential analog base variants.
- ❗ Jumpering for Current vs. Voltage: Ensure channel range selection jumpers or software configuration settings match your field wiring (current vs. voltage). Applying a 10V signal to a channel set for 4–20 mA current mode can overheat internal precision shunt resistors.
- ⚠️ Top Adapter Required: The 170BAI03600 is an I/O base block only—it cannot function on its own. It requires a top-mounted Momentum CPU module (e.g., 171CCC98020) or Communication Adapter (e.g., 170ENT11000 Modbus TCP adapter) to transmit data.
- ❗ Terminal Strip Wiring: Momentum bases use removable terminal strips (sold separately or reused from existing installations). Double-check wire terminal torque to prevent high-resistance contact errors on delicate 4–20 mA loops.
Frequently Asked Questions
Q: What is the main difference between 170BAI03600 and 170AAI14000?
A: The 170BAI03600 provides 8 single-ended analog inputs supporting both voltage and current ranges, whereas the 170AAI14000 offers 16 single-ended channels specifically tailored for standard current/voltage loops.
Q: Which communication adapters work with the 170BAI03600?
A: All standard Momentum option adapters are compatible, including Modbus TCP (170ENT11000), Modbus RTU (170NEF11000), Interbus, PROFIBUS, and Momentum M1 PLC processor adapters.
Q: Does the 170BAI03600 supply 24V DC loop power to 2-wire transmitters?
A: The base accepts a 24V DC power feed to operate its internal electronics, but 2-wire field loops usually require auxiliary 24V DC wiring routed through the terminal strip commons.
Q: Can I replace a 170BAI03600 base under power?
A: It is best practice to power down the 24V DC field supply and remove the top communication adapter before unclipping the base module from the DIN rail to prevent bus communication glitches.
