Schneider Modicon 140CHS11000 16-Channel High-Speed Counter Module

Description

Product Introduction

The Schneider Electric Modicon Quantum 140CHS11000 is a dedicated high-speed counting and positioning module designed for applications where standard PLC scan cycles are too slow to capture fast pulse trains. Operating independently of the Quantum CPU’s main program execution, it processes pulse inputs directly from incremental optical encoders, proximity sensors, and flow meters at frequencies reaching up to 500 kHz.

Engineered for precision motion, batching, and high-speed cut-to-length systems, the 140CHS11000 features onboard fast digital outputs that trigger immediate control actions based on real-time count thresholds. By offloading time-critical counting tasks from the main CPU backplane loop, it delivers microsecond-level response times while maintaining complete integration with the Quantum rack.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

The Trench Story: It is 11:30 PM on a high-speed bottling line. The rotary labeling machine starts misaligning labels by 2 to 3 inches at full speed, causing dozens of jammed bottles every minute. The technician verifies the optical encoder on the main carousel is spinning fine, but the PLC isn’t registering high-frequency pulse trains accurately during acceleration bursts. The channel optocoupler on the legacy 140CHS11000 counter card has degraded, dropping pulses at speeds above 100 kHz. Swapping the failing module with a fully bench-tested replacement restores sub-millisecond pulse tracking and gets the labeling line back to full production before the morning shift arrives.

Application Scenarios:

• High-Speed Packaging & Bottling: Tracking conveyor encoders for bottle registration, fill-level triggers, and high-speed labeling.
• Material Handling & Rotary Shears: Managing real-time position feedback for flying cut-to-length saws and metal stamping feeds.
• Turbine & Pump Speed Monitoring: Accurately measuring high-frequency tachometer pulses on large rotating equipment for overspeed protection.
• Turbine Metering & Liquid Batching: Registering high-resolution pulse outputs from positive-displacement flow meters in chemical dosing systems.

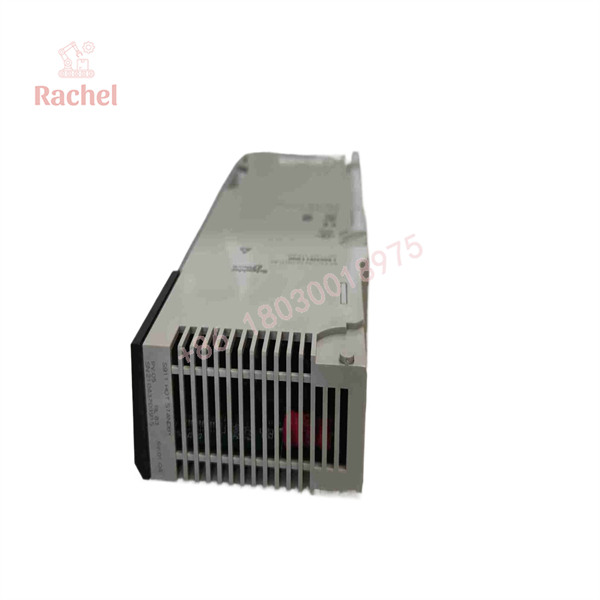

140CHS11000

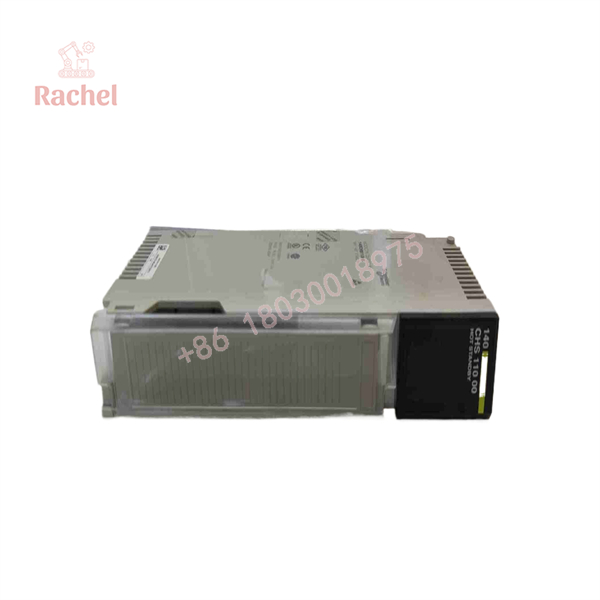

140CHS11000

Transparency SOP: Quality Assurance & Testing

We do not just ship boxes; we test them on actual Modicon Quantum racks. Every 140CHS11000 counter module undergoes a strict 5-step testing procedure before shipment:

1. Inbound Physical Inspection: Multi-point check of connector pins, edge contacts, housing latches, and OEM anti-counterfeit labels.
2. Quantum Bus Handshake: Mounted in a live Quantum rack (e.g., 140CPU65160) to verify module recognition, power rail stability, and diagnostic status LEDs.
3. High-Frequency Signal Injection: Injecting variable pulse trains (from 10 Hz up to 500 kHz) via a precision signal generator to verify edge detection accuracy across all input modes (Up/Down and Quadrature).
4. Fast Output Trigger Validation: Testing internal hardware comparator logic to ensure onboard fast outputs switch instantly when programmed counter limits are reached.
5. ESD Clearance & Anti-Static Packaging: Fully cleaned, sealed in static-shielding ESD bags, and packed with custom foam to ensure safe arrival.

The Veteran’s Tech Trap Guide

⚠️ Match your input voltage DIP switches/jumpers! The 140CHS11000 supports different input signal levels (5 VDC TTL vs. 24 VDC industrial inputs). Connecting a 24V encoder signal into inputs set for 5V TTL logic will instantly blow the internal input optical isolators.

❗ Use shielded twisted-pair (STP) cabling for encoder signals. High-frequency pulse lines are notorious for picking up electromagnetic interference (EMI) from nearby VFD motor cables. Noise spikes on your pulse lines will register as extra false counts, causing positioning drift over time. Always ground the shield at the module end only.

⚠️ Check your counting mode configuration in software. Switching from a single-pulse Up/Down configuration to a Quadrature x4 encoder mode changes your pulse resolution quadruply. If your PLC program scaling factors aren’t updated to match, your positioning math will be off by a factor of four.

❗ Observe maximum frequency limits with long cable runs. Cable capacitance degrades sharp pulse square waves into rounded signals over long distances. If your encoder cable exceeds 50 feet, reduce your maximum signal frequency or use 5V differential RS-422 line drivers to maintain sharp pulse edges.

Frequently Asked Questions

Q: Can I hot-swap the 140CHS11000 module while the Quantum rack is powered?

A: Yes, the Quantum platform supports Removal and Insertion Under Power (RIOC). However, always unlatch and pull the removable terminal block (RTB) first to prevent accidental wiring shorts during removal.

Q: Does this card handle differential encoder signals?

A: Yes. The 140CHS11000 can be configured for single-ended or differential (RS-422 style) encoder inputs, which provide superior noise immunity in high-noise environments.

Q: What happens if the counter exceeds its maximum value?

A: Depending on your software configuration (Unity Pro / Concept), the counter can be set to roll over automatically to zero, freeze at its maximum value, or trigger a CPU interrupt signal for fast handling.

Q: Is the terminal block included with the 140CHS11000?

A: Removable Terminal Blocks (RTBs like the 140XTS00200) are typically sold separately unless specifically noted. You can easily reuse your existing terminal block from the module you are replacing.

Q: How do you guarantee the reliability of these discontinued counter cards?

A: Every unit is backed by our full 12-month replacement warranty. We bench-test all pulse input channels using live high-frequency pulse generators before placing modules into stock.
