Schneider Modicon 140DRA84000 16-Channel Relay Output Module

Description

Product Introduction

The Schneider Electric Modicon Quantum 140DRA84000 is a 16-channel electromechanical relay output module engineered to switch high-voltage AC or DC field devices within the Modicon Quantum automation platform. Featuring 16 Normally Open (Form A) dry relay contacts grouped into isolated circuits, it provides physical contact isolation between PLC internal backplane logic and external high-power field loads.

Built for versatile power switching, the 140DRA84000 accommodates a wide voltage envelope ranging from 24 to 230 VAC and 24 to 125 VDC. It eliminates the need for interposing relays when interfacing with motor starters, solenoid valves, horn alarms, and power contactors. High channel-to-bus galvanic isolation shields sensitive CPU hardware from field voltage transients, ensuring reliable discrete switching across legacy industrial installations.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

The Trench Story: It is 4:10 AM at a municipal wastewater treatment facility. Main Influent Pump #2 trips offline following a false run-indication fault. The PLC calls for the motor starter coil to energize, but the output contact remains wide open—channel 4’s electromechanical relay on the legacy 140DRA84000 card has pitted and welded shut after 15 years of heavy cycling. Raw sewage levels are rising toward the emergency spill threshold. The lead technician pulls a pre-tested 140DRA84000 replacement card from spare parts, swaps the module, transfers the removable terminal block, and restores automatic pump control in under 10 minutes.

Application Scenarios:

• Water & Wastewater Control: Driving 120 VAC motor starter coils for heavy influent pumps, mixers, and valve actuators.
• Power Generation Facilities: Switching 125 VDC alarm annunciators, circuit breaker trip coils, and emergency isolation valves.
• Automotive Plant Utilities: Operating 110 VAC hydraulic power unit (HPU) solenoids and industrial stack lights.
• Food & Beverage Processing: Interfacing with interposing contactors on steam valves, pasteurizers, and industrial ovens.

Transparency SOP: Quality Assurance & Testing

We do not just ship boxes; we test them on actual Modicon Quantum backplanes. Every 140DRA84000 relay output module undergoes a strict 5-step validation procedure prior to stocking:

1. Inbound Physical Inspection: Thorough verification of backplane connector pins, mechanical locking latches, plastic housing condition, and OEM serial tags.
2. Quantum Bus Power & Logic Handshake: Seated in an active Quantum rack (e.g., 140CPU65160) to verify backplane bus synchronization and diagnostic LED indicators.
3. 16-Channel Contact Resistance Testing: Injecting test voltages across all 16 Form A contacts to verify low contact resistance (≤ 30 mΩ) and clean physical relay pull-in.
4. Full AC/DC Load-Bank Stress Test: Switching real-world inductive AC and DC loads across all channels for continuous cycling over a 2-hour burn-in period to detect contact bouncing or thermal degradation.
5. ESD Clearance & Safe Packaging: Thoroughly cleaned, treated against static charge, sealed in static-shielding bags, and foam-packed to withstand industrial handling during transit.

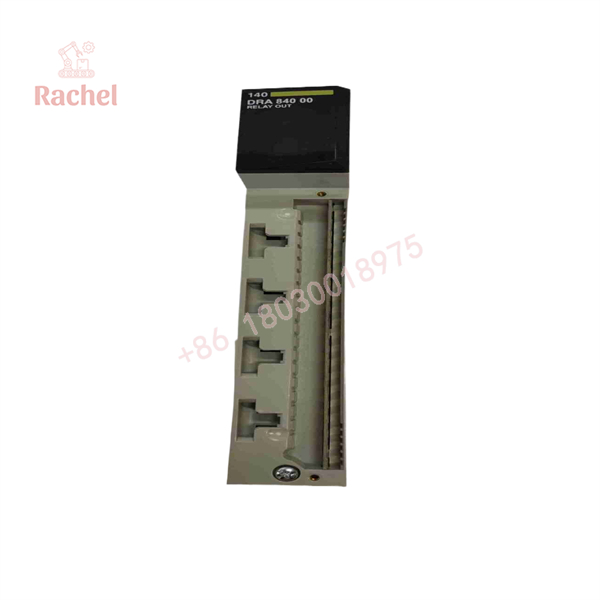

140DRA84000

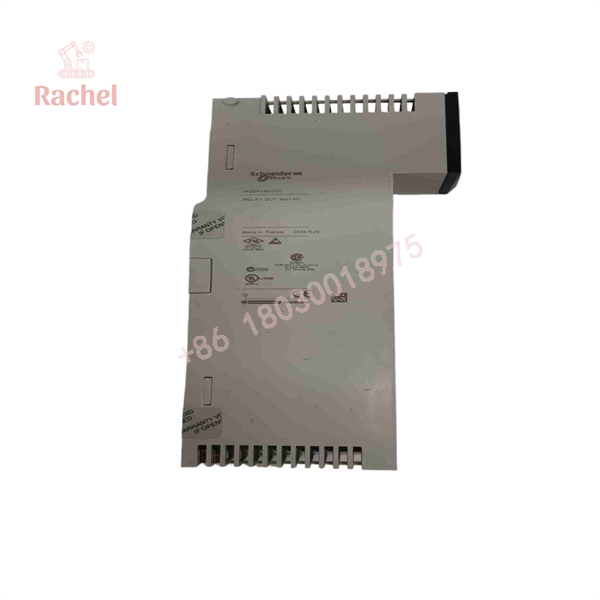

140DRA84000

The Veteran’s Tech Trap Guide

⚠️ Always install arc suppressors across inductive loads! Electromechanical relay contacts wear out primarily due to inductive arcing when switching off solenoid valves, contactors, or brake coils. Installing RC snubbers across AC loads or flyback diodes across DC loads extends contact lifespan tenfold on the 140DRA84000.

❗ Observe the maximum group current limits. While each individual contact can carry up to 2 A continuous, the total maximum current per common group is capped at 5 A. If you wire three 2 A inductive loads to the same common group and energize them simultaneously, you will overheat the internal PCB traces and ruin the card.

⚠️ Mind the mechanical contact lifecycle. Mechanical relays have a finite electrical life (typically 100,000 to 500,000 operations under full load). If your application requires high-frequency switching (e.g., toggling an output every 2 seconds on a high-speed packaging machine), replace this card with a solid-state transistor output module like the 140DDO35300 instead.

❗ Check minimum load requirements. The contacts on the 140DRA84000 require a minimum load of 10 mA at 5 VDC to break through subtle surface oxidation (wetting current). Connecting these contacts directly to high-impedance digital input cards or micro-power sensor circuits can result in intermittent input signal loss over time.

Frequently Asked Questions

Q: Can I hot-swap the 140DRA84000 module while the Quantum rack is powered?

A: Yes, the Quantum platform supports Hot Swap (RIOC – Removal and Insertion Under Power). However, always unlatch and pull the removable terminal block (RTB) first to prevent accidental arcing or unexpected field equipment energization during module extraction.

Q: Are the contacts on the 140DRA84000 dry contacts?

A: Yes. The 140DRA84000 provides unpowered, isolated Form A (Normally Open) dry contacts. You must supply your own external AC or DC field voltage source to power your connected loads.

Q: What is the main difference between the 140DRA84000 and the 140DRA83000?

A: The primary difference lies in contact configuration and grouping. The 140DRA84000 provides 16 Normally Open (Form A) contacts, whereas other variants (such as the 140DRA83000) offer different channel counts or Form C (Normally Open / Normally Closed SPDT) relay configurations.

Q: Does the module include the removable terminal block?

A: Removable Terminal Blocks (RTBs like the 140XTS00200 screw terminal or 140XTS00201 spring terminal) are typically sold separately unless specifically ordered as a bundle. You can easily transfer your existing terminal block to the replacement module.

Q: What warranty coverage do you offer on these discontinued Quantum relay cards?

A: Every unit comes backed by our full 12-month operational warranty. We bench-test all 16 electromechanical contacts under live electrical load conditions prior to shipment to ensure reliable contact closure and low resistance.
