Description
Product Introduction & Engineering Value

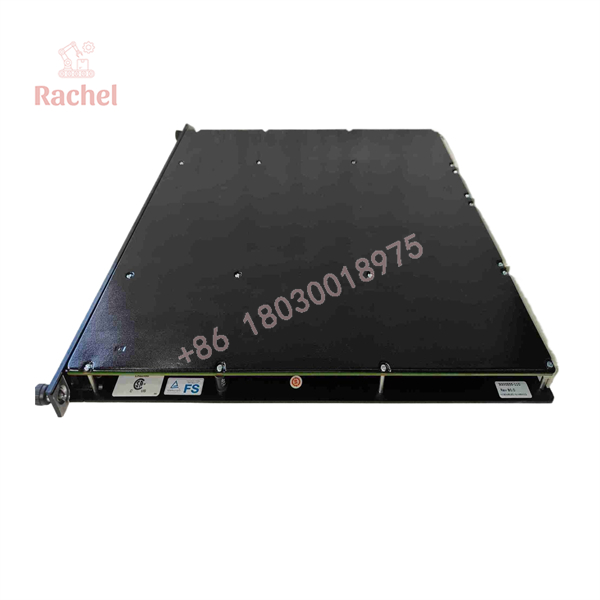

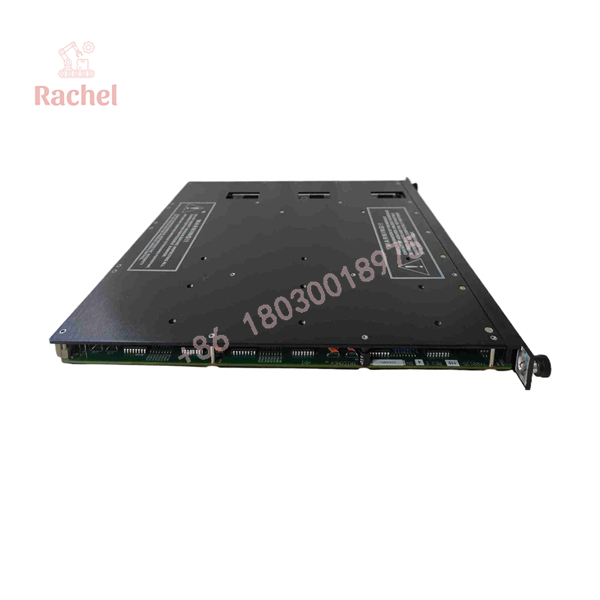

The TRICONEX 3704E is a Triconex digital input module intended for safety-system applications where field discrete signals must be acquired and processed within the Tricon architecture. It belongs to the Tricon I/O family used in high-integrity process control and shutdown applications.
For replacement work, the important issue is not simply matching the part number. Engineers should verify the installed Tricon chassis configuration, module revision, field wiring arrangement, and application-specific I/O requirements before installation. A correct mechanical fit does not automatically guarantee system compatibility.
Technical Specifications
- Manufacturer: Triconex
- Model: 3704E
- Product family: Tricon Safety System
- Module type: Digital Input
- I/O category: Discrete field-signal acquisition
- System architecture: Triple Modular Redundant (TMR)
- Application: Safety instrumented and emergency shutdown systems
- Installation: Tricon system I/O chassis
- Signal interface: Discrete field inputs
- Replacement consideration: Verify hardware revision and system compatibility before substitution
- Maintenance role: Suitable for installed-system spare inventory and module replacement programs
Engineering note: Exact electrical ratings, channel count, terminal assignments, and field-interface characteristics should be confirmed against the applicable Triconex hardware documentation for the specific 3704E revision. Do not assume specifications from another Triconex digital-input model apply to the 3704E.
Field Application & the “Trench” Experience
A refinery shutdown system developed intermittent input discrepancies during a planned maintenance window. The maintenance team initially suspected field wiring because several status indications were changing sporadically. Loop checks eventually isolated the problem to the I/O module position rather than the field devices.
The replacement procedure was handled as a controlled safety-system intervention: module identification was checked against the approved spare, chassis position and wiring were verified, and the affected channels were tested before the system was returned to service. The lesson was simple—part-number verification comes before physical replacement.
Niche applications
- Emergency Shutdown Valve Position Monitoring — monitoring open/closed feedback from critical shutdown valves.
- Compressor Train Trip Logic — acquiring discrete trip and permissive signals from compressor protection equipment.
- Catalytic Cracking Unit Interlock Systems — collecting discrete equipment-status signals used by shutdown and permissive logic.
3704E
3704E
QA & Testing SOP
For New Surplus or Refurbished TRICONEX 3704E inventory, a sensible incoming-quality process includes:
- Identity inspection — confirm model number, labels, revision markings, connectors, and physical condition.
- Visual inspection — examine the PCB, housing, terminals, connector pins, and mounting features for damage or contamination.
- Electrical evaluation — verify applicable power and signal-interface behavior using appropriate test equipment.
- Functional testing — where test fixtures and documentation permit, exercise the module’s relevant I/O functions.
- Final inspection — record test status and preserve traceability before the module enters spare inventory.
Testing should be performed by technicians familiar with Triconex equipment and the applicable safety-system maintenance procedures.
The Veteran’s Tech Trap Guide
⚠️ Trap #1 — Assuming the “E” suffix is irrelevant.
Do not treat 3704E as interchangeable with every similarly numbered Triconex I/O module. Hardware revisions and electrical characteristics matter.
⚠️ Trap #2 — Skipping the wiring verification.
A replacement can physically install while still being wrong for the existing field-interface arrangement. Verify terminal assignments against the actual system documentation.
⚠️ Trap #3 — Testing only the module.
A module can pass a bench test and still expose an installation problem. After replacement, perform the required channel-level checks and validate the expected system indications.
PRO TIP: Record the removed module’s complete identification information—including model, revision, and any visible hardware markings—before ordering the replacement. This greatly reduces the chance of receiving a superficially similar but incompatible spare.
Dynamic FAQ
Q: What is the TRICONEX 3704E used for?
A: It is a Triconex digital input module used to acquire discrete field signals within Tricon safety-system applications.
Q: Is the 3704E suitable as a direct replacement for another Triconex digital input module?
A: Not automatically. Confirm the exact part number, hardware revision, electrical characteristics, chassis configuration, and approved system documentation before substitution.
Q: Can a New Surplus TRICONEX 3704E be installed directly into a live safety system?
A: Installation should follow the site’s approved maintenance and safety procedures. New Surplus describes inventory condition; it does not eliminate the need for application and compatibility verification.
Q: What should I provide when requesting a replacement 3704E?
A: Provide the complete model number, revision information if available, quantity required, and the identification details from the currently installed module.
Q: How do you distinguish New Surplus from refurbished inventory?
A: New Surplus generally refers to unused original equipment that has entered secondary-market inventory. Condition and packaging should be verified with the supplier. Refurbished units have undergone a restoration or testing process.
Q: What warranty should I expect?
A: Warranty terms vary by supplier and inventory condition. Confirm the warranty period, DOA policy, testing coverage, and return conditions before purchase.
