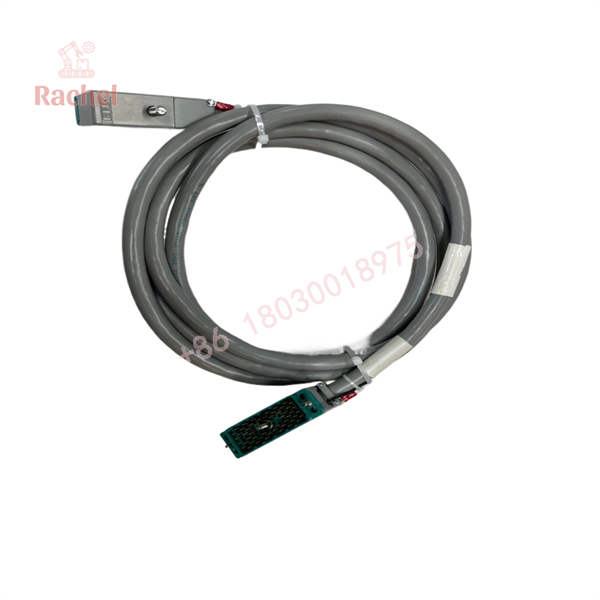

TRICONEX 4000206-530 Cable Assembly

Description

Product Introduction & Engineering Value

The TRICONEX 4000206-530 is an interface cable assembly used within the Tricon safety-system field-termination architecture. Its identification is particularly important because the 4000206 family contains multiple suffixes, and the suffix determines the specific cable configuration. The available Tricon CX documentation explicitly lists 4000206-5xx among interface cables used with analog-input termination arrangements.

This is a component where guessing is a bad maintenance practice. A cable can have the correct family number but still have the wrong termination or pin assignment. For a replacement order, match 4000206-530 against the existing cable label and the system’s field-termination drawing.

Technical Specifications

The Tricon CX Field Terminations Guide lists 4000206-5xx as the interface-cable family for 2760-2 and 2760-8 analog-input termination panels associated with the 3704E I/O module. The guide does not establish that every 4000206-5xx suffix is interchangeable.

That distinction is critical: 4000206-510, -530, and other suffixes should not be treated as interchangeable without documentation.

Field Application & the “Trench” Experience

A typical maintenance problem starts with an analog-input fault that looks like an I/O-module problem. The control engineer sees abnormal values from several channels and checks the 3704E or associated termination hardware. The I/O module itself may be functioning correctly; the actual problem can be further down the interface path.

For a replacement involving 4000206-530, the technician should first document the complete cable routing and both connector ends. The old cable is then removed only after the termination-panel and I/O-module relationship has been confirmed. The replacement cable is compared against the original before energization.

This approach matters in a Tricon SIS because a cable mismatch can affect multiple process signals simultaneously.

Specific application scenarios

• 2760-series analog-input termination: the Tricon CX documentation identifies the 4000206-5xx cable family with 2760-2 and 2760-8 analog-input termination panels.
• 3704E analog input architecture: the same documentation associates those termination arrangements with the 3704E I/O module.
• Legacy Tricon cabinet maintenance: replacing a damaged interface cable while retaining the existing I/O module and termination architecture.

4000206-530

Transparency SOP: QA & Testing

For New Surplus stock, I would use the following receiving procedure:

1. Verify the exact suffix.
Confirm the label reads 4000206-530, not merely 4000206-5xx.

2. Compare both connectors.
Check connector geometry, keying, contact arrangement, locking hardware, and orientation against the removed cable.

3. Check cable construction.
Inspect the jacket, strain relief, backshells, and connector molding for cracking, crushing, abrasion, or chemical exposure.

4. Perform continuity testing.
Use the approved Tricon wiring documentation to verify conductor-to-conductor continuity and identify any unexpected cross-connections.

5. Confirm the system drawing.
Match the cable against the exact termination-panel and I/O-module combination before installation.

6. Complete a controlled loop test.
After installation, verify the affected analog channels according to the plant’s approved SIS maintenance and proof-test procedure.

For safety-system equipment, a cable should not be considered acceptable merely because it passes a basic continuity test.

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — The “-530” suffix matters.

The documentation identifies a 4000206-5xx family, not one universal cable. Do not substitute 4000206-510, 4000206-530, or another suffix solely because the first seven digits match.

⚠️ Trap #2 — Don’t infer the pinout from the cable family.

The publicly available documentation establishes the family application but does not provide enough evidence here to safely publish the exact 4000206-530 pinout. Use the applicable Tricon field-termination drawing.

PRO TIP: Photograph the original cable label and both connector ends. For older Tricon installations, that information is often more useful to a supplier than a generic description such as “Tricon analog cable.”

⚠️ Trap #3 — Several reseller listings use generic descriptions.

One current listing calls 4000206-530 a “High-Availability I/O Module,” which conflicts with the Tricon CX documentation showing the 4000206-5xx family as interface cables. Treat generic marketplace classifications cautiously.

Dynamic FAQ

What is TRICONEX 4000206-530?

It is a Triconex cable assembly within the 4000206-5xx interface-cable family. Tricon CX documentation associates this cable family with analog-input field termination arrangements.

Is 4000206-530 an I/O module?

The available technical documentation supports treating it as a cable/interface assembly, not an electronic I/O module. Some third-party listings classify it incorrectly as an I/O module, so the physical label and system documentation should control the identification.

Which Tricon module does it connect to?

The documentation confirms that the 4000206-5xx family is used with 2760-series analog-input termination panels associated with the 3704E I/O architecture. The exact compatibility of -530 should be verified against the applicable system drawing before procurement.

Is 4000206-530 interchangeable with 4000206-510?

Do not assume that. They share the 4000206-5xx family, but different suffixes can represent different cable configurations. Exact interchangeability requires the applicable Tricon documentation or a confirmed OEM cross-reference.

What information should I provide when ordering?

Provide 4000206-530, a photograph of the complete cable, both connector ends, the associated Tricon I/O module number, and the termination-panel part number. This gives the supplier enough information to check the complete interface rather than matching only the family number.

What should I verify for New Surplus stock?

Confirm that the cable is unused, verify the complete 4000206-530 marking, inspect connectors and insulation, and request the supplier’s stated warranty and return conditions. For a safety-system cable, also request confirmation of the exact compatible termination assembly.

Warranty considerations

Warranty is supplier-specific. For New Surplus inventory, obtain the warranty period, DOA policy, return window, and condition classification in writing. If the supplier claims OEM status, request the corresponding traceability information rather than relying only on a generic product listing.
