Triconex 9566-810 32-Point Digital Input Termination Panel

Description

Product Introduction

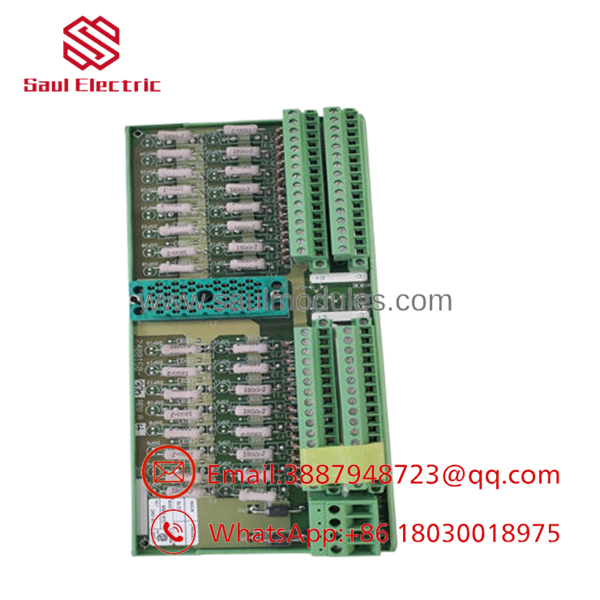

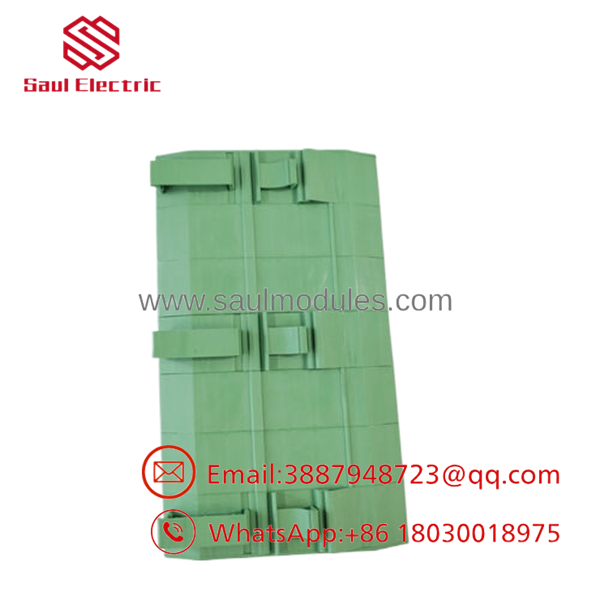

The Triconex 9566-810 is a 32-point commoned digital input termination panel used in Tricon Safety Instrumented Systems (SIS). Rather than processing logic, it provides the physical interface between field wiring and the Tricon digital input module, simplifying cable management and maintenance in safety-critical installations. It is designed for 24 VDC applications.

In our field experience, termination panels are often overlooked until troubleshooting begins. The 9566-810 is specifically designed to work with the 3504E 64-point digital input module. Since the module has 64 input channels while each panel provides 32 termination points, two 9566-810 panels are required for every 3504E module. That’s a detail worth checking before ordering spare parts.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Here’s a familiar maintenance call.

The digital input module passes diagnostics, but several field switches refuse to change state. The controller isn’t the problem. The field devices aren’t either.

Eventually someone discovers a damaged termination panel caused by years of vibration and repeated wiring changes.

That’s why field termination assemblies deserve the same attention as the controller itself.

Typical Applications

• Oil & Gas – Emergency Shutdown (ESD) – Terminates field contacts for critical shutdown signals into Tricon 3504E digital input modules.
• Petrochemical – Fire & Gas Systems – Organizes large numbers of dry-contact detectors while maintaining clear field wiring.
• Power Generation – Turbine Protection – Provides structured signal landing for trip and permissive inputs.
• Chemical Processing – Safety Instrumented Functions (SIF) – Supports maintenance by separating field wiring from the controller chassis.
• LNG Facilities – Compressor Protection Systems – Reduces wiring errors during scheduled shutdowns and module replacement.

Field Case Study

A refinery planned to replace a faulty 3504E digital input module during a six-hour maintenance outage. The spare module was available, but only one 9566-810 termination panel had been ordered.

Installation stopped immediately because the 64-point module requires two termination panels. A replacement panel had to be shipped overnight, delaying startup.

One missing termination assembly cost far more than the hardware itself.

9566-810

9566-810

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual Tricon hardware.

• Inbound Inspection
  • Verify OEM part numbers and revision labels.
  • Inspect screw terminals for damage or stripped threads.
  • Examine PCB traces for corrosion or overheating.
• Live Rig Testing
  • Connect the panel to a compatible 3504E module.
  • Verify continuity across all channels.
  • Confirm proper field cable interface.
• Electrical Parameter Checks
  • Check insulation resistance.
  • Verify resistor values on every input channel.
  • Inspect terminal torque integrity.
• Compatibility Verification
  • Confirm matching application for 24 VDC systems.
  • Verify compatibility with customer module and cable assembly.
• Final QC & Anti-static Packaging
  • Label inspection.
  • ESD-safe packaging.
  • Final visual inspection before shipment.

The Veteran’s Tech Trap Guide

⚠️ Don’t confuse the 9566-810 with the 9565-810.

They look similar, but they’re intended for different input voltages. Installing the wrong panel can create signal problems that are difficult to diagnose.

❗ Remember: one 3504E module needs two 9566-810 panels.

Many purchasing errors happen because engineers count modules but forget the termination hardware.

⚠️ Label every field wire before removal.

Take photos first. Trust me. Thirty-two nearly identical terminals all look the same after lunch.

❗ Inspect screw terminals carefully.

Older installations often suffer from loose terminals caused by years of thermal cycling. Many intermittent input faults originate at the termination panel rather than the I/O module.

Frequently Asked Questions (FAQ)

Q1. Is the 9566-810 an I/O module?

No.

It is a field termination panel. It provides the wiring interface between field devices and the Tricon digital input module; it does not execute logic or process signals.

Q2. Which Tricon module is compatible with the 9566-810?

The standard application is the Triconex 3504E 64-point, 24/48 VDC commoned digital input module. Two 9566-810 panels are required per module.

Q3. Can the 9566-810 be used with 48 VDC systems?

No. The 9566-810 is intended for 24 VDC applications. For 48 VDC commoned digital inputs, Tricon documentation specifies the 9565-810 termination panel.

Q4. Does this panel require firmware updates?

No.

The 9566-810 is a passive termination assembly with no firmware.

Q5. Why is a surplus termination panel less expensive than buying through OEM channels?

Many surplus units come from plant expansions, project cancellations, or excess maintenance inventory. Price alone does not indicate quality. Ask for inspection records, continuity testing results, and traceable sourcing before purchasing.

Q6. Is a 12-month warranty available?

Most industrial automation suppliers offer a 12-month warranty on tested new surplus or refurbished termination panels. Verify the warranty terms before placing an order.

Q7. What should I verify before installing a 9566-810?

Before reconnecting field wiring, verify:

• Correct voltage application (24 VDC).
• Compatibility with the 3504E module.
• Proper cable orientation.
• Terminal torque.
• Channel labeling against the loop drawings.

Finally, compare the wiring with the official Tricon Field Terminations Guide before energizing the system. Verify the exact pin assignments rather than relying on previous cabinet modifications.
