Description
Product Introduction
The Triconex 9662-810 is an 8-channel analogue output Field Termination Assembly (FTA) engineered for Tricon Triple Modular Redundant (TMR) safety instrumented systems. It serves as the physical marshalling layer between Tricon Analogue Output modules (such as the 3700A or 3721) and critical field devices like control valves, I/P converters, and speed governors.
Mounted in cabinet wireways, the 9662-810 receives voted 4-20mA control signals through a multi-conductor cable from the main Tricon chassis. It routes those signals directly to screw terminals while providing individual channel circuit protection, preventing external field wiring short circuits or ground loops from propagating back to the active TMR processor electronics.
Key Technical Specifications
| Parameter | Specification |
| Manufacturer | Schneider Electric / Invensys Triconex |
| Part Number | 9662-810 |
| System Architecture | Tricon TMR Safety Instrumented System |
| Number of Channels | 8 Analogue Output Points |
| Signal Range | 4-20 mA DC (Current Loop) |
| Field Wiring Terminals | Screw-cage compression clamp terminals (12–24 AWG) |
| System Cable Connector | 56-pin Elco / EDAC mass-termination connector |
| Channel Protection | Individual point fuses / power-limiting circuitry |
| Mounting Format | Standard TS35 DIN-Rail Mounting |
| Operating Temperature | 0°C to +60°C (+32°F to +140°F) |
Application Scenarios & The “Trench” Experience
During an emergency trip sequence at a LNG loading terminal, an field cable servicing a anti-surge valve actuator was pinched by maintenance scaffolding, causing a dead short across the output loop. The point protection fuse on the 9662-810 panel instantly cleared the fault locally. The Tricon 3721 output module logged the channel open-loop alarm without suffering hardware damage, and adjacent control valves on the same module continued responding without interruption. Swapping the blown fuse on the 9662-810 panel restored loop operation immediately after the cable was repaired.
Target Applications:
- Turbomachinery Control: Routing 4-20mA control signals to fuel gas control valves and steam governor actuators.
- Emergency Shutdown (ESD): Controlling emergency blowdown and isolation valve positioners in offshore oil and gas facilities.
- Burner Management Systems (BMS): Driving proportional fuel and air flow control loops on industrial boilers.

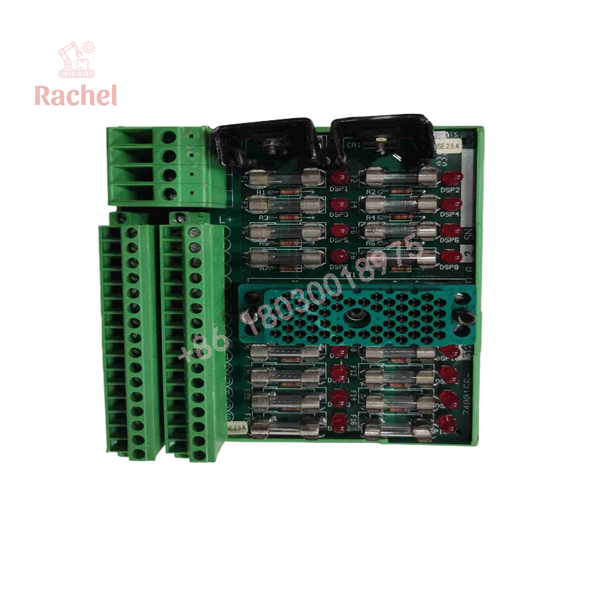

9662-810

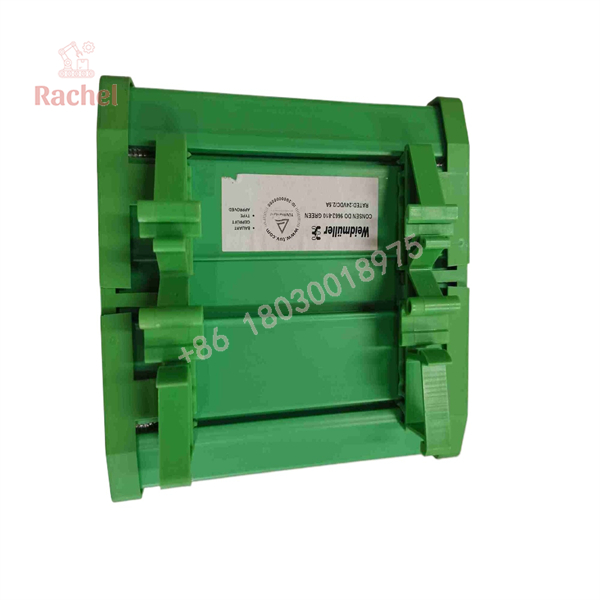

9662-810
Transparency SOP: Quality Assurance & Testing
We treat process safety hardware with zero-tolerance testing protocols. Every Triconex 9662-810 panel undergoes full hardware validation prior to shipment:
- Inbound Mechanical Check: Inspection of the PCB substrate, terminal blocks, DIN-rail mounting latches, and 56-pin system cable connector for bent pins or structural fatigue.
- Loop Continuity & Impedance Check: Point-to-point resistance verification across all 8 current output channels to ensure zero trace degradation.
- Fuse & Protection Circuit Check: Inspection and testing of individual channel fuses, series diodes, and terminal clamping circuitry.
- Live Bench Loop Test: Connected via mass-termination cable to a live Tricon test rig to drive 4-20mA signals across simulated precision loads.
- ESD Cleaning & Packaging: Cleaned, sealed in static-shielding ESD bags, and packed in heavy-duty foam protective shipping boxes.
The Veteran’s Tech Trap Guide
- ⚠️ Do not force the 56-pin system cable connector! The mass-termination Elco/EDAC connector uses a central alignment screw. Force-seating the cable at an angle will bend connector pins, causing hard-to-find signal drops across multiple output channels.
- ❗ Verify loop power requirements before wiring. Certain field actuators require external loop power, while others rely on loop-powered driving from the FTA. Double-check your loop diagrams to ensure you don’t backfeed external 24V DC into an unpowered output channel.
- ⚠️ Check shield grounding practices. Signal cable shields should be grounded at one point only (typically at the marshalling cabinet terminal bar) to avoid ground loop current that can introduce noise into 4-20mA current signals.
- ❗ Keep OEM replacement fuses inside the cabinet. If a field short occurs, the onboard channel fuse will pop to protect the module. Keep spare OEM-rated fast-acting fuses stocked in the cabinet door to avoid extended troubleshooting downtime.
Frequently Asked Questions
Q: Can I use the Triconex 9662-810 with Tricon 3700A and 3721 Analogue Output modules?
A: Yes. The 9662-810 standard AO termination panel is designed to interface with standard 8-channel 4-20mA Tricon TMR analogue output modules via compatible system cables.
Q: Are the output channels on the 9662-810 individually fused?
A: Yes. Each of the 8 output channels features onboard fusing to isolate field wiring shorts without affecting the remaining channels on the assembly.
Q: Is it safe to replace a cable on the 9662-810 panel online?
A: Unplugging the main system cable will drop all 8 output signals to 0 mA simultaneously, which will close or open connected control valves and trip active process loops. Only perform online maintenance if the associated loops are safely bypassed.
Q: What is the difference between the 9662-810 and non-incendive / IS termination assemblies?
A: The standard 9662-810 handles standard 4-20mA signals in non-hazardous or general industrial locations. IS-rated FTAs incorporate galvanically isolated safety barriers for direct connection to hazardous classified areas (Zone 0/1, Class I Div 1).
Q: What warranty comes with surplus Triconex 9662-810 panels?
A: All inspected, bench-tested surplus and reconditioned Triconex 9662-810 panels include a full 12-month replacement warranty.
