TRICONEX 9662-810 Digital Output Termination Panel

Description

Product Introduction & Engineering Value

The TRICONEX 9662-810 sits on the field-wiring side of a Tricon safety system. It provides the termination interface for 16 digital output circuits, with commoned power terminals and individual output-point protection. The official-style field termination documentation specifies a 16 A maximum total current for the panel.

That distinction matters during replacement. The 9662-810 does not execute safety logic itself. It works with a compatible Tricon digital-output module—specifically 3604E in the v9–v10 documentation—to connect the redundant controller output circuitry to external loads.

Technical Specifications

The Tricon field termination manual explicitly states that each output point on the 9662-810 is protected by a fuse with a blown-fuse indicator. It also identifies the panel as having 16 load terminals and commoned power terminals.

Related identification

Some industrial suppliers cross-reference 9662-810 with additional internal or commercial numbers, including 4000094-350. Treat such cross-references as supplier-specific until they are confirmed against the physical label and Tricon documentation.

Field Application & the “Trench” Experience

A Tricon safety system is controlling several shutdown valves through 24 VDC digital outputs. One valve refuses to actuate even though the control system reports an output command.

The technician starts at the field termination panel rather than immediately replacing the Tricon output module.

That is a good diagnostic move.

With the 9662-810, each output point has fuse protection and a blown-fuse indication. A single failed field circuit can therefore be isolated without automatically condemning the upstream 3604E module. The termination guide shows the 9662-810/3604E arrangement and its field wiring architecture.

Specific application scenarios

1. Emergency shutdown valve actuation — Terminating 24 VDC safety outputs used to drive shutdown-related field devices.
2. Solenoid valve control — Providing field-side termination for compatible Tricon digital-output circuits.
3. Burner management systems — Connecting discrete safety outputs to relays, solenoids, or associated shutdown equipment.
4. Process interlock equipment — Supporting discrete output circuits where commoned 24 VDC distribution is appropriate.

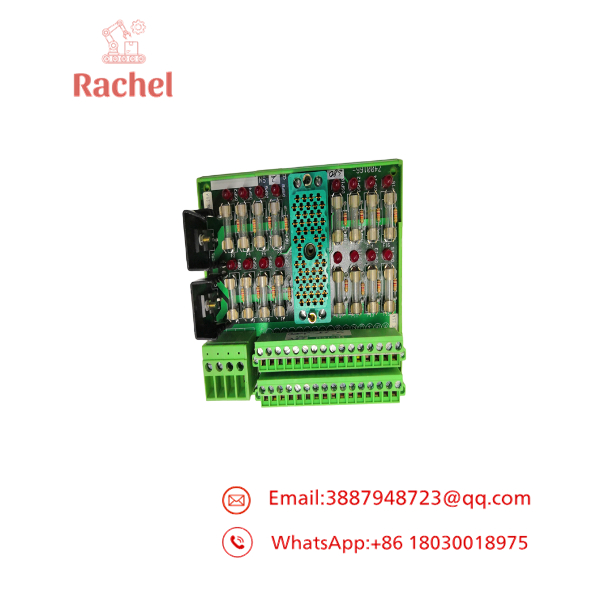

9662-810

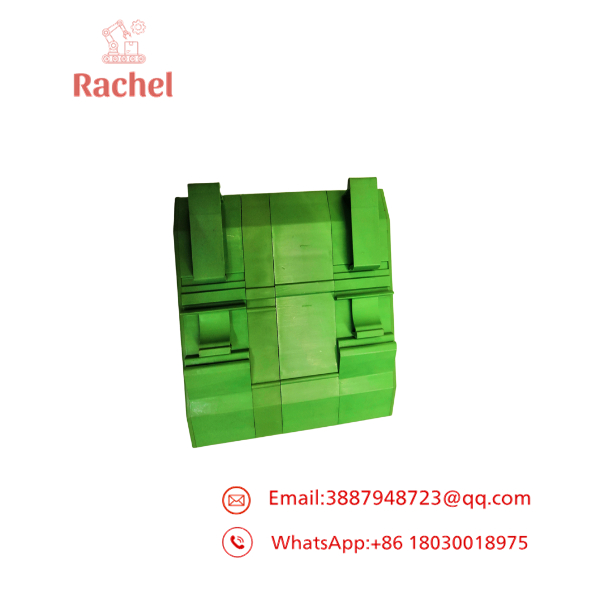

9662-810

Transparency SOP: QA & Testing

For new-surplus or refurbished 9662-810 stock, the test should concentrate on continuity, protection, terminal integrity, and correct point-to-point wiring.

1. Part-number inspection — Confirm the complete 9662-810 designation.
2. Physical inspection — Check terminal blocks, fuse holders, PCB/assembly condition, labels, and mounting hardware.
3. Fuse inspection — Verify fuse positions and blown-fuse indicators.
4. Continuity testing — Check each output path against the applicable wiring diagram.
5. Power-path verification — Confirm commoned PWR+ and PWR− connections.
6. Point isolation test — Verify that individual output terminals correspond to the correct panel positions.
7. Load simulation — Connect suitable test loads rather than directly energizing production equipment.
8. Current verification — Confirm the test load remains within the applicable panel and circuit limits.
9. Final inspection — Record fuse condition and test results.

For a termination panel, point-to-point electrical testing is far more meaningful than simply checking whether the assembly looks new.

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Confusing 9662-810 with an I/O module.

The 9662-810 is a field termination panel. The Tricon v9–v10 documentation identifies the 3604E as the compatible digital-output module.

PRO TIP: When the BOM says “9662-810,” verify whether the failed item is the termination panel or the associated 3604E module before ordering.

⚠️ Trap #2 — Confusing 9662-810 with 9662-610.

These are not interchangeable. The documentation distinguishes the termination panels by voltage/configuration. 9662-810 is the 24 VDC commoned 16-point version, while 9662-610 is a different configuration.

⚠️ Trap #3 — Ignoring commoned power architecture.

The panel uses commoned power terminals. Replacing it with a non-commoned termination arrangement can change the field wiring architecture and may create an unsafe or nonfunctional installation.

⚠️ Trap #4 — Assuming every 24 VDC output module is compatible.

The v9–v10 guide specifically identifies 3604E as compatible with 9662-810. Do not infer compatibility solely from the fact that another module also operates at 24 VDC.

⚠️ Trap #5 — Skipping fuse inspection.

If one field load stops operating, inspect the corresponding fuse and blown-fuse indicator before replacing expensive Tricon electronics.

Dynamic FAQ

What is TRICONEX 9662-810?

The 9662-810 is a 16-point commoned digital-output field termination panel for Tricon v9–v10 systems.

Is 9662-810 a Tricon processor?

No. It is a field termination assembly, not a Tricon main processor or control module.

What voltage does the 9662-810 support?

The documented configuration is 24 VDC. The field termination guide identifies it as a 24 VDC commoned 16-point panel.

How many output points does it have?

It provides 16 output/load terminals. The documented maximum total current for the panel is 16 A.

Which Tricon output module is compatible with 9662-810?

The Tricon v9–v10 Field Terminations Guide identifies the 3604E, a 16-point 24 VDC non-commoned opto-isolated TMR digital-output module, as compatible with the 9662-810.

Does the panel have individual fuse protection?

Yes. The documentation specifies fuse protection for each output point, together with a blown-fuse indicator.

Can a refurbished 9662-810 be used as a spare?

Yes, provided the assembly is correctly identified, physically inspected, and electrically tested against the applicable Tricon termination documentation. For a safety application, the replacement should also go through the site’s approved maintenance and verification procedure.

What should I request for new-surplus 9662-810?

Ask for photographs of the actual panel, complete part number, terminal/fuse configuration, condition classification, test report, and warranty. If a supplier claims equivalence to another part number, request documentation supporting that cross-reference.

What warranty should I request?

Obtain written warranty coverage for functional failure. For refurbished stock, ask whether the supplier tested all 16 termination paths and fuse/indicator circuits, rather than performing only a visual inspection.
