Triconex 9761-210 Digital Input External Termination Panel

Description

Product Introduction

The Triconex 9761-210 is a Digital Input External Termination Panel (ETP) engineered for Tricon Triple Modular Redundant (TMR) safety systems. Serving as the fie

Unlike basic passive feed-through panels, the 9761-210 includes onboard per-point fuse protection and status LEDs. This design isolates field-side electrical faults from reaching the primary safety card backplane, ensuring high loop availability across critical emergency shutdown and fire-and-gas architectures.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

In a chemical plant processing unit, an outdoor field limit switch housing floods during torrential rain, causing a short circuit across the field loop. On a standard pass-through panel, this might trip an entire 16-point power rail or damage the input card channel. On the 9761-210, the short immediately pops the individual channel fuse on the panel board. The local LED turns red, alerting maintenance to the exact channel without dropping the remaining 15 safety loops on the rack.

• Refinery Burner Management Systems (BMS) – Routes flame scanner and valve limit switch contacts securely to safety processors.
• Offshore Platform ESD Racks – Provides isolated, fused 24 VDC field input loops in high-vibration environments.
• Chemical Batch Process Safety Interlocks – Maintains signal integrity across hazardous area field switches.

9761-210

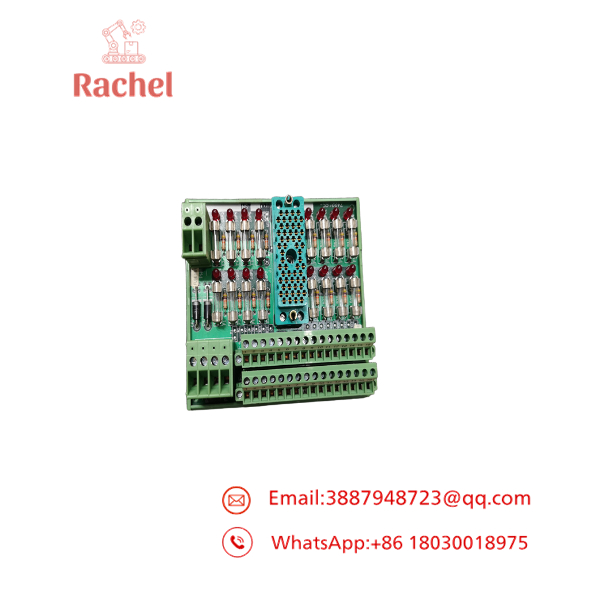

9761-210

Transparency SOP: Quality Assurance & Testing

1. Visual & Structural Inspection: Inspect terminal block threads, PCB trace integrity, mounting feet, and interface header pins under magnification.
2. Channel Continuity & Resistance Testing: Verify individual trace continuity from field terminal terminals through onboard fuse holders to the multi-pin interface header.
3. Fuse & LED Logic Check: Apply 24 VDC to each input point to confirm status LED operation and verify fuse-blown alarm indication circuits.
4. Dielectric Isolation Sweep: Perform high-pot/insulation resistance testing between adjacent field points and chassis ground.
5. Anti-Static Packaging: Clean unit, apply ESD protective covering, and pack in custom high-density foam shipping boxes.

The Veteran’s Tech Trap Guide

• ⚠️ Check fuse ratings before startup. Always replace blown fuses with the exact fast-acting milliamp rating specified on the board silk-screen. Over-fusing neutralizes card-level channel protection.
• ❗ Tighten cable connector retention screws. Ensure the multi-conductor cable header is fully seated and both retention screws are tightened evenly to avoid intermittent channel disconnects.
• ⚠️ Maintain single-point shield grounding. Land field cable drain wires on designated shield ground bars; never double-ground shields at both the instrument and the ETP.

Frequently Asked Questions

• Q: Can I replace a channel fuse while the panel is energized?A: Field fuses can be pulled using insulated fuse pullers, but you must follow site safety protocols regarding energized 24 VDC field circuits.
• Q: How does the 9761-210 differ from the standard 9662 series termination panels?A: The 9761 series specifically incorporates active per-channel circuit protection (fuses and LED indicators) tailored for Digital Input signals, whereas 9662 panels are primarily passive feed-through assemblies.
• Q: Are these genuine Triconex / Schneider Electric units?A: Yes, 100%. We supply authentic OEM Triconex hardware tested to original factory performance standards.

ld-to-logic interface, it routes discrete 24 VDC field signals (from switches, pushbuttons, and interlocks) cleanly into Tricon main chassis digital input cards via multi-conductor interface cables.
