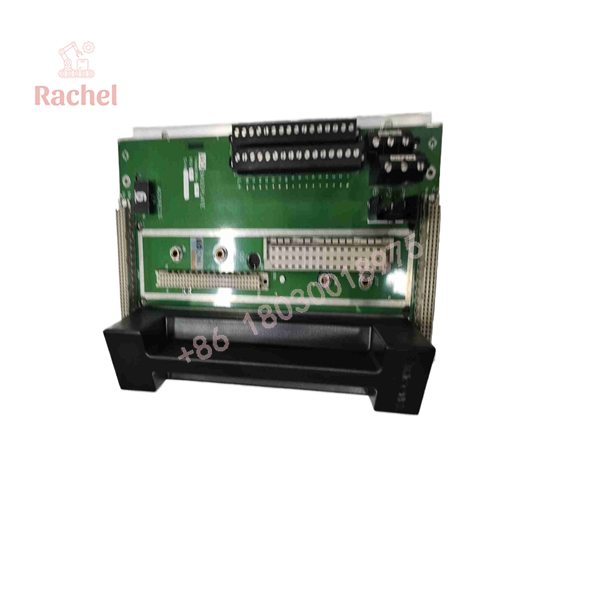

Product Introduction
To be honest, the Triconex AO2481 is a legendary safety-instrumented component in high-consequence process industries. Operating within the Tricon Triple-Modular Redundant (TMR) architecture, this analog output module drives critical control valves and final actuators where a spurious trip or failure could result in catastrophic plant shutdown or safety hazards.
Engineered with three independent legs and hardware voting circuitry, it ensures uninterrupted control even if an internal component fails. In our field experience, replacing an AO2481 module requires strict adherence to safety protocol and exact hardware revision matching to maintain safety integrity level (SIL 3) compliance without triggering a process interlock.
Key Technical Specifications
| Parameter | Value |
| Module Type | Analog Output Module (Triple-Modular Redundant – TMR) |
| System Compatibility | Invensys / Schneider Electric Tricon Safety System |
| Output Signal Range | 4 to 20 mA DC current control loops |
| Number of Channels | Isolated output channels (Tricon standard architecture) |
| Fault Tolerance | Triple-Modular Redundant (TMR) with active voting |
| Safety Integrity Level | Rated for up to SIL 3 safety applications |
| Diagnostic Coverage | Continuous online self-test and circuit monitoring |
| Enclosure Mounting | Tricon Chassis Slot Plug-in Module |
| Operating Temperature | 0°C to +60°C |
| Weight | Approx. 2.0 kg |
Application Scenarios & The “Trench” Experience
Picture this: It’s 3:00 AM at a high-pressure hydrocracker unit. A sudden diagnostic fault flags an unrecoverable output channel error on a safety-critical analog output card controlling emergency flare valves. If the module drops completely, the safety system forces an unannounced plant shutdown, costing hundreds of thousands in lost production. Technicians pull up the Tricon chassis diagnostics, verify the exact slot address, and hot-swap in a pre-tested surplus AO2481 card to restore fault-tolerant voting seamlessly before safety trips initiate.
- Oil & Gas – Emergency Shutdown Systems (ESD): Driving critical steam turbine governor valves and high-pressure letdown loops.
- Chemical Processing – Reactor Temperature Control: Supplying fault-tolerant 4-20mA signals to reactive feed control valves.
- Refining – Fluid Catalytic Cracking (FCCU): Managing critical catalyst slide valve positioning under strict SIL 3 safety mandates.
AO2481
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual Tricon TMR test chassis. Every unit goes through a strict verification protocol:
- Inbound Inspection: Visual check for backplane connector pin alignment, structural keying integrity, and authentic Triconex manufacturing labels.
- Live Rig Testing: Insertion into an active Tricon test rack to perform power-on self-tests (POST) and verify internal microprocessor handshakes.
- Loop Calibration & Voting Check: Injecting and measuring 4-20mA output currents across all channels under simulated TMR voting conditions to confirm output linearity.
- Thermal Soak Test: Operating the module under continuous load to verify internal DC-DC converter stability and thermal dissipation.
- Final QC & Anti-static Packaging: Clearing diagnostic logs, sealing the board in a heavy-duty ESD shielding bag, and crating in high-density foam.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
⚠️ Tricon Chassis Keying Pins: Never force an AO2481 module into a chassis slot without checking the mechanical keying pegs. Inserting a safety output card into an incompatible slot type can bend backplane pins or corrupt safety bus communications.
❗ Field Loop Power Isolation: Ensure your external 24VDC loop power supplies are floating and properly isolated. Ground loops across analog output loops can upset the module’s internal diagnostic fault-detection circuitry, triggering false channel trip alarms.
⚠️ Firmware & Chassis Revision Matching: Always verify that your Tricon chassis main processor firmware supports the specific hardware revision of the replacement AO2481 board. Mixing mismatched hardware revisions can prevent the module from passing its rigorous startup self-test.
Frequently Asked Questions (FAQ for Conversion)
Q: Is the Triconex AO2481 module hot-swappable?
A: Yes. The Tricon TMR architecture is designed for online module replacement under power, allowing technicians to pull and replace a faulty leg or complete module without interrupting the process or causing spurious trips, provided system configuration permits.
Q: Does this module require calibration after installation?
A: No manual potentiometer adjustments are required. The Tricon system automatically recognizes the module, downloads calibration parameters, and runs internal self-diagnostics upon boot.
Q: Does this unit come with a warranty?
A: Yes. All surplus and fully tested safety system modules include a standard 12-month replacement warranty.
Q: Why buy surplus safety hardware instead of waiting for primary channels?
A: Critical safety system components often carry extended factory lead times. We source verified surplus and factory-recertified safety hardware so you can maintain strict plant uptime and inventory compliance without compromising safety standards.
