Triconex CM01 Communication Module Invensys Tricon Safety PLC

Description

Product Introduction & Engineering Value

When an SIS (Safety Instrumented System) communication link drops in a continuous chemical plant, operators lose vital visibility into process safety trips. The Triconex CM01 communication module is engineered to maintain robust, fault-tolerant data pipelines between high-integrity Tricon safety controllers and supervisory control networks.

Built around a Triple Modular Redundant (TMR) framework, this module ensures that network polling and data handshakes never compromise safety integrity level (SIL) operations. Lead engineers rely on its reliable backplane architecture to stream real-time diagnostic data to distributed control systems without introducing single points of failure.

Technical Specifications

• System Architecture: Triple Modular Redundant (TMR) fault-tolerant design
• Communication Ports: Dual independent serial interface channels (RS-232 / RS-485 configurable)
• Backplane Interface: High-speed parallel bus connection for direct communication with Tricon main processors
• Diagnostic Indicators: Front-panel LED status array for MODULE OK, RX/TX activity, and fault identification
• Hot-Swap Capability: Fully online insertion and removal (OIR) compatible without interrupting safety logic execution
• Protocol Support: Modbus, TSAA (Triconex Serial Access Application) protocol, and proprietary host links
• Enclosure Type: Conformal-coated industrial plug-in module designed for standard Tricon chassis slots
• Operating Temperature Range: 0°C to 60°C (32°F to 140°F) standard industrial limits

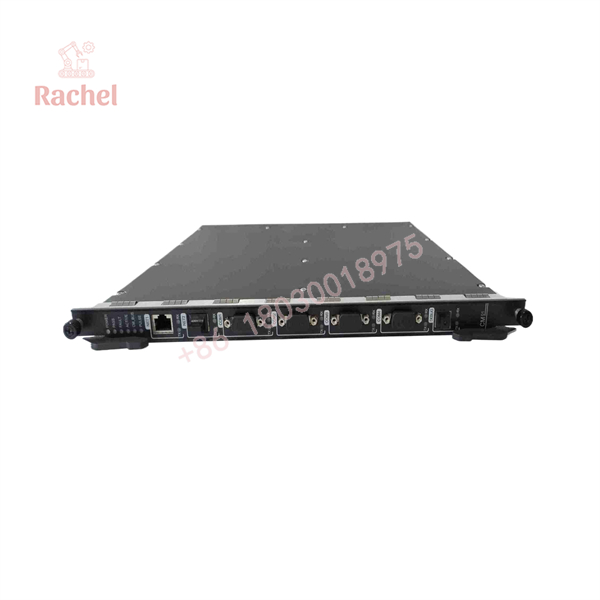

CM01

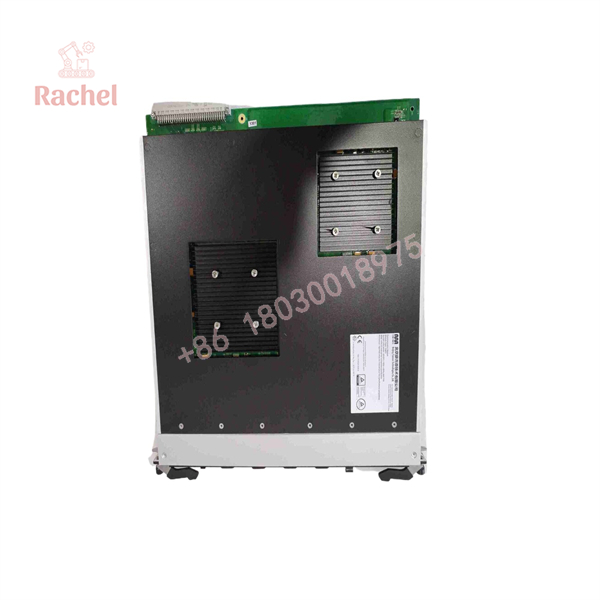

CM01

Field Application & The “Trench” Experience

During an emergency turnaround at an oil refinery, a primary communication link on an emergency shutdown (ESD) Tricon rack stopped responding, cutting off alarm data to the central control room. While the safety loops continued to execute correctly, operating licenses required active SCADA telemetry before restarting feed pumps. Sourcing a direct factory-fresh module through standard channels faced lengthy safety compliance delays. The instrumentation specialist pulled a verified surplus Triconex CM01 module from secure safety spares, inserted it into the designated TMR chassis slot, and re-established clean Modbus polling within minutes.

Specific Niche Application Scenarios:

• Refinery Emergency Shutdown (ESD) Systems: Streaming redundant trip logs and diagnostic states to plant-wide DCS networks.
• Offshore Platform Fire & Gas (F&G) Panels: Interfacing remote safety nodes with topside supervisory control stations.
• Pipeline Compressor Safety Interlocks: Bridging high-integrity safety status data across long-distance serial communication links.

Transparency SOP: QA & Testing

1. Backplane Pin Audit: Inspect gold-plated edge connectors and chassis guide pins under optical magnification for micro-abrasions or oxidation.
2. Static Bus Resistance Check: Verify internal power rail isolation and common-mode resistance barriers using a calibrated digital multimeter.
3. Serial Port Loopback Test: Connect the module to a dedicated Tricon test rig, running continuous packet transmission loops across RS-232/485 channels to confirm zero dropped bytes.
4. TMR Handshake Verification: Test backplane communication synchronization to ensure flawless integration with triple-redundant main processors.
5. Thermal Soak Chamber Run: Operate the module under power inside a 50°C thermal enclosure for 24 continuous hours to screen out early component degradation.

The Veteran’s Tech Trap Guide

⚠️ PRO TIP: When replacing a communication card in a live TMR chassis, always confirm your physical jumper and switch configurations match the exact slot requirements. Incorrect address or baud rate selections will prevent the module from synchronizing with the main safety processors.

Warning: Never force a communication module into an incorrect chassis slot type. Forcing cards into incompatible backplane positions can bend delicate pins or trigger bus faults across adjacent safety-critical modules.

Dynamic FAQ

1. Is this Triconex CM01 module supplied brand new or surplus? We supply certified New Surplus and fully tested safety-rated hardware, backed by complete historical inspection and traceability records.
2. What warranty covers this communication module? Every unit is backed by our comprehensive 12-month replacement warranty covering structural and operational performance.
3. Is the CM01 module hot-swappable in a running Tricon rack? Yes, Tricon communication modules are designed for online replacement (hot-swapping) without taking down the safety system or interrupting logic execution.
4. Does this module affect the safety rating (SIL) of the Tricon controller? No, communication modules operate outside the core voting safety path, ensuring that communication faults cannot compromise safety trip execution.
5. What protocols are supported by the serial ports? The module supports standard industrial protocols including Modbus RTU and Triconex TSAA for host computer and HMI integration.
