Product Introduction & Engineering Value
When a safety shutdown system begins reporting intermittent field input faults, replacing the controller rarely solves the problem. More often, the digital input module has reached the end of its service life after years of continuous operation.
The TRICONEX DI3301S2 is designed for Tricon Safety Instrumented Systems (SIS) where input integrity is essential. Its triple-redundant architecture continuously compares three independent signal paths, allowing the controller to detect channel faults without sacrificing system availability.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | TRICONEX |
| Model | DI3301S2 |
| Product Type | Digital Input Module |
| Safety Architecture | Triple Modular Redundancy (TMR) |
| Input Channels | 32 Commoned Digital Inputs |
| Nominal Input Voltage | 24 VDC |
| Operating Voltage | 19.2–30 VDC |
| Absolute Maximum Voltage | 33 VDC |
| Input Threshold | OFF: 0–5 VDC • Transition: 6–14 VDC • ON: 15–30 VDC |
| Input Delay | Approximately 2.86 ms Time Constant |
| Diagnostics | Continuous channel diagnostics and Force-to-Value Diagnostic (FVD) |
| Installation | Mechanically keyed, supports hot-spare configuration within compatible Tricon systems |
Field Application & The “Trench” Experience
A refinery experienced sporadic Emergency Shutdown (ESD) trips during scheduled compressor startups. Initial troubleshooting focused on transmitters and field wiring, but signal captures showed clean 24 VDC inputs. After isolating each TMR channel, maintenance identified one aging DI3301S2 module reporting inconsistent state transitions on a single channel. Replacing the module eliminated nuisance trips without modifying application logic or field devices.
Typical deployment scenarios include:
- Catalytic Cracking Unit emergency shutdown input monitoring
- Boiler Management System burner permissive verification
- Turbine overspeed trip status acquisition
- Compressor anti-surge shutdown interlock monitoring
- High Integrity Pressure Protection System (HIPPS) discrete input processing
Transparency SOP: QA & Testing
Every New Surplus or Refurbished DI3301S2 module should complete documented inspection before shipment.
- Visual inspection for connector damage, corrosion, and PCB contamination.
- Backplane connector verification and mechanical key inspection.
- Power-up verification using a compatible Tricon chassis.
- Functional testing across all 32 input channels using simulated 24 VDC signals.
- Diagnostic LED confirmation and fault reporting verification.
- Final serial number recording with packaging inspection and ESD-safe packing.

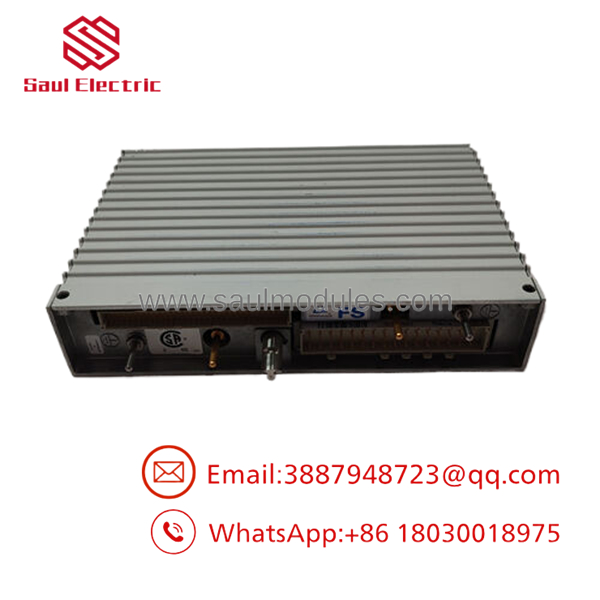

- DI3301S2

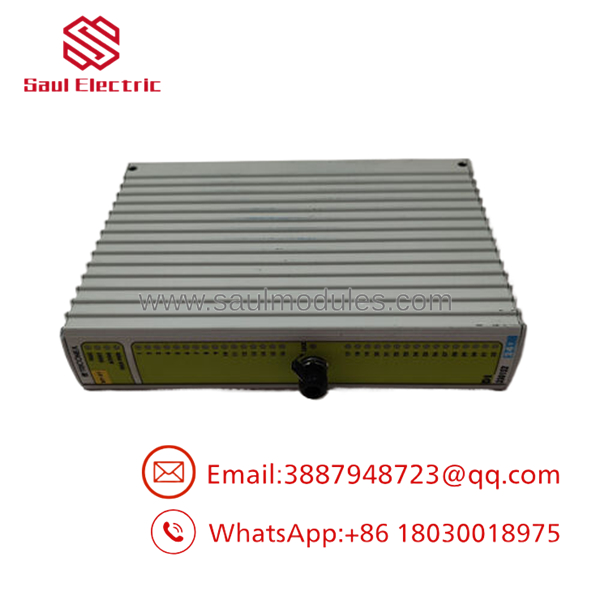

- DI3301S2
The Veteran’s Tech Trap Guide
⚠️ Firmware compatibility matters.
Although the fits physically into compatible Tricon racks, verify compatibility with the installed Tricon controller revision before commissioning.
⚠️ Don’t blame the module first.
Many “failed” digital input cards are actually responding correctly to noisy field wiring, floating commons, or deteriorated relay contacts. Confirm field voltage stability before replacing hardware.
PRO TIP:
During scheduled outages, compare channel diagnostic logs before removing the existing module. Tricon diagnostics often identify whether the fault originates in field wiring or within one of the module’s three processing channels.
⚠️ Observe ESD procedures.
The input electronics are designed for high reliability, but improper handling during installation can shorten service life long before the module returns to operation.
Dynamic FAQ
Q1. Is the hot-swappable?
In supported Tricon architectures and when maintenance procedures are followed, the module supports hot-spare and online replacement capabilities. Always follow your site’s Management of Change (MOC) and shutdown procedures.
Q2. How many field inputs does this module support?
The provides 32 commoned digital input channels intended for 24 VDC field devices.
Q3. Can it detect internal failures?
Yes. Continuous diagnostics monitor each processing channel independently. The Tricon controller performs voting between the three channels to identify and isolate faults while maintaining operation when possible.
Q4. Is New Surplus equipment genuine?
A genuine New Surplus module is an unused OEM-manufactured unit that has remained in inventory. It should retain original hardware identification and pass complete functional testing before shipment.
Q5. What warranty is typically available?
Warranty terms vary by supplier. New Surplus and professionally refurbished modules are commonly supplied with a warranty after documented inspection and functional testing.
Q6. Which systems use the ?
The module is intended for compatible TRICONEX Tricon Safety Instrumented Systems (SIS) used in applications where high availability and SIL-rated safety functions are required.
