TRICONEX EPI3382 | Tricon Main Processor Module

Description

Core Product Summary (Brand / Model / Key Attributes)

The TRICONEX EPI3382 is a Triconex main processor module associated with the Tricon family of triple-modular-redundant (TMR) safety instrumented control systems. It is identified in technical parts references as an Enhanced Processor Interface (EPI) module and is used within the processor section of a Tricon-based safety control architecture.

The EPI3382 is intended for engineers and procurement teams identifying processor-section hardware for Triconex safety systems. Because published technical documentation for this exact order code is limited, electrical ratings, channel counts, firmware requirements, rack compatibility, and approval scope should be confirmed against the module nameplate and the applicable Tricon system documentation before substitution or integration.

Key Technical Specifications

Detailed Product Overview

The TRICONEX EPI3382 belongs to the processor section of a Triconex safety instrumented system rather than to a field-I/O module family. In a Tricon architecture, processor modules execute the safety application, coordinate trip logic, manage communication with I/O and communication subsystems, and participate in the fault-tolerant operation of the TMR control platform.

The “EPI” designation is associated with an Enhanced Processor Interface function. For procurement and maintenance planning, this places the EPI3382 in a different category from Triconex discrete input, discrete output, analog input, analog output, communication, or power-supply modules. Physical similarity to other Triconex modules is therefore not sufficient evidence of functional interchangeability.

The EPI3382 S2 designation appears in parts references as a main processor module variant. When matching an installed unit, the complete marking on the module—including the base model, suffix, revision, and barcode data—should be used to distinguish the exact hardware configuration. This is particularly important for safety-system spare-parts control, where processor firmware, system revision, and chassis configuration can affect suitability.

Before installing or replacing this module, the existing Tricon chassis configuration, processor-slot assignment, system software version, and application-program compatibility should be reviewed. The module should only be handled with the control system de-energized and in accordance with the site’s safety-system maintenance procedures.

Engineering Selection Highlights

• Triconex EPI3382 is identified as a main processor / Enhanced Processor Interface module, so it should be evaluated as processor-section hardware rather than as an I/O or power-supply module.
• The module is associated with the Tricon TMR safety-system family, making chassis type, processor configuration, and system revision central selection checks.
• The EPI3382 S2 variant is separately identified in parts references, so the full nameplate suffix should be matched before treating modules as equivalent.
• The associated order number 7400221 appears in marketplace and parts references, providing an additional cross-check during procurement identification.
• Published exact-model electrical and environmental data is limited, so specifications should be taken from the installed module label and applicable Triconex system documentation rather than inferred from visually similar modules.

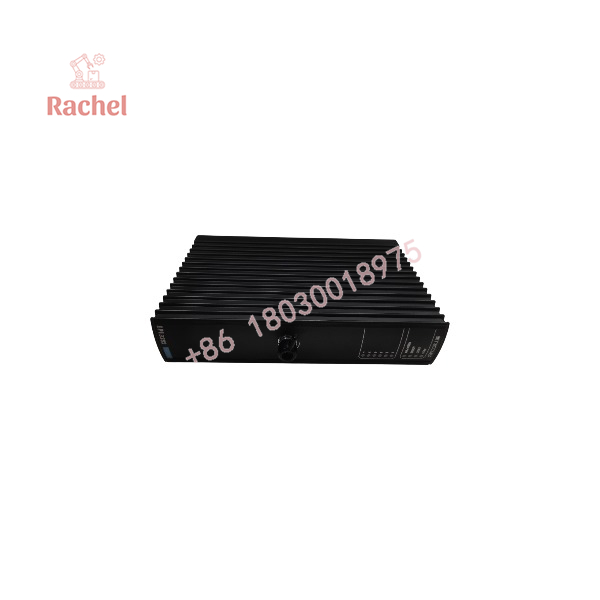

EPI3382

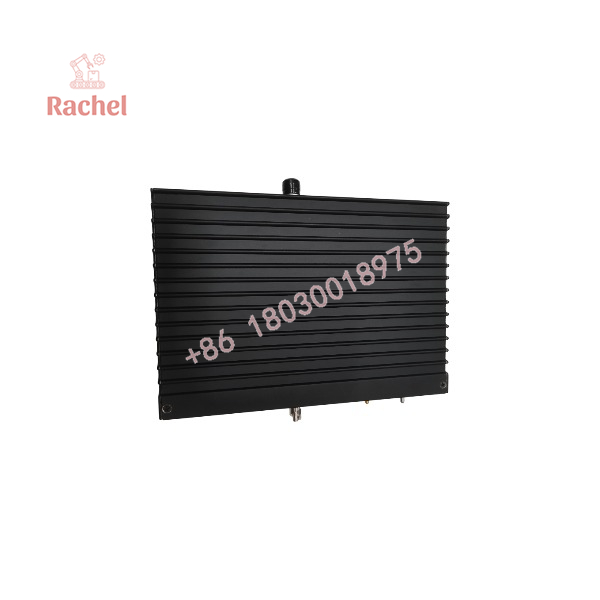

EPI3382

System Compatibility & Integration Requirements

Dimensions, Mounting & Connection Notes

Published dimensional data was located for the variant, not confirmed for every EPI3382 configuration:

These values are logistics-oriented package references and should not be treated as installed-module envelope dimensions unless confirmed by the physical unit or OEM documentation.

FAQ

What is the TRICONEX EPI3382?
It is a Triconex main processor / Enhanced Processor Interface module associated with Tricon TMR safety instrumented control systems.

Is the EPI3382 an I/O module?
No. Available model identification places it in the processor section of a Tricon system, not in the discrete or analog I/O module categories.

What is the EPI3382 S2?
EPI3382 S2 is a separately identified variant listed as a Triconex main processor module. The suffix should be matched against the installed module nameplate.

What order number is associated with EPI3382?
The identifier 7400221 is associated with EPI3382 in parts references and should be used as a cross-check, together with the module label.

Can EPI3382 be replaced by another Triconex processor module based on physical appearance?
Physical similarity is not sufficient evidence of compatibility. The exact model, suffix, revision, chassis configuration, and system software requirements must be matched.

Verification & Troubleshooting Notes

• Confirm the full nameplate marking—model, suffix, revision, barcode, and order number—before ordering or installing a replacement.
• Verify that the module is installed in the correct processor location and that the Tricon chassis configuration matches the system documentation.
• Do not infer compatibility from similar Triconex module numbers or from third-party product descriptions.
• Before removal or installation, isolate power and follow the site’s safety-instrumented-system maintenance and management-of-change procedures.
• If a processor fault is suspected, distinguish between module, chassis, power, communication, firmware, and application-program causes; do not bypass safety functions or attempt unsupported component-level repair.
