Product Introduction & Engineering Value
When you are maintaining complex MicroNet or MicroNet Plus turbomachinery control racks, board-level density and deterministic signal timing are everything. The Woodward 5437-1119 combination module is a staple in critical steam and gas turbine governing systems because it packs speed sensing and high-precision analog loops onto a single VME-bus card slot, reducing total rack footprint.
Designed for high-availability applications, this module handles on-board signal processing independently from the main CPU, ensuring fast closed-loop actuator response even under heavy system bus loads. Its fault-tolerant architecture supports live insertion and removal in dual-redundant MicroNet chassis, letting site technicians perform maintenance without dropping critical process loads.
Technical Specifications
- Operating Platform: Woodward MicroNet, MicroNet Plus, and MicroNet TMR Chassis Systems
- Speed Sensing Inputs: 4 Channels (Selectable Magnetic Pickup or Proximity Probe, 1 Hz to 50 kHz range)
- Analog Inputs: 8 Channels (4–20 mA or 0–5 VDC, fully isolated, 16-bit resolution)
- Analog Outputs: 4 Channels (4–20 mA or 0–200 mA configurable actuator driver outputs)
- Module Form Factor: Standard MicroNet Eurocard VME bus format with front-panel release levers
- Bus Architecture: Dual redundant internal VMEbus interface connections
- Power Consumption: 15 Watts nominal (supplied directly via backplane bus)
- Isolation: 500 VDC galvanic isolation between backplane logic, field wiring, and adjacent channels
- Operating Temperature: -20°C to +60°C ambient rack environment
- Certifications: CSA Class I Division 2, ATEX Zone 2, CE Marked
Field Application & The “Trench” Experience
The Trench Story
A combined-cycle facility in West Texas experienced an intermittent analog feedback fault on a Frame 7 gas turbine fuel valve driver card. The faulty channel was inducing 3% fuel oscillations during peak ISO-rating generation hours, threatening a thermal stress trip on the combustor baskets.
Because the MicroNet rack was configured for high-availability hot-swapping, the I&C technician grabbed a pre-calibrated 5437-1119 spare from climate-controlled inventory. After unlatching the card retention screws, the faulted module was pulled and the new 5437-1119 inserted directly into the live backplane. The main CPU automatically pushed parameter tables down to the module within 50 milliseconds, smoothing out valve oscillation immediately without disrupting generator output.
Specific Field Applications
- Gas Turbine Fuel Valve Position Loops: Fast-acting 0–200 mA direct driver interface for hydraulic fuel metering valves.
- Steam Turbine Governor Racks: High-resolution speed acquisition combined with extraction pressure 4–20 mA transmitter feedback.
- Large Centrifugal Compressor Antisurge Control: Real-time speed and differential pressure tracking for high-speed surge prevention logic.
Transparency SOP: QA & Testing
- Backplane & Edge Connector Audit: Inspect all multi-pin VME gold contacts under magnification for bending, oxidation, or microscopic trace degradation.
- Dynamic Signal Generator Testing: Connect multi-channel frequency generators to verify speed channel reading accuracy across low-frequency (idle) and high-frequency (overspeed) spectrums.
- Loop Calibration & Current Drive: Force 4–20 mA test signals across all 8 analog input channels while verifying driver current precision on all 4 actuator output circuits.
- Hot-Swap Stress Simulation: Cycle the module in and out of a powered MicroNet test rack backplane 10 consecutive times to confirm seamless handshake auto-configuration routines.
- Burn-in Chamber Pass: Run continuous load-simulation software in a 55°C thermal chamber for 24 hours to eliminate latent thermal semiconductor drift.
- 5437-1119

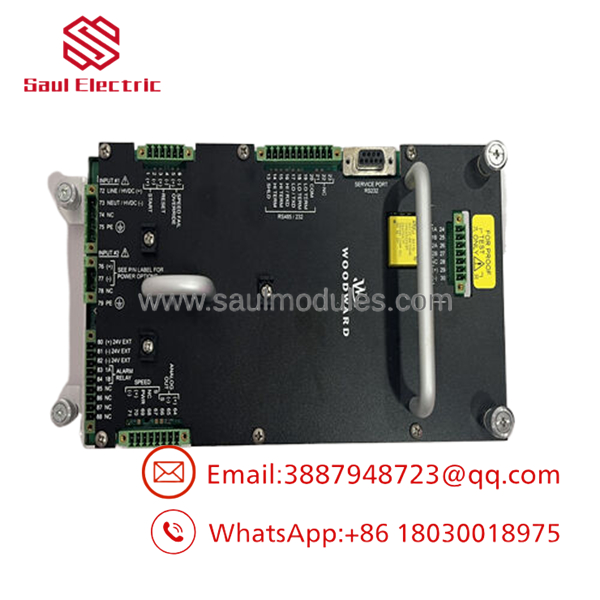

- 5437-1119
The Veteran’s Tech Trap Guide
- ⚠️ FTD Field Termination Module Matching: Do not mix up the Field Termination Module (FTM) and cable harness paired with the 5437-1119. Using an incorrect FTM or unshielded multi-conductor cable will result in signal offset errors on the 4–20 mA loops or lost pulses on speed channels.
- PRO TIP: Check Actuator Jumper Settings: Ensure board jumpers or software configuration bits for output channels match the target valve drive requirements (e.g., standard 4–20 mA current loop vs. high-current 0–200 mA direct actuator coil drive) before commissioning!
- ⚠️ Ejector Handle Torque: Never force the top and bottom latch levers during insertion. Misaligning the module pins with the backplane connector can bend VME bus pins on the backplane itself, turning a single-module swap into a full chassis replacement headache.
Dynamic FAQ
Q: Is the Woodward 5437-1119 hot-swappable in a live MicroNet chassis?
A: Yes. When installed in a redundant MicroNet or MicroNet Plus chassis, the 5437-1119 can be inserted or removed under power without shutting down the main processor or affecting adjacent system I/O modules.
Q: What type of speed sensors are supported by this board?
A: The speed channels support standard passive Magnetic Pickups (MPUs) as well as active Proximity Probes (eddy current sensors), selectable via software parameters or field wiring configurations.
Q: Do I need to program firmware onto a new 5437-1119 module before installation?
A: No manual firmware flash is required. Once seated into the MicroNet backplane, the primary CPU automatically identifies the module and downloads the operating software and channel mapping parameters stored in the main GAP logic file.
Q: How are output drive currents handled for hydraulic actuator valves?
A: The analog output channels can be configured to drive standard 4–20 mA process positioners or configured as direct-drive outputs capable of delivering up to 200 mA to drive servo valves directly.
Q: What warranty is provided on New Surplus or Reconditioned 5437-1119 cards?
A: All Woodward 5437-1119 modules supplied carry a full 1-year replacement warranty, fully bench-tested on certified MicroNet test racks before shipment.
