Description
Product Introduction
The Woodward 5437-523 is a dedicated Analog Field Terminal Module (FTM) engineered for use with Woodward’s MicroNet and MicroNet TMR (Triple Modular Redundant) turbine control platforms. It functions as the critical connection point between field instrumentation—such as 4–20 mA transmitters, RTDs, thermocouples, and valve positioners—and the internal VME I/O processing cards inside the main MicroNet chassis.
By breaking out multi-conductor high-density ribbon cables into standard industrial screw terminals, the 5437-523 simplifies cabinet wiring and isolates sensitive system electronics from field fieldbus noise and high-voltage transients.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Woodward Inc. |
| Part Number | 5437-523 |
| System Compatibility | MicroNet, MicroNet TMR, MicroNet Plus |
| Module Type | Analog Field Terminal Module (FTM) |
| Connector Type | 37-pin High-Density D-Sub / Screw Clamp Terminal Strips |
| Signal Handling | Analog Inputs (4–20 mA, 0–5V, 0–10V) / Analog Outputs |
| Mounting | Standard 35mm DIN Rail |
| Operating Temperature | -40°C to +70°C |
| Relative Humidity | 5% to 95% non-condensing |
Application Scenarios & The “Trench” Experience
In gas turbine power plants and marine propulsion skids running Woodward MicroNet governors, field wiring updates can present major risks. During a governor modernization on a combined-cycle power station, engineers needed to land 16 new 4–20 mA fuel valve feedback loops into the main chassis. Utilizing pre-wired Woodward 5437-523 FTM blocks allowed the technician team to perform point-to-point ring-out checks on the cabinet terminals before plugging the 37-pin cable into the live MicroNet Analog I/O card—minimizing commissioning downtime and eliminating miswiring hazards.
- Gas & Steam Turbine Control – Main governor speed control, fuel valve actuator positioning, and temperature monitoring loops.
- Compressor Stations – Anti-surge valve feedback and multi-stage pressure/temperature transmitter field routing.
- Marine Propulsion Systems – Main engine speed governing and pitch control interface wiring.
Transparency SOP: Quality Assurance & Testing
Every Woodward 5437-523 module undergoes a rigorous 5-step inspection protocol prior to shipment:
- Physical Inspection: Thorough check of the green DIN rail carrier frame, terminal block screw threads, PCB traces, and 37-pin D-sub connector pins for corrosion or bent legs.
- Terminal Continuity Test: Pin-to-terminal point-to-point resistance measurement across all channels to verify trace integrity.
- High-Potential (Hi-Pot) & Isolation Testing: Channel-to-channel and channel-to-ground isolation checks to ensure no internal short circuits.
- MicroNet Bench Test: Connected to a live MicroNet test rack via standard Woodward 37-pin cable harness to verify signal pass-through under load.
- ESD Safeguard Packaging: Cleaned, fitted with protective connector covers, and sealed in anti-static shielding with moisture-absorbing desiccant.

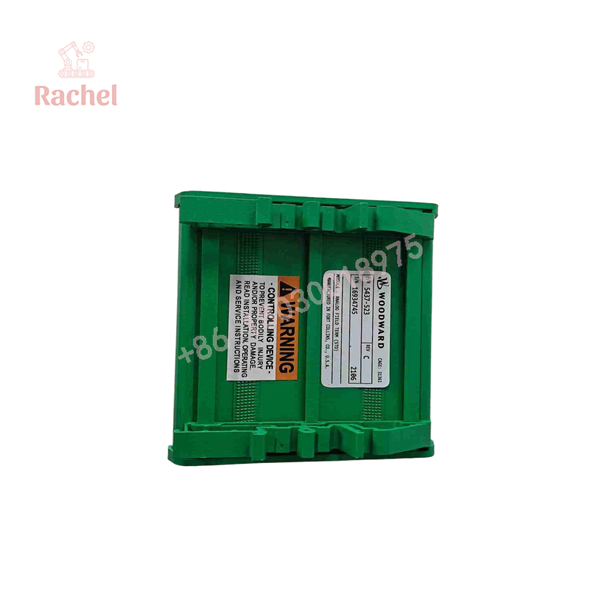

5437-523

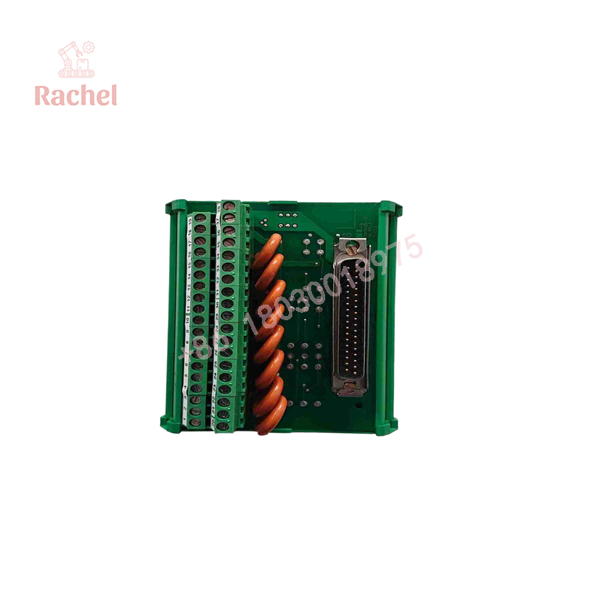

5437-523
The Veteran’s Tech Trap Guide (Crucial Value-Add)
- ⚠️ Cable Shielding Grounding: Ensure field cable shields are landed strictly at the designated shield terminals on the 5437-523 or cabinet single-point ground. Floating or double-grounded shields induce ground loops that introduce noise into 4–20 mA fuel demand signals.
- ❗ Pinout Mapping vs. I/O Card Type: Double-check your Woodward system manual for cable routing. The 5437-523 terminal assignments correspond directly to specific high-density analog I/O module pinouts. Swapping cable channels between Simplex and TMR cards can misroute 24 VDC loop transmitter power.
- ⚠️ Terminal Screw Over-Torquing: Use the correct size precision screwdriver when terminating field wires. Over-torquing the terminal screws can crack the internal PCB solder pads on older DIN-rail FTM bases.
Frequently Asked Questions (FAQ)
Q: Is the Woodward 5437-523 compatible with both Simplex and TMR MicroNet systems?
A: Yes. The 5437-523 FTM can be used in Simplex configurations or paired across redundant branches in MicroNet TMR architectures depending on the specific cable harness and I/O module used.
Q: Does this module require an external power supply?
A: The 5437-523 itself is a passive terminal/routing interface, but 24 VDC loop power for active field transmitters is routed through the module via the MicroNet chassis or external field power terminals.
Q: What is the recommended cable to connect the 5437-523 to the MicroNet I/O card?
A: Standard Woodward shielded 37-pin high-density cable assemblies are used to interface the 5437-523 with MicroNet analog I/O cards.
Q: What warranty coverage is provided with this unit?
A: Every Woodward 5437-523 module shipped includes a full 12-month operational replacement warranty.
Q: Are these genuine Woodward manufactured components?
A: Yes. All stock consists of original OEM hardware sourced from system retrofits, spares inventories, or plant decommissioning projects.
