Product Introduction
The Woodward 5448-890 is an SPM-D10 series microprocessor-driven digital synchronizer tailored for three-phase AC generator systems. Designed for seamless integration into power generation panels, it interfaces directly with engine governors and automatic voltage regulators (AVRs). Primary industrial applications include standby power, co-generation plants, marine switchboards, and peak-shaving diesel gensets requiring fast, repeatable breaker closures.
Unlike legacy analog units (like the old SPM-A series), the 5448-890 uses True RMS voltage processing to prevent harmonic distortion from fouling your phase matching calculations. It active-matches voltage, frequency, and phase before signaling a phase-lock breaker closure, eliminating mechanical stress on prime movers during paralleling.
Key Technical Specifications
| Parameter | Specification |
| Operating Voltage (Power Supply) | 24 VDC (\pm 25\%), 10W Max Power Consumption |
| Generator / Bus Sensing Inputs | 100 VAC nominal (True RMS sensing) |
| Frequency Range | 40.0 Hz to 70.0 Hz |
| Biasing Outputs | Discrete (Raise/Lower) & Scalable Analog (\pm 3 VDC speed, \pm 5 VDC voltage default) |
| Relay Switching Max | 250 VAC / 24 VDC, AgCdO contacts |
| Enclosure / Mounting | Flush DIN panel mount (144 \times 72 \times 122 mm) |
| Protection Rating | IP42 Front panel (IP20 Backplane chassis) |
| Operating Temperature | -20°C to +70°C |
| Certifications | UL Listed, cUL, CE Marked |
Application Scenarios & The “Trench” Experience
Few things stress an electrical engineer like watching a 2 MW diesel gen-set slam across an unsynchronized breaker. We’ve seen a plant where a drifted analog synchronizer closed a breaker 25 degrees out of phase. The torque transient sheared the flywheel bolts and dropped the critical process line for 36 hours. Swapping in a pre-tested, digital SPM-D10 brings peace of mind—it checks vector drift, forces true slip-frequency matching, and refuses to fire the closure contact until parameters sit dead-center.
- Marine Auxiliary Switchboards – Paralleling vessel diesel generators under varying ocean wave loads. The True RMS sensing prevents harmonic noise from thruster VFDs from spoofing the phase detector.
- Hospital Emergency Backup Power – Auto-synchronizing multi-megawatt standby banks to the main bus during utility dropouts. Needs millisecond-level precision to pass annual load-bank tests.
- Wastewater Treatment Plants – Continuous peak-shaving operations where peak generators tie into the utility grid via Woodward speed governors.
5448-890 SPM-D10

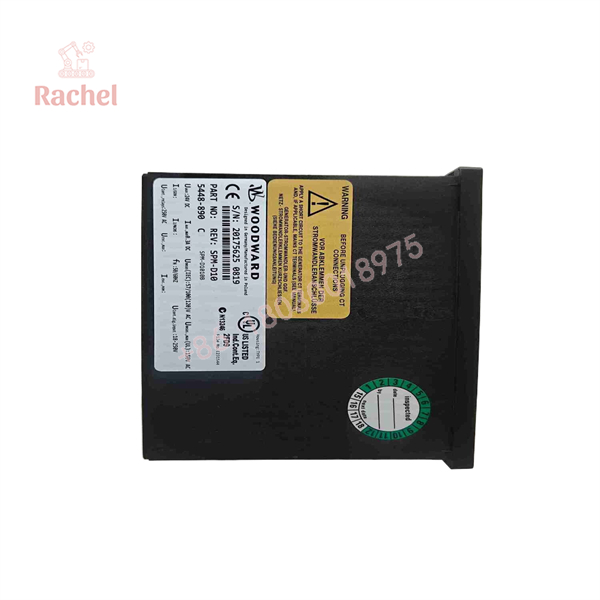

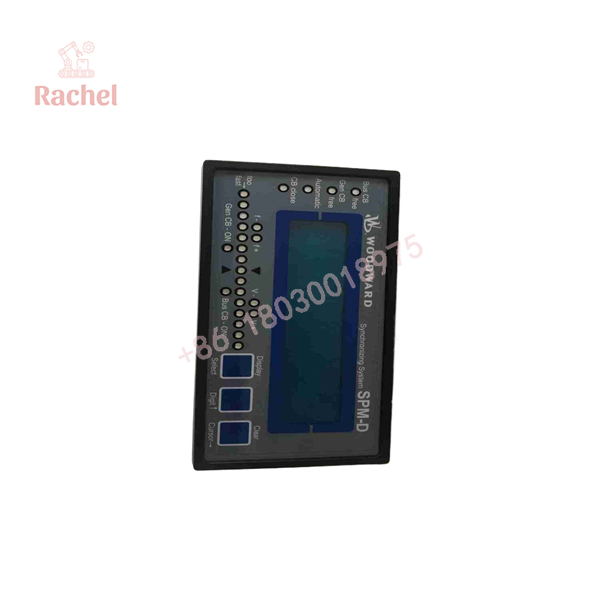

5448-890 SPM-D10
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual Woodward test benches. Every 5448-890 undergoes our 5-step validation workflow before dispatch:
- Inbound Inspection: Visual audit for physical damage, cracked plastic casings, pin corrosion, or tampered OEM factory seals.
- Bench Power-On & Loop Shake: Powered via a regulated 24VDC bench power supply. We verify internal boot sequences and HMI screen integrity.
- Simulated Synchro-Check: We inject twin AC signal generators into both generator and bus sense channels to test phase-lock accuracy, LED synchroscope tracking, and slip-frequency trip logic.
- Output Drive Verification: Analog output bias pins (\pm 3V, \pm 5V) are scope-tested to guarantee low-noise signal transmission to the speed controller.
- Firmware Log & ESD Safe Seal: Firmware revision is documented, configuration parameters are cleared to factory default, and the unit is sealed inside anti-static shielding.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
- ⚠️ Check the Speed Governor Input Impedance: If you’re wiring the 5448-890 analog outputs (\pm 3 VDC) directly into a non-Woodward speed controller, check the governor input impedance first. Connecting low-impedance differential inputs can pull the analog bias down and cause sluggish governor response.
- ❗ Never Ignore the Breaker Closure Time Setting: The SPM-D10 calculates when to send the close pulse based on breaker mechanical response delay. If your switchgear breaker takes 80 ms to close, but the 5448-890 is configured for 50 ms, your breaker will close past 0 degrees phase match. Dial this parameter in using a timing analyzer!
- ⚠️ DIP Switch & Software Config Mirroring: When swapping out an older unit, don’t assume the original hardware is plug-and-play. Take a photo of the rear terminal layout and read the parameter file with Woodward ToolKit before pulling the defective unit. Trust me—doing this at 2 AM saves hours of tracing wires.
Frequently Asked Questions (FAQ for Conversion)
Q: Is the Woodward 5448-890 hot-swappable?
A: No. Pulling this module while the system is powered will drop your control signals and can arc the rear screw-terminal block. Always isolate the 24VDC supply and short out CT/PT circuits before removing wires.
Q: Can I use the 5448-890 to replace an older SPM-A synchronizer?
A: Yes, but it is not a direct drop-in pin-for-pin card swap. The physical footprint differs, and wiring terminations must be adapted from the legacy terminal footprint to the SPM-D10 layout.
Q: How do I configure parameters on the 5448-890?
A: You can adjust core settings directly through the 3-button front panel interface, or connect via PC using Woodward’s ToolKit service software for deep parameter flashing.
Q: What is the warranty coverage on this surplus/refurbished unit?
A: All our surplus and tested-refurbished 5448-890 units include a full 12-month operational warranty. If it faults during normal field commissioning, we swap it out immediately.
Q: Why is your pricing lower than buying directly from the factory?
A: We source surplus inventory, plant overstock, and pristine decommissioned components globally. You get original Woodward components tested to factory specs without the 16-week OEM factory lead times.
