Woodward 5466-1158 MicroNet I/O Module

Product Introduction & Engineering Value

The Woodward 5466-1158 is a high-density discrete I/O module for MicroNet Simplex control systems. Its 48 discrete inputs and 24 discrete outputs allow a substantial number of field signals to be handled through a single MicroNet I/O module, making it particularly relevant to turbine-control cabinets with established field wiring.

There is an important compatibility detail here. Woodward Product Change Notification 06920 identifies 5466-1158 as the HDDIO replacement for certain 5200 CPU systems running Coder 4.06 or later, while 5466-1050 is identified for newer Coder 5.04-or-later applications. That distinction matters when selecting a legacy replacement.

Technical Specifications

Woodward documentation lists 5466-1158 specifically as a MicroNet Simplex 48/24 HDDIO-2 Smart-Plus module. Supplier technical records additionally report galvanic isolation and the 5 ms update specification.

Field Application & The “Trench” Experience

A realistic maintenance scenario is a legacy turbine cabinet running a CPU5200 where several discrete points suddenly become unavailable. The technician traces the problem back to the HDDIO section and finds a failed 5466-1158. The replacement appears straightforward, but the old cabinet contains years of accumulated configuration changes.

The correct approach is to document the existing FTM arrangement and field wiring before removing the module. After installation, the technician verifies the MicroNet diagnostics, checks representative input and output points, and confirms the turbine permissive and sequencing logic before startup.

Niche application scenarios include:

1. Steam turbine extraction-control permissives — discrete valve, pressure, and auxiliary-equipment status signals can be integrated into the control sequence.
2. Turbine lubrication-system interlocks — pump status, pressure-switch signals, and permissive contacts can be monitored through the high-density I/O architecture.
3. Generator-set protective sequencing — shutdown, alarm, breaker-status, and auxiliary-system signals can be incorporated into a compatible MicroNet application.

Woodward’s 505DE documentation specifically lists 5466-1158 as a component in a 505DE kit alongside MicroNet chassis, FTM, and analog I/O hardware.

Transparency SOP: QA & Testing

For New Surplus or refurbished 5466-1158 inventory, the inspection should focus on both the hardware and the condition of the I/O interfaces.

1. Part-number verification — confirm the label reads 5466-1158 and record serial/revision information where available.
2. Physical inspection — check the PCB, card guides, connectors, front-panel hardware, and mounting points.
3. I/O inspection — verify the 48/24 architecture and inspect the field-interface arrangement.
4. Communication/system test — where compatible MicroNet test equipment is available, verify module initialization and I/O operation.
5. Functional checkout — test representative discrete input and output channels rather than relying solely on a power-up test.
6. Condition documentation — clearly identify whether the unit is New Surplus, Used, or Refurbished.

Woodward’s documentation also lists 5466-1158 as NEW in applicable MicroNet bills of material, while current third-party listings can offer units under different inventory conditions.

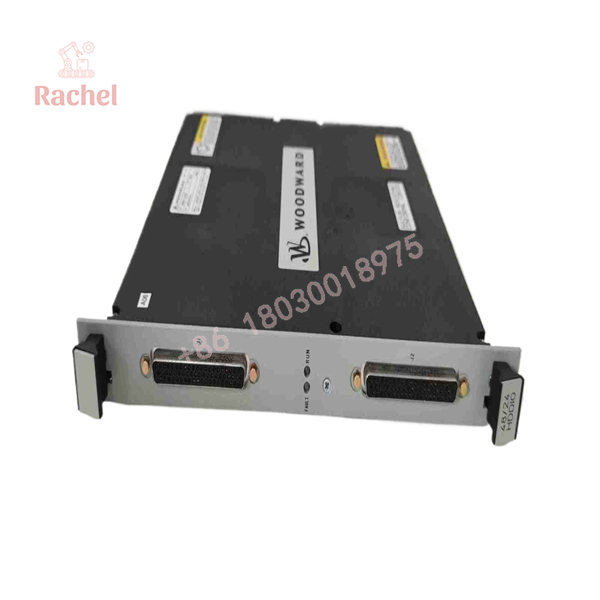

5466-1158

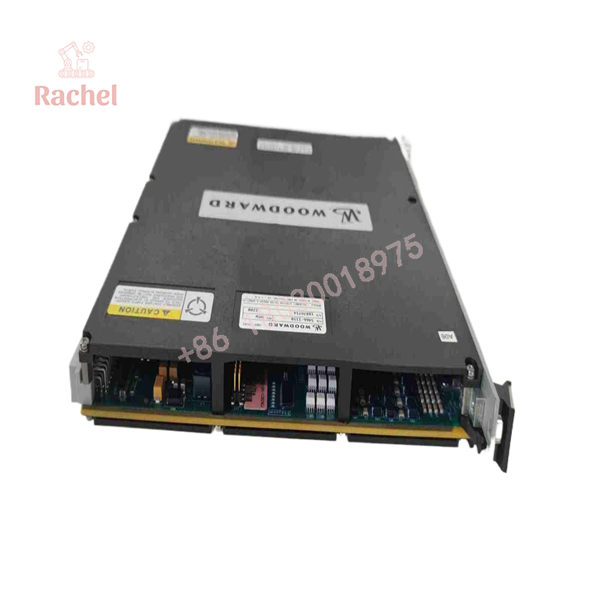

5466-1158

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Confusing 5466-1158 with 5466-1156.
The two numbers are close, but the application is not the same. Woodward identifies 5466-1158 for Simplex applications and 5466-1156 for TMR applications. Do not interchange them based on appearance or channel count.

⚠️ Trap #2 — Ignoring the Coder version.
This is the big one. Woodward’s Product Change Notification specifically identifies 5466-1158 as the replacement path for certain 5200 CPU / Coder 4.06-or-later systems. For Coder 5.04 or later, Woodward identifies 5466-1050 as the preferred Simplex replacement.

PRO TIP: Record the CPU part number and Coder version before ordering the spare. The I/O channel count alone does not establish software compatibility.

⚠️ Trap #3 — Forgetting the FTM arrangement.
The 5466-1158 can be associated with two 24/12 Discrete FTMs and high-density cables. Document the existing FTM configuration before removing the old module.

Dynamic FAQ

What is Woodward 5466-1158?

It is a MicroNet Simplex 48/24 HDDIO-2 Smart-Plus module providing 48 discrete inputs and 24 discrete outputs for compatible Woodward control systems.

Is 5466-1158 a CPU?

No. It is an I/O module, not the MicroNet CPU. It operates as part of the larger MicroNet control architecture.

What is the difference between 5466-1158 and 5466-1156?

5466-1158 is the Simplex version, while 5466-1156 is the TMR version. Woodward lists them separately in its MicroNet documentation.

Is 5466-1158 backward compatible?

The answer depends on the specific MicroNet software configuration. Woodward’s Product Change Notification identifies 5466-1158 as the direct replacement path for the older 5466-258 HDD module in certain 5200 CPU systems running Coder 4.06 or later. For newer Coder configurations, Woodward identifies other HDDIO modules.

Can 5466-1158 be supplied as New Surplus?

Yes. Suppliers currently list the part in unused/new condition, although actual inventory condition varies. Confirm the physical condition, original labeling, serial information, test status, and packaging before purchase.

What warranty applies to a 5466-1158 replacement?

Warranty depends on the supplier and unit condition. Current listings show supplier-specific warranties, including one-year and longer warranty offerings. The applicable warranty should be stated on the quotation or purchase documentation.
