Description
Product Introduction
The Woodward 5466-316 is a High-Speed I/O (HSIO) module designed for Woodward’s flagship MicroNet and MicroNet TMR (Triple Modular Redundant) turbine control platforms. Built specifically for critical turbomachinery applications—including steam turbines, gas turbines, and large industrial compressors—this module interfaces fast-acting discrete signals, trip inputs, and high-frequency pulse speed sensors directly with the main system CPU.
In turbine governor applications, milliseconds mean the difference between stable load control and an overspeed trip disaster. The 5466-316 bypasses traditional I/O scan bottlenecks by processing high-speed events locally on the card before passing pre-filtered data over the custom MicroNet backplane. This architecture minimizes CPU interrupt overhead and maintains deterministic control loop updates under extreme process transients.
Key Technical Specifications
| Parameter | Value |
| System Compatibility | Woodward MicroNet, MicroNet TMR, MicroNet Plus |
| Backplane Interface | MicroNet VME-based custom parallel backplane |
| I/O Type | High-Speed Discrete & Digital Transceiver |
| Input Filter Response | Configurable microsecond-level hardware filtering |
| Power Consumption | Draws directly from MicroNet power supply chassis (+5V / ±15V) |
| Isolation | 500 Vrms channel-to-backplane optical isolation |
| Diagnostics | Onboard fault LEDs (SYS, FAULT, I/O Status) |
| Operating Temperature | -40°C to +70°C (-40°F to 158°F) |
| Conformal Coating | Standard factory conformal coating for harsh environments |
Application Scenarios & The “Trench” Experience
Picture this: It’s 4:00 AM at a combined-cycle power plant during peak grid demand. The gas turbine governor system throws a sudden HSIO rack fault, freezing the fuel valve actuator loop. The plant operator is faced with a runback scenario that risks tripping a 250 MW block. The culprit is a failed channel driver on a legacy 5466-316 card caused by decades of vibration and cabinet heat buildup. Every minute spent searching for a replacement costs tens of thousands of dollars in lost power generation revenue.
- Power Generation – Heavy-Duty Gas Turbine Governors – Handles fast-acting trip signals and fuel skid valve position feedback loops.
- Oil & Gas Processing – Critical Compressor Surge Control – Captures rapid pressure differential spikes and controls fast-opening recycle valves.
- Refinery Utility Plants – Mechanical Drive Steam Turbines – Monitors high-speed governor inputs and emergency shutoff valve limits.
In a recent emergency at a gulf coast chemical plant, an aging MicroNet rack experienced a localized voltage spike that cooked two I/O slots. Dropping in a tested, pre-inspected 5466-316 replacement module restored fast-loop telemetry and allowed the instrumentation team to clear the system hardware trip latch in under two hours.
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual Woodward MicroNet test chassis. Here is our exact verification SOP:
- Inbound & Conformal Coating Inspection: We verify PCB traces, backplane pin integrity, edge connectors, and ensure the factory conformal coating shows no thermal blistering or moisture degradation.
- Backplane Power-On & POST: The module is installed into a powered MicroNet rack to check initial current draw and pass Power-On Self-Test (POST) sequences.
- GAP Software Handshake: We establish communication with the main CPU running Woodward Coder/GAP software to verify slot addressing, board ID recognition, and diagnostic health registers.
- Channel Signal Injection: Using high-speed signal generators, we test discrete input states and pulse-train limits across every channel to confirm zero signal attenuation.
- Thermal & Vibration Stress Verification: Cards undergo thermal soak testing to ensure stable component operation under elevated cabinet temperatures.
- Anti-Static ESD Packaging: Cleared modules are thoroughly cleaned, protected against static, and sealed in heavy-gauge moisture-barrier bags with custom foam block protection.

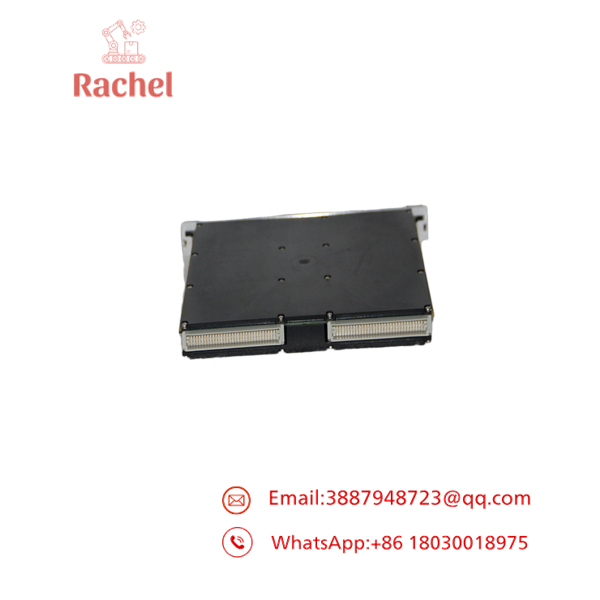

5466-316

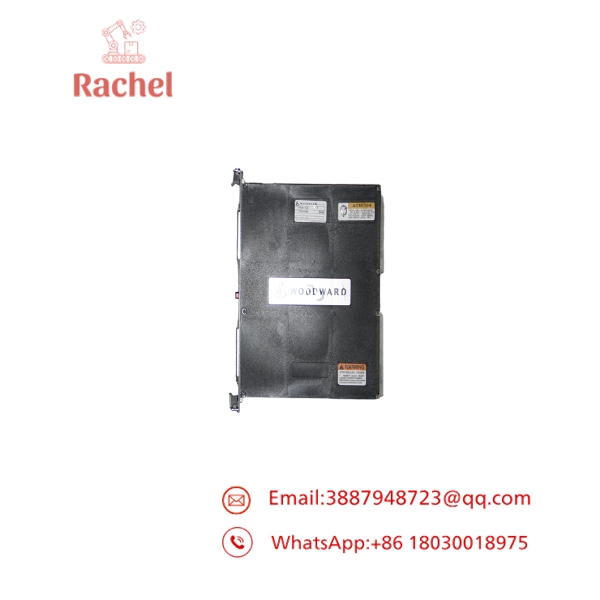

5466-316
The Veteran’s Tech Trap Guide (Crucial Value-Add)
- ⚠️ Never force the module into the card cage! Woodward MicroNet chassis use high-density backplane connectors. If you feel resistance, stop. Align the top and bottom card guides carefully, and press the injector handles simultaneously until they latch flush. Forcing it will bend the backplane pins on the rack.
- ❗ Verify your jumpering and field wiring blocks. Depending on your specific MicroNet system configuration (Single CPU vs. TMR Redundant), field wiring blocks (FTBs) must match the card’s pinouts. Take a photo of the adjacent slot wiring and terminal block jumpering before pulling the bad card.
- ⚠️ Check for conformal coating thickness on ground pads. If you are installing a refurbished card in an ungrounded or high-EMC cabinet, ensure the mounting screw points make clean metallic contact with the chassis rail to bleed off static charges.
- ❗ Double-check system software revision. Ensure your GAP application software file supports the hardware revision of the replacement 5466-316 card. A mismatch in hardware block revisions can cause the CPU to flag an “Unsupported I/O Module” alarm on boot.
Frequently Asked Questions (FAQ for Conversion)
Q: Is the Woodward 5466-316 hot-swappable in a running MicroNet chassis?
A: In MicroNet TMR systems configured for online replacement, modules can be swapped online while the remaining redundant legs carry the control load. However, in single-channel MicroNet racks, pulling an active I/O module will drop the associated loops and likely trip the unit. Always consult your plant safety matrix before pulling a card live.
Q: Can this card be used in both standard MicroNet and MicroNet TMR chassis?
A: Yes, the 5466-316 module architecture is designed to integrate into both single-channel MicroNet chassis and Triple Modular Redundant (TMR) architectures, provided the proper Field Termination Assembly (FTA) and cable cabling are utilized.
Q: What is the lead time on this discontinued part?
A: Because these modules are discontinued by Woodward, availability depends on current surplus stock. We keep fully tested, verified 5466-316 units in stock for immediate same-day emergency dispatch.
Q: Are these modules original Woodward manufactured parts?
A: To be completely clear, yes. We only supply 100% genuine original Woodward factory modules. We do not sell reverse-engineered or third-party cloned boards.
Q: What warranty coverage do you provide on this legacy module?
A: We cover all Woodward 5466-316 modules with a full 12-month operational warranty. If the module experiences any failure or backplane fault under normal operating conditions within 365 days, we will replace it or issue a full refund immediately.
