Woodward 5501-365 Governor I/O Module TMR Control

Product Introduction & Engineering Value

The Woodward 5501-365 is a field termination module used with Woodward’s TMR High Density Combo I/O architecture. It is not a standalone analog input card; its primary job is to provide the field-side termination interface for compatible MicroNet control hardware. Woodward documentation specifically pairs it with the 5466-253 TMR High Density Combo I/O module.

That distinction matters during replacement. The 5501-365 belongs to an older HD Combo architecture, and Woodward has introduced newer replacement modules and different FTM arrangements for later systems. Existing 5501-365/5466-253 combinations remain relevant for retrofit and spare-parts requirements.

Technical Specifications

Woodward’s 25182 manual identifies the 5466-253 configuration as TMR Combo I/O: four MPU inputs, eight 0–5 V inputs, four 4–20 mA outputs, and two proportional actuator outputs, with two 5501-365 FTMs.

Some third-party listings describe 5501-365 using additional electrical values such as 24 VDC supply, 500 Vrms isolation, or specific analog-channel characteristics. Those specifications are not all confirmed by the Woodward sources reviewed here, so they should be verified against the applicable 5501-365/5466-253 system manual before being used for engineering design.

Field Application & The “Trench” Experience

Consider a turbine shutdown where one of the two 5501-365 FTMs in a 5466-253 TMR configuration has developed a field-interface problem. The module itself may look completely normal. There may be no obvious burnt component or mechanical damage.

The maintenance team therefore checks the cabinet drawings, identifies the associated 5466-253 card, confirms which FTM serves each field connection, and documents the existing cable and terminal arrangement before removal. After replacement, the affected MPU and analog channels are checked against the control-system diagnostics before the turbine is returned to operation.

Specific application scenarios include:

1. Steam turbine speed sensing — MPU signals from turbine speed pickups can form part of the high-density combination I/O architecture.
2. Turbine process feedback — 0–5 V instrumentation signals can be integrated through the associated combo I/O system.
3. Actuator control — 4–20 mA outputs and proportional actuator signals can be handled through the associated 5466-253 configuration.

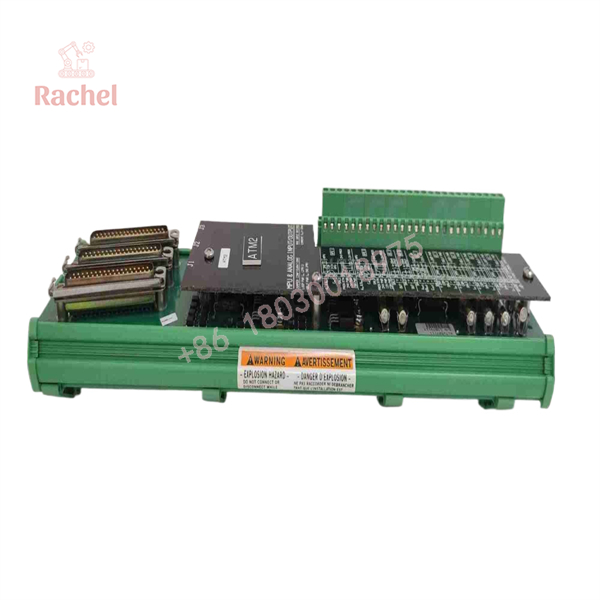

5501-365

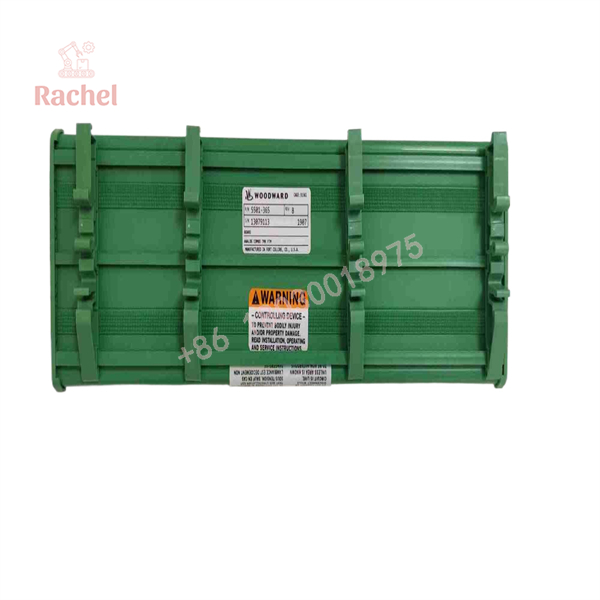

5501-365

Transparency SOP: QA & Testing

For New Surplus 5501-365 inventory, inspection should focus heavily on the connectors and field termination interface.

1. Part-number verification — confirm the module is marked 5501-365.
2. Physical inspection — examine connectors, terminal interfaces, PCB surfaces, mounting points, and labels.
3. Configuration check — confirm the unit is intended for the customer’s TMR/5466-253 architecture.
4. Electrical inspection — check for visible component damage, contamination, corrosion, or evidence of previous field installation.
5. Functional testing — where an appropriate Woodward test setup is available, verify the applicable field-interface circuits.
6. Documentation — record serial information, condition, test scope, and warranty.

Current supplier listings show 5501-365 offered as used, never-used original packaging, and refurbished inventory, so the exact condition should be stated on the quotation.

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Calling 5501-365 an ordinary analog I/O card.
It is an FTM. The actual control/I/O function comes from the associated MicroNet HD Combo module. Treating the FTM as a standalone replacement card is a fundamental identification error.

⚠️ Trap #2 — Confusing 5501-365 with 5501-371.
Woodward documentation assigns these FTMs to different combo-I/O configurations. The 5501-365 is associated with the TMR 5466-253 architecture, while 5501-371 is associated with the simplex 5466-316 configuration.

PRO TIP: If the existing cabinet contains 5466-253, check whether the configuration uses two 5501-365 FTMs before ordering. Woodward explicitly documents that pairing.

⚠️ Trap #3 — Assuming newer HD Combo modules use the same FTM.
They do not necessarily. Woodward’s newer replacement architecture uses different modules and FTMs, including 5501-372, 5501-502, 5437-523, and 5501-376 depending on the application.

Dynamic FAQ

What is Woodward 5501-365?

5501-365 is an Analog Combo TMR Field Termination Module used in Woodward MicroNet control systems. Woodward specifically lists it with the 5466-253 TMR High Density Combo I/O configuration.

Is 5501-365 a CPU or controller?

No. It is a field termination module, not a CPU. It provides the field-side interface associated with the compatible high-density combination I/O architecture.

Which Woodward module uses 5501-365?

Woodward documentation identifies 5466-253 as a TMR High Density Combo I/O module using two 5501-365 FTMs.

Can 5501-365 be replaced by a newer FTM?

Do not assume direct substitution. Woodward’s newer HD Combo architecture uses different I/O modules, FTMs, and cables. The existing CPU, Coder version, module configuration, and wiring must be checked before migration.

Is 5501-365 available as New Surplus?

Supplier inventory currently includes units described as never-used original packaging as well as refurbished and used units. Verify the actual condition and request photographs or test documentation when the distinction matters.

What warranty should I expect?

Warranty is supplier-specific. For example, current supplier listings show one-year and two-year warranty offerings depending on the seller and inventory condition. Confirm the warranty for the exact unit before purchase.
