Product Introduction & Engineering Value
The Woodward 5503-282 is the field-terminal assembly associated with the MicroNet High Density Versatile Input Module. Its job is straightforward but important: provide the field-side interface for the HDVIM’s analog-input, RTD, and thermocouple signal paths. This makes it relevant to turbine and engine control installations where temperature and process instrumentation must be brought into the MicroNet control system.
This is a legacy part. Woodward issued a 2014 product-change notice stating that the HDVIM module and its associated 5503-282 FTM were being inactivated because of electronic component obsolescence, with no direct drop-in replacement identified at that time. That lifecycle status matters when evaluating a replacement: confirm the complete hardware configuration rather than assuming a newer-looking module is electrically interchangeable.
Technical Specifications
- Manufacturer: Woodward, Inc.
- Part Number: 5503-282
- Module Designation: FTM HDVIM
- Associated Module: 5503-279 MicroNet HDVIM
- Supported Signal Classes: AI, RTD, TC
- Assembly Type: Through-hole assembly
- System Family: Woodward MicroNet
- Control Application: Turbine and engine control systems
- Installation Role: Field-terminal interface for HDVIM
- Lifecycle: Obsolete / inactivated
- Original Obsolescence Notice: Woodward PCN 06921
- Replacement Approach: Functional replacement requires configuration review rather than assuming a direct drop-in substitute
Woodward’s documentation also lists compliance markings for the 5503-282 under several approval categories, including CSA, CE LVD, CE EMC, ABS, DNV, and LRS in the referenced MicroNet documentation.
Important specification note: Some aftermarket listings attribute numerical electrical specifications such as 24 VDC operation, temperature limits, isolation ratings, and channel counts directly to 5503-282. Those figures are not all established by the Woodward documentation located for this part number, so they should be treated as configuration-dependent or vendor-reported values, not universal specifications for every 5503-282 assembly.
Field Application & The “Trench” Experience
A realistic replacement scenario is a turbine control cabinet where an existing MicroNet HDVIM installation develops intermittent temperature-input faults. The engineer may initially suspect the RTD or thermocouple wiring, but repeated channel checks point back toward the field-terminal assembly. With a 5503-282 available as the replacement FTM, the maintenance team can preserve the existing field wiring arrangement while troubleshooting the complete HDVIM signal path.
The important part is not simply installing another board. The replacement should be checked against the 5503-279 HDVIM configuration, wiring drawings, revision information, and the actual MicroNet system architecture before energizing the cabinet.
Specific application scenarios
- Gas turbine exhaust-temperature monitoring — RTD/TC signals feeding turbine protection and control calculations.
- Steam turbine auxiliary instrumentation — temperature and process analog signals entering a legacy MicroNet control system.
- Engine-generator package monitoring — field instrumentation connected through an existing HDVIM installation.
The 5503-282 also appears in documented equipment parts lists as a Woodward HDVIM-related component used in turbine-control equipment.

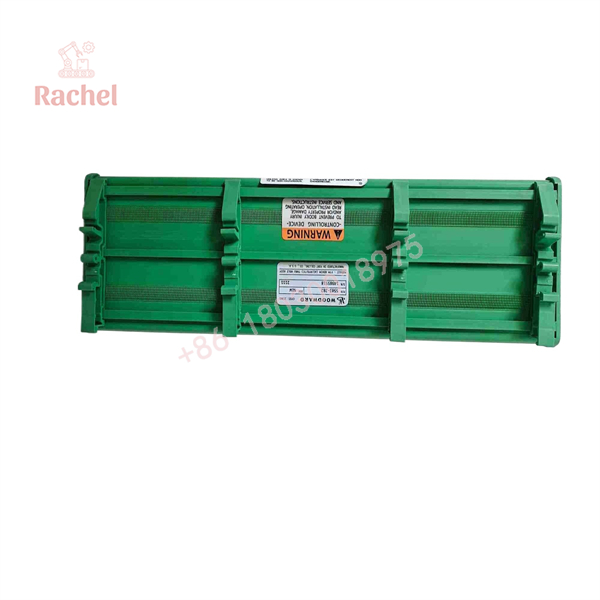

5503-282

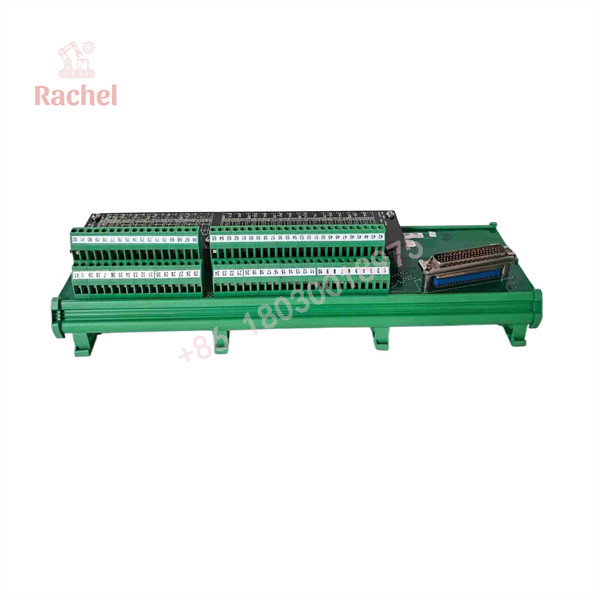

5503-282
Transparency SOP: QA & Testing
For New Surplus 5503-282 stock, a sensible incoming inspection sequence is:
- Part-number verification — confirm the marking reads 5503-282 and inspect the revision/assembly identification.
- Physical inspection — check terminal areas, connectors, PCB condition, mounting hardware, contamination, corrosion, and signs of rework.
- Configuration comparison — compare the physical assembly with the customer’s existing FTM and system documentation.
- Electrical inspection — perform applicable continuity and insulation checks without applying unsupported test voltages.
- Functional verification — where the proper MicroNet test setup is available, verify representative AI/RTD/TC signal paths against the applicable Woodward documentation.
- Traceability — record serial/part markings and test results before shipment.
Because Woodward formally discontinued the HDVIM/5503-282 family, “new surplus” should mean unused legacy inventory, not simply a refurbished module advertised as new. Woodward’s 2014 notice specifically documents the component-obsolescence-driven inactivation.
The Veteran’s Tech Trap Guide
⚠️ Trap #1 — Treating 5503-282 as a generic analog module.
It is specifically identified as the FTM for the HDVIM. Do not substitute another analog-input board merely because the signal types appear similar. The system-level interface matters.
⚠️ Trap #2 — Assuming a direct replacement exists.
Woodward’s own 2014 PCN states that the HDVIM did not have a direct drop-in replacement and instead described combinations of preferred modules that could duplicate its functionality. Confirm the replacement architecture with the applicable Woodward documentation before changing the hardware.
PRO TIP: Photograph and document the existing terminal arrangement before removing the old assembly. On legacy turbine-control systems, wiring records can be more valuable than the part label itself.
⚠️ Trap #3 — Ignoring revision and system configuration.
A correct base part number does not automatically prove system compatibility. Check the associated HDVIM board, MicroNet platform, wiring, firmware/application configuration, and approval requirements.
Dynamic FAQ
Is Woodward 5503-282 a CPU?
No. Woodward identifies 5503-282 as the FTM HDVIM, while the associated 5503-279 is identified as the MicroNet HDVIM board. The 5503-282 should therefore not be treated as a MicroNet CPU.
What signals does the 5503-282 support?
The Woodward documentation identifies the HDVIM FTM for AI, RTD, and thermocouple (TC) signal types.
Is the 5503-282 still manufactured?
Woodward’s Product Change Notification 06921 states that the HDVIM and associated 5503-282 FTM were scheduled for inactivation because of electronic component obsolescence. Current availability therefore generally depends on remaining inventory, surplus stock, or repair/replacement solutions.
Does 5503-282 have a direct drop-in replacement?
Woodward stated that the HDVIM had no direct drop-in replacement at the time of the 2014 obsolescence notice. The notice described combinations of preferred modules that could duplicate the functionality. A current replacement should therefore be engineered against the actual application rather than selected by part-number similarity.
What should I provide when requesting a replacement?
Provide the 5503-282 part number, revision marking, associated HDVIM part number, MicroNet control-system type, existing wiring information, and application details. A clear photo of the module label and terminal area is also useful for confirming the exact assembly.
Can a New Surplus 5503-282 be supplied with a warranty?
Warranty coverage depends on the supplier and the stock condition. For New Surplus material, the supplier should clearly distinguish unused original inventory from refurbished or repaired material and state the applicable warranty terms before purchase.
