Woodward 8200-1302 505D Steam Turbine Digital Governor

Description

Product Introduction & Engineering Value

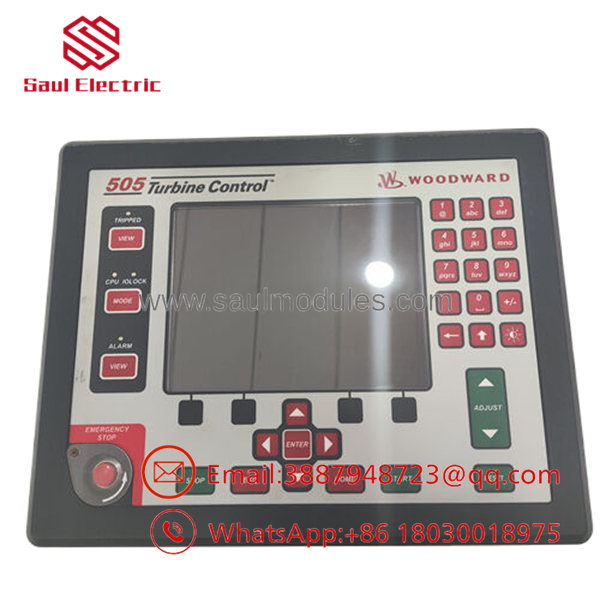

If you have commissioned steam turbines anytime over the last two decades, you know the Woodward 505 series is the workhorse of industrial prime mover control. The 8200-1302 hardware iteration brings an integrated graphical front panel straight onto the enclosure door, eliminating the hassle of mounting separate external display units or wrestling with cryptic two-line LED keypads during commissioning.

Engineered to operate as a direct drop-in replacement for legacy 9907-164 units, this module processes two MPU/proximity speed channels and eight configurable analog inputs while delivering adaptive PID loop response to handle sudden generator load changes. It keeps critical turbomachinery locked on target during grid fluctuations without driving control valves into hunting oscillations.

Technical Specifications

• Operating Input Voltage: 18 to 36 VDC (Nominal 24 VDC system power, 4.3 A max current drawing capacity)
• Display Interface: 8.4-inch industrial-grade graphical LCD with full membrane keypad and soft key navigation
• Speed Sensing Inputs: 2 Redundant Channels (Supports Magnetic Pickups, Proximity Switches, or Eddy Current Probes)
• Analog Inputs: 8 Channels (4–20 mA, fully field-assignable to 27 distinct process variable functions)
• Discrete Inputs: 20 Contact Inputs (Includes dedicated hardwired trip, raise/lower, and reset assignments)
• Control Analog Outputs: 2 Channels (4–20 mA output for split-range or single actuator drive output)
• Relay Outputs: 8 Form-C Relay Contacts (Programmable for status alarms, trip relays, and solenoid drive interlocks)
• Communications: Dual Ethernet Ports, Modbus RTU/TCP, CANOpen support for Woodward VariStroke actuators
• Operating Temperature: -30°C to +70°C (-22°F to +158°F) ambient
• Environmental Ratings: IP-54 Front Panel Dust/Splash Guard, ATEX Zone 2 Certified

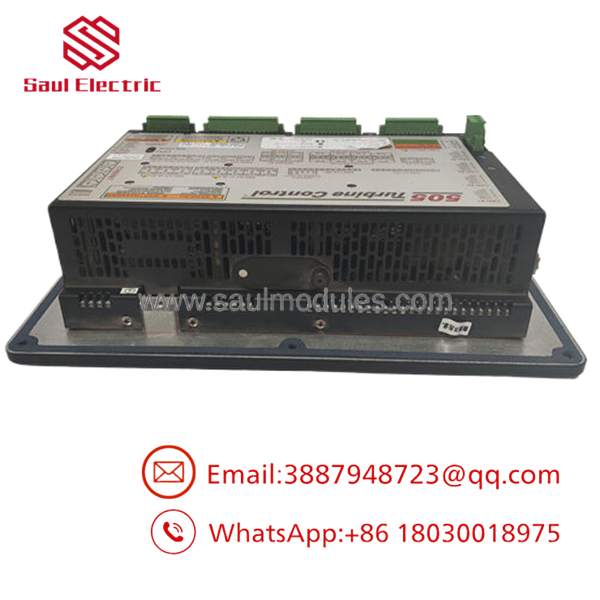

8200-1302

8200-1302

Field Application & The “Trench” Experience

The Trench Story

A Gulf Coast chemical plant suffered an intermittent power supply brownout that fried the main board on an older 505 governor controlling a 12 MW cogen extraction turbine. The plant was losing $40,000 every hour the process steam header remained unpressurized.

The instrument crew pulled an 8200-1302 from local emergency surplus stock. Thanks to its drop-in form factor, the mechanical cutout matched the existing cabinet cutout identically. Using the integrated internal “Turbine Simulator” software mode, the instrument lead verified all 20 contact input logic states and 8 analog scaling curves offline before firing up the boiler header. Total replacement and restart took under 90 minutes, getting process steam back online without tripping the plant’s downstream cracking heaters.

Specific Field Applications

• Refinery Catalytic Cracker Blowers: High-speed driver control requiring critical speed avoidance bands and immediate load rejection handling.
• Paper Mill Extraction Steam Turbines: Dual-bleed header pressure regulation with automated hot/cold start sequencing algorithms.
• FPSO Marine Power Generation: Harsh-environment generator drive application utilizing ATEX-certified, low-voltage DC power feeds with isolated I/O to prevent ground loops on shipboard hull systems.

Transparency SOP: QA & Testing

1. Visual & Structural Audit: Inspect front panel membrane keys, screen coating, terminal block connector pins, and rear housing seals for fatigue or shipping damage.
2. Power Rail Isolation Test: Apply 24 VDC input across the power supply connections and verify current draw stays within normal limits while verifying internal isolation barriers.
3. Speed Input Signal Injection: Connect pulse generators to both MPU channels to test dual-redundant speed tracking, zero-speed sensing, and overspeed trip response curves down to 1 ms accuracy.
4. I/O Loop Verification: Drive loop calibrators through all 8 analog inputs and force all 8 Form-C relay outputs to verify physical relay contact resistance under load.
5. Burn-in & Simulation Run: Place the controller in the built-in “Turbine Simulator” mode inside a 50°C thermal chamber for 24 hours to ensure zero micro-processor throttling or LCD flickering.

The Veteran’s Tech Trap Guide

• ⚠️ Power Supply Voltage Confusion: The 8200-1302 is an LVDC unit (18–36 VDC). Do not plug 120/230 VAC directly into the rear terminals! High-voltage variants carry different item numbers (e.g., 8200-1302 vs HV units). Applying AC voltage will destroy the internal power board instantly.
• PRO TIP: Save Your Configuration File First: Before pulling a legacy unit out of service, hook up Woodward’s Control Assistant software via Ethernet or RS-232 to upload the exact .gap or .txt tune file. Parameter settings like actuator minimum current limits and valve stroke points do not transfer automatically by swapping hardware.
• ⚠️ Keyphasor Shield Grounding: Always ground speed sensor cable shields at the 8200-1302 chassis end only. Floating or double-grounded MPU shields let plant electrical noise trickle into speed sensing circuits, inducing false overspeed trips.

Dynamic FAQ

Q: Is the Woodward 8200-1302 a direct replacement for older 505 models like the 9907-164?

A: Yes. The 8200-1302 is designed as a drop-in upgrade for legacy 505 models such as 9907-164. It matches the panel cutout dimensions while providing a superior graphical interface and expanded Ethernet communication features.

Q: How is the unit tested before shipment?

A: Every unit undergoes full bench testing using Woodward’s internal simulation mode along with physical speed signal injection on both MPU ports. All analog outputs, discrete contact inputs, and communications are validated on live test rigs prior to packaging.

Q: What warranty coverage comes with New Surplus or Reconditioned stock?

A: All units ship with a comprehensive 1-year replacement warranty. If any internal hardware defect occurs under normal operating conditions within 12 months, we replace the unit immediately from our ready stock.

Q: Can I run this unit without an external programming laptop?

A: Yes. The front panel features an integrated 8.4-inch display, keypad, and soft keys that allow full access to Configuration, Operation, and Calibration modes directly from the panel face.

Q: Does this controller support communication with our DCS?

A: Absolutely. The 8200-1302 features dual Ethernet ports supporting Modbus TCP along with RS-232/RS-485 serial Modbus RTU, letting your plant DCS monitor speed, valve position, alarms, and trip first-out events in real time.
