Woodward 8273-140 2301D Digital Load Sharing & Speed Control

Description

Product Introduction & Engineering Value

If you are tasked with upgrading an aging analog 2301A control system on a multi-engine generator skid, the Woodward 8273-140 is the exact digital platform designed to bridge that gap. Built in a compact sheet-metal chassis housing a single high-reliability printed circuit board, this 2301D controller replaces obsolete analog drift with rock-solid, software-configurable PID algorithms.

It eliminates the guesswork of turning tiny potentiometer screws during commissioning. By connecting a laptop via the front-facing 9-pin RS-232 port, site technicians can fine-tune adaptive speed-sensing filters, setup droop or isochronous speed curves, and monitor real-time engine telemetry—keeping parallel-connected gensets balanced down to fractional kilowatt variances.

Technical Specifications

• Operating Input Voltage: 18 to 40 VDC (24 VDC nominal power, 15 W maximum power consumption)
• Location Rating: Ordinary Locations (For Hazardous Location rating, see 8273-141 variant)
• Speed Sensing Input: 1 MPU Input (Accepts 1.0 to 30 Vrms Magnetic Pickup signals, 100 Hz to 12,000 Hz)
• Speed Control Modes: Isochronous (constant speed), Droop (load-dependent), and Speed Trim
• Analog Inputs: 4 Channels (0–5 V or 4–20 mA assignable for load sensor inputs, remote speed setting, or process signals)
• Analog Actuator Outputs: 1 Channel (Selectable 0–200 mA or 4–20 mA output to drive Woodward EG, EGB, or ProAct actuators)
• Discrete Inputs: 8 Configurable Contact Inputs (Idle/Rated speed select, Trip Reset, Raise/Lower Speed, Generator Breaker status)
• Relay Outputs: 3 Form-C Relay Outputs (Rated 2.0 A at 28 VDC for status alarms and shutdown indication)
• Communication Port: 9-Pin D-Sub RS-232 Serial Port (Modbus RTU protocol / Woodward Control Assistant software interface)
• Operating Temperature Range: -40°C to +70°C (-40°F to +158°F)

Field Application & The “Trench” Experience

The Trench Story

A standby power plant at an islanded water treatment facility was struggling with severe load hunting across three 2 MW diesel gensets. The old analog 2301A potentiometers had succumbed to engine vibration, causing generator 2 to shed load unexpectedly and trip the facility’s main pump breakers during high-surge starting cycles.

An emergency service call replaced the drifting analog board with a New Surplus Woodward 8273-140. Using pre-saved configuration software templates, the technician downloaded the PID parameters, calibrated the 4–20 mA actuator output loop, and zeroed the speed sense signal in under 45 minutes. When the facility stress-tested the emergency bus by starting two 500-horsepower lift pumps simultaneously, the 8273-140 stabilized generator frequency within 0.8 seconds without hunting.

Specific Field Applications

• Hospital Emergency Power Systems: Isochronous load sharing across parallel diesel generator sets during utility blackouts.
• Offshore Rig Prime Movers: Dual-fuel engine speed control requiring adaptive gear tooth filtering to ignore crankshaft torsional vibration.
• Remote Island Microgrids: Droop speed control integration with master plant SCADA over Modbus RTU serial links.

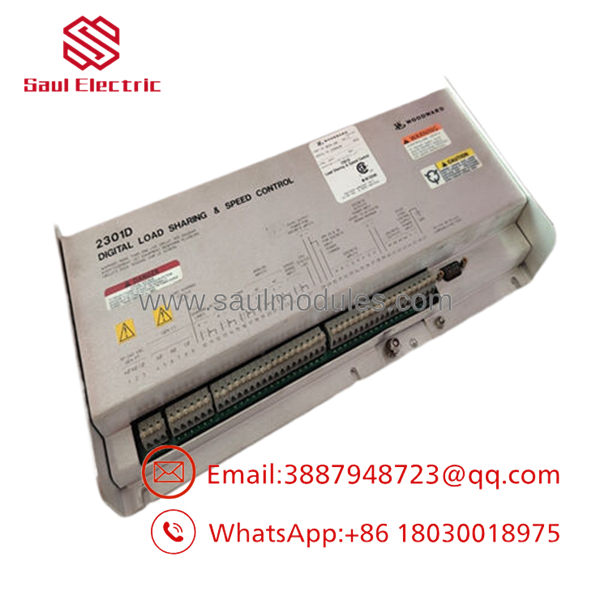

8273-140

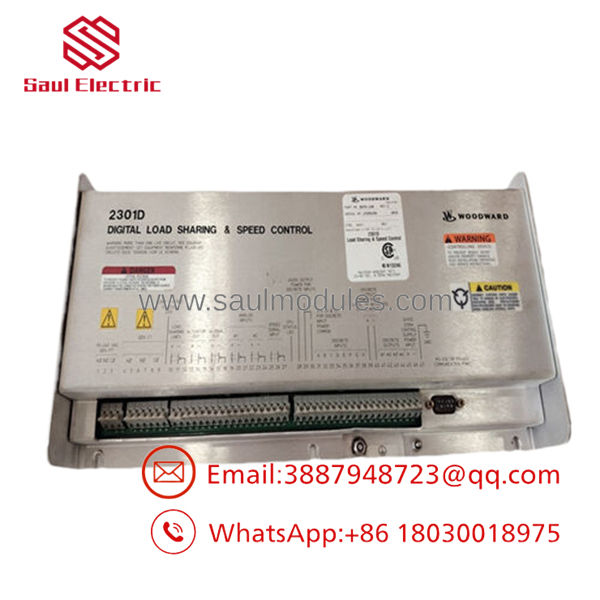

8273-140

Transparency SOP: QA & Testing

1. Power Supply & Input Rail Testing: Apply 24 VDC across terminals 1 and 2, verifying current draw remains under 600 mA while testing internal DC-to-DC isolation rails.
2. Frequency Input Calibration: Inject variable 100 Hz–10 kHz sine waves into the MPU terminal block to confirm speed detection accuracy and adaptive tooth-gap software filtering.
3. Actuator Drive Loop Test: Drive the analog actuator output through a dummy load bank to confirm zero-to-peak mA sweep linear response across the full operating range.
4. Relay & Discrete I/O Exercising: Toggle all 8 contact input circuits and verify physical state changes across all 3 Form-C relay output contacts.
5. Serial Handshake & Thermal Bake: Establish serial communication via Woodward Watch Window / Control Assistant, running continuous diagnostic telemetry in a thermal oven at 55°C for 12 hours.

The Veteran’s Tech Trap Guide

• ⚠️ Serial Cable Pinout Trap: Do not use a standard straight-through 9-pin serial cable to connect your laptop to the 8273-140. You must use a dedicated null-modem serial cable or USB-to-RS232 adapter wired specifically for Woodward control handshake signals. Otherwise, the configuration software will throw continuous “Timeout / Comm Port Error” warnings.
• PRO TIP: Save Configuration Before Removal: Always upload and save the unit’s .pf configuration file to a laptop before replacing an operational 8273-140. Swapping physical boards without restoring the exact parameter tuning values will leave the engine unable to sync or share load correctly!
• ⚠️ Shield Terminal Isolation: Ensure the magnetic pickup (MPU) shield wire is grounded at terminal 11 on the 8273-140 chassis only. Grounding both ends of the MPU shield creates ground loops that introduce electrical noise into the digital counter, leading to erratic speed governing.

Dynamic FAQ

Q: How does the digital 8273-140 compare to the older analog Woodward 2301A series?

A: The 8273-140 offers identical mounting footprints and I/O capability to the legacy 2301A, but replaces physical potentiometers with digital, software-programmable parameters. It eliminates potentiometer thermal drift and adds Modbus communications for remote monitoring.

Q: What configuration software is required to set up the 8273-140?

A: Setup is performed using Woodward’s Watch Window or Control Assistant software running on a Windows PC, connected to the front 9-pin serial port via an RS-232 cable.

Q: What type of actuator can the 8273-140 drive directly?

A: The controller’s analog output is configurable to drive standard Woodward actuators including the EG-3P, EG-6P, EGB, and ProAct series, supporting both 0–200 mA current range and standard 4–20 mA process positioners.

Q: Can this unit operate on a 120 VAC auxiliary supply?

A: No. The 8273-140 is strictly a 24 VDC powered unit operating within an 18 to 40 VDC range. Connecting 120 VAC directly will ruin the power supply section.

Q: What warranty is offered on New Surplus 8273-140 units?

A: All Woodward 8273-140 speed control modules provided are fully bench-tested and backed by a comprehensive 1-year replacement warranty from date of delivery.
