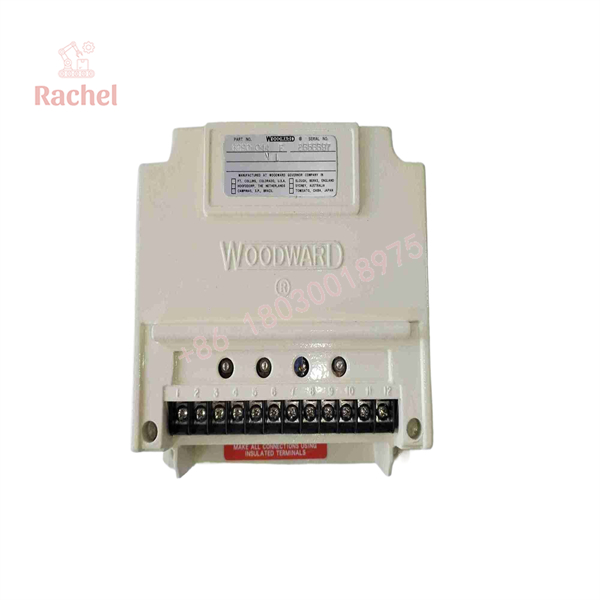

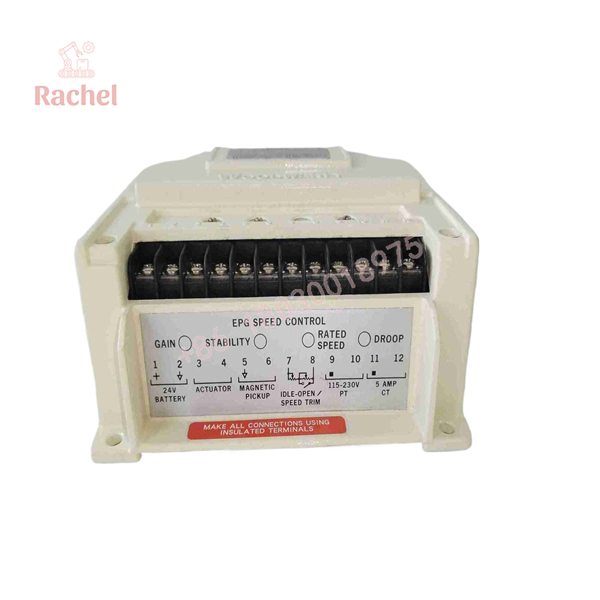

Woodward 8290-044 Speed Control Unit

Description

Product Introduction

The Woodward 8290-044 is an electronic speed control unit belonging to Woodward’s trusted EPG (Electrically Powered Governor) product family. Designed for prime-mover power generation, standby generator sets, and industrial engine drives, this controller manages engine speed by delivering precise, closed-loop throttle positioning via a dedicated 1724-model electric actuator.

To be honest, the EPG series earned its legendary reputation in the field because it eliminates the need for complex mechanical governor drives, hydraulic lines, or oil supplies. The 8290-044 operates purely on 24 VDC power and accepts a magnetic pickup (MPU) speed signal, providing rapid transient response during sudden electrical load acceptances without suffering from mechanical governor drift.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Picture this: It’s 3:00 AM on a storm-ridden night, and a critical emergency backup generator at a municipal water treatment facility fails to take on load. The engine starts up, but as soon as the main transfer switch closes, the engine sags in speed and trips on under-frequency. Your tech opens the control cabinet and finds an old EPG speed control box with burnt output driver components. The city can’t afford a week of downtime while you re-wire a whole new digital governor system—you need a direct replacement 8290-044 box wired up and tuned in under an hour.

• Emergency Power Generation – Standby diesel generator sets – Provides instant throttle response to keep voltage and frequency stable during sudden ATS transfer.
• Marine Auxiliary Engines – Shipboard genset speed regulation – Ensures reliable parallel generator operation under varying electrical loads.
• Industrial Engine Drives – Gas-engine driven pumps and compressors – Maintains tight RPM control across varying suction and discharge pressures.

8290-044

8290-044

Transparency SOP: Quality Assurance & Testing

We don’t just pull parts off a dusty shelf and box them up; every 8290-044 undergoes rigorous bench testing before leaving our shop:

1. Inbound Visual & Physical Audit: Inspection of terminal block integrity, potentiometer threads, casing grounding, and OEM identification labels.
2. Power-On Self-Test & MPU Simulation: Applying 24 VDC nominal power while feeding a calibrated signal generator into the MPU input terminals to verify speed sensing logic.
3. Actuator Output Load Testing: Connecting the output drive terminals to a live 1724 test actuator to verify clean current drive across full throttle travel.
4. Potentiometer & Tuning Response Check: Verifying smooth response across Gain, Stability, and Idle Speed potentiometers without signal dead-zones or jumps.
5. Anti-Static & Secure Packaging: Final cleaning, insertion into protective anti-static wrap, and custom foam-padded box packing designed for rugged shipping.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Observe Correct DC Polarity: Reversing the +24 VDC and battery ground connections on the power input terminals will immediately blow the internal protective diode or damage the output driver transistors. Double-check your wire labels before flipping the breaker.
• ❗ Shield the MPU Cable properly: Always use twisted-pair shielded cable for the Magnetic Pickup (MPU) wiring, and ground the shield at the control box end ONLY. Leaving the shield ungrounded—or grounding it at both ends—introduces electrical noise that causes engine speed hunting.
• ⚠️ Check Actuator Wiring Resistance: Before connecting a replacement 8290-044 to an existing actuator, measure the resistance of the 1724 actuator coil with a multimeter. A shorted actuator coil will instantly destroy the drive circuitry on your new speed control box.
• ❗ Document Your Potentiometer Settings: Before powering up the engine with a replacement board, set the GAIN and STABILITY pots to mid-position, and match the IDLE and RATED SPEED pots roughly to your old unit. Trust me, starting an engine with the GAIN cranked all the way up will cause violent speed oscillations right out of the gate.

Frequently Asked Questions (FAQ for Conversion)

Q: What is the main difference between an EPG 1712 and EPG 1724 control box like the 8290-044?

A: The difference lies in the actuator drive current capability and system voltage. The 8290-044 is configured for 24 VDC systems and paired with larger Model 1724 actuators, delivering higher mechanical force to move heavier engine fuel linkages compared to 12 V / 1712 setups.

Q: Can I use this speed control unit for both Isochronous and Droop operation?

A: Yes. For single, standalone generator operation, run the unit in Isochronous mode for constant speed. For paralleling generators onto a shared bus, connect a droop pot across the designated terminals to enable droop speed control.

Q: Is the 8290-044 still actively manufactured by Woodward?

A: No, the EPG 8290 series is legacy/discontinued by Woodward. However, we maintain high-quality New Surplus and fully bench-tested Refurbished units in stock for immediate emergency replacement.

Q: Why is my engine hunting (instability in RPM) after installing this unit?

A: Engine hunting is almost always caused by improper GAIN and STABILITY tuning or electrical noise on the MPU line. Slowly back off the GAIN pot counter-clockwise until the oscillation stops, then adjust STABILITY for smooth transient recovery.

Q: What warranty coverage comes with this module?

A: Every Woodward 8290-044 controller comes with a full 12-month functional warranty. If you experience any operational failure under normal use within one year, we will repair or replace the unit promptly.
