Woodward 8290-191 EPG Speed Control Unit

Description

Product Introduction

The Woodward 8290-191 is an electronic governor speed control unit from Woodward’s heavy-duty EPG product line. Purpose-built for prime-mover engines, diesel generator sets, and gas-driven industrial pump drivers, this unit maintains tight speed control by reading a magnetic pickup (MPU) signal and driving an electric actuator connected directly to the fuel rack.

To be honest, the EPG platform remains a favorite among field engineers because it bypasses the maintenance headaches of hydraulic lines and mechanical drive gears. Operating on a standard 24 VDC system rail, the 8290-191 delivers high dynamic response during sudden electrical load steps, ensuring your engine doesn’t bog down or trip on under-frequency during a critical load acceptance.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Picture this: It’s 2:00 AM at a remote gas processing plant, and a standby generator fails to pick up the load when utility power drops. The engine cranks fine, but the throttle linkage stays dead because the internal output transistor on the old governor box shorted out. Process equipment is minutes away from a emergency shutdown, and management is pacing the floor. You don’t need a multi-day control panel redesign—you need a pre-tested 8290-191 replacement unit swapped into the cabinet right now.

• Emergency Standby Power – Commercial & hospital backup diesel gensets – Ensures immediate throttle movement and frequency recovery when the automatic transfer switch (ATS) closes.
• Pipeline Compression – Remote natural gas engine compressor drives – Holds steady RPM despite constant fluctuations in gas suction pressures.
• Marine Auxiliary Power – Shipboard electrical generator sets – Provides clean droop sharing when paralleling multiple generator sets onto a common bus.

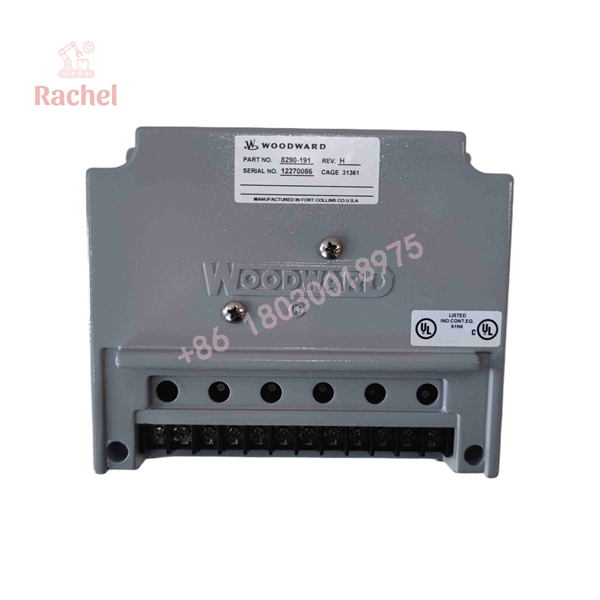

8290-191

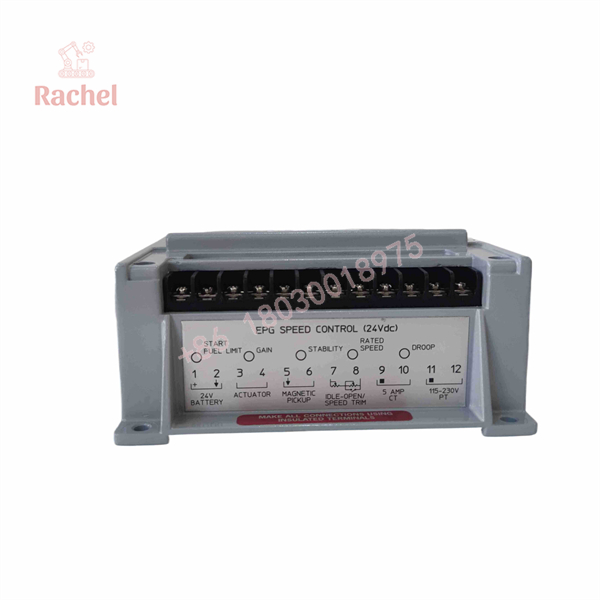

8290-191

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes pulled off an old shelf; every 8290-191 goes through a thorough bench testing process before it gets packed:

1. Inbound Mechanical Audit: Inspection of terminal block screws, casing ground points, calibration pots, and original Woodward serial decals.
2. Power-On & MPU Test: Applying 24 VDC power while feeding a frequency-calibrated signal generator into the MPU terminals to verify speed-sensing accuracy.
3. Actuator Drive Load Testing: Connecting output terminals to a live 1724 actuator load rig to verify full-range current output and throttle sweep.
4. Potentiometer Sweep Test: Checking GAIN, STABILITY, IDLE, and RATED SPEED pots with an oscilloscope to confirm smooth adjustment without dead spots or signal jumps.
5. Anti-Static ESD Packaging: Final cleaning, enclosure in anti-static shielding bags with desiccant, and custom foam packing built for heavy transit.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Watch Your DC Power Polarity: Reversing the +24 VDC and Ground connections on the supply terminals will immediately fry the internal protective diode and driver board. Always verify wire labels with a meter before closing the DC supply breaker.
• ❗ Shield the MPU Wiring Correctly: Run twisted-pair shielded cable for the Magnetic Pickup (MPU) signal line, and ground the shield at the control box terminal ONLY. Leaving both ends grounded creates ground loops that introduce noise and cause violent engine hunting.
• ⚠️ Check Actuator Coil Resistance First: Before landing wires on a new 8290-191 box, measure the resistance of the actuator coil with a multimeter. A shorted 1724 actuator coil will instantly blow out the drive output circuitry on your replacement controller.
• ❗ Preset Potentiometers Before Crank: Set GAIN and STABILITY to roughly the mid-point before starting the engine for the first time. Starting a fresh governor replacement with the GAIN pot maxed out will cause aggressive engine surging right out of the gate.

Frequently Asked Questions (FAQ for Conversion)

Q: What is the primary difference between the 8290 series controllers?

A: Variations within the 8290 family usually correspond to specific system voltages (12 VDC vs 24 VDC), actuator model pairings (1712 vs 1724), and factory default speed ranges or speed trim pot settings. The 8290-191 is configured for 24 VDC operation paired with 1724 actuators.

Q: Can I run this controller in parallel with other generator sets?

A: Yes. Connect an external droop potentiometer or droop kit across the designated terminals to enable droop speed control, allowing multiple gensets to share load evenly across a shared electrical bus.

Q: Is the Woodward 8290-191 still in active production?

A: No, the EPG 8290 series has been discontinued by Woodward. We stock high-quality New Surplus and fully bench-tested Refurbished units to support active plants running these legacy platforms.

Q: What causes engine hunting after installing a replacement box?

A: RPM hunting is usually caused by an over-sensitive GAIN setting or electrical noise leaking into the MPU line. Turn the GAIN pot counter-clockwise in small increments until the engine stabilizes, then tweak STABILITY for fast recovery under load changes.

Q: What warranty comes with this control unit?

A: Every Woodward 8290-191 unit includes a comprehensive 12-month functional warranty. If any operational defect occurs under standard operating conditions within one year, we will repair or replace the unit immediately from our stock.
