Woodward 8402-271 Speed and Phase Matcher Module

Description

Product Introduction

The Woodward 8402-271 is an SPM-A series automatic speed and phase synchronizer designed to bring oncoming generators into precise phase alignment with a live bus bar. Used extensively in power generation plants, emergency standby systems, and marine vessel power management racks, this unit issues correction signals directly to the engine governor until voltage, frequency, and phase angle match perfectly for safe breaker closure.

To be honest, the real beauty of the SPM-A platform lies in its dedicated analog processing architecture. Unlike digital synchronizers that can suffer from boot delays or software lockups during severe system voltage sags, the 8240-271 continuously evaluates phase difference in real time. It calculates the exact breaker closure lead time required to ensure zero-cross connection, effectively protecting your generator shaft, couplings, and stator windings from destructive out-of-phase closure torque.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Picture this: It’s 4:15 PM on a hot Friday afternoon during peak demand, and a peak-shaving diesel generator at an industrial facility refuses to parallel to the utility grid. The operator watches the synchroscope spin erratically, but the main breaker never receives the close signal. If you can’t parallel within the hour, the plant breaches its utility demand limit, incurring thousands of dollars in peak-charge penalties. The fault traces back to a failed analog comparator inside an aging SPM-A module. You don’t have weeks to engineer a complex digital switchgear retrofit—you need a tested 8402-271 module bolted into the cabinet right now.

• Utility Peak Shaving – On-site diesel/gas power generation – Automatically matches generator phase to the grid for seamless closed-transition paralleling.
• Marine Power Management – Shipboard diesel generator sets – Synchronizes incoming generators onto a live main switchboard without power interruption to vital marine systems.
• Emergency Standby Systems – Hospital and data center backup power – Brings backup power online smoothly during utility restoration testing.

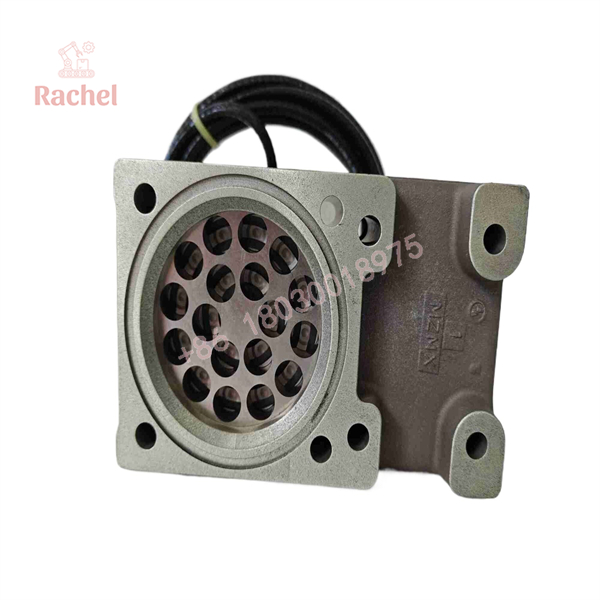

8402-271

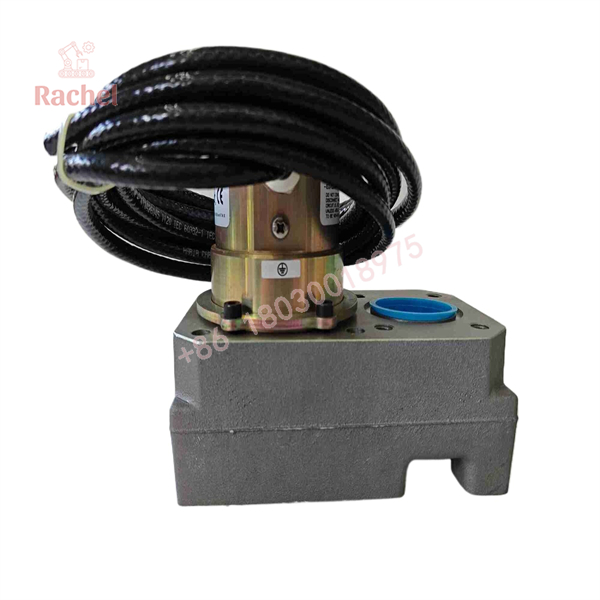

8402-271

Transparency SOP: Quality Assurance & Testing

We don’t just ship equipment straight out of a warehouse slot; every 8402-271 goes through a comprehensive bench testing protocol before shipment:

1. Inbound Mechanical Audit: Physical inspection of casing grounding points, potentiometer threads, terminal barrier strips, and original OEM labels.
2. Dual-Source AC Signal Testing: Feeding two independent AC signal generators into the Bus and Generator sensing terminals to simulate frequency slip and phase offset.
3. Speed Bias Output Verification: Confirming smooth correction voltage output (raising and lowering the governor bias signal) as frequency differences vary.
4. Breaker Close Contact Timing Check: Measuring relay contact closure timing with an oscilloscope to confirm accurate lead-time prediction prior to zero phase angle.
5. ESD Protection & Custom Packaging: Enclosure in anti-static shielding bags with desiccant packs, followed by custom foam-padded boxing built for rugged industrial shipping.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Verify Bus and Generator PT Polarity: Incorrect polarity on the 120 VAC potential transformer (PT) inputs will cause the synchronizer to read 180 degrees out of phase. If you close a breaker under this condition, you will cause severe mechanical damage to the generator coupling. Always verify phase rotation and PT polarity with a meter before enabling automatic closure!
• ❗ Shield the Governor Bias Lines: The output correction signals sent from the 8402-271 to the speed governor are sensitive to electro-magnetic interference (EMI). Always run shielded twisted-pair cabling for the governor bias circuit, grounding the shield at the synchronizer chassis end only.
• ⚠️ Check the Breaker Closing Time Setting: Ensure the internal/external breaker time delay adjustments match your physical breaker’s actual mechanical closing time (typically 50–100ms). Setting this incorrectly causes the unit to fire the closure signal too early or too late relative to zero phase match.
• ❗ Match Sensing Voltage Inputs: Double-check that your PT secondary outputs supply a clean 120 VAC nominal signal under load. Low sensing voltage (below 90 VAC) will lock out the synchronization logic and prevent breaker closure indefinitely.

Frequently Asked Questions (FAQ for Conversion)

Q: What is the main function of the Woodward 8402-271 SPM-A synchronizer?

A: It automatically monitors the voltage, frequency, and phase angle between an incoming generator and a live bus bar, sending speed correction signals to the engine governor until all parameters match, then issuing a relay contact closure to energize the generator circuit breaker.

Q: Can I use this unit with non-Woodward engine governors?

A: Yes, provided the target speed governor accepts an analog voltage or current speed-bias input (such as ±5 VDC, 0–10 VDC, or a compatible auxiliary input interface).

Q: Is the Woodward 8402-271 still actively manufactured by Woodward?

A: No, the SPM-A 8402 product family has been discontinued by Woodward. We supply fully bench-tested Refurbished and New Surplus units to keep active legacy switchgear installations running without expensive panel overhauls.

Q: Why does the synchronizer fail to issue a breaker close signal even when the generator speed looks close?

A: This usually happens if the voltage difference between the bus and generator exceeds the allowed window, or if the phase slip rate (frequency difference) is moving too fast for the programmed breaker closure lead-time logic.

Q: What warranty comes with this replacement synchronizer?

A: Every Woodward 8402-271 module comes backed by a full 12-month functional warranty. If any operational defect arises under normal use within one year, we repair or replace the unit immediately from our stock.
