Woodward 8440-1706 Easygen 3200-5 Genset Controller

Description

Product Introduction

The Woodward 8440-1706 is a versatile generator set controller belonging to Woodward’s industry-standard Easygen-3200 product line. Designed for complex power generation applications, this module combines engine protection, generator metering, automatic synchronization, and multi-unit load sharing into a single panel-mounted package suitable for stand-alone or grid-parallel operation.

To be honest, the Easygen-3200 series gained widespread field adoption because it consolidates several standalone switchgear devices into one box. By integrating voltage matching, speed bias control, busbar monitoring, and programmable logic control (PLC) functions, the 8440-1706 drastically reduces cabinet wiring complexity while offering comprehensive breaker management and load-dependent start/stop functionality.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Picture this: It’s 11:30 PM at a critical data center facility when a severe thunderstorm causes a utility blackout. Three backup diesel generators spin up, but Generator #2 fails to synchronize to the emergency bus because its paralleling controller locks up on a CANbus communication fault. The remaining two units are pushed to 95% load capacity, putting the entire facility on the brink of an overload trip. You don’t have days to re-program a different style controller—you need a pre-tested, plug-and-play 8440-1706 module loaded with your parameter configuration back in the door cutout immediately.

• Data Center Backup Power – Multi-unit paralleling systems – Manages automatic synchronizing, load-dependent starting, and peak-shaving operations.
• Hospital Emergency Power – Closed-transition utility transfer switchgear – Ensures seamless emergency power dispatch with zero power interruption during routine testing.
• Islanded Remote Microgrids – Hybrid diesel/solar microgrid management – Regulates generator speed and voltage bias to maintain grid frequency stability under shifting solar loads.

8440-1706

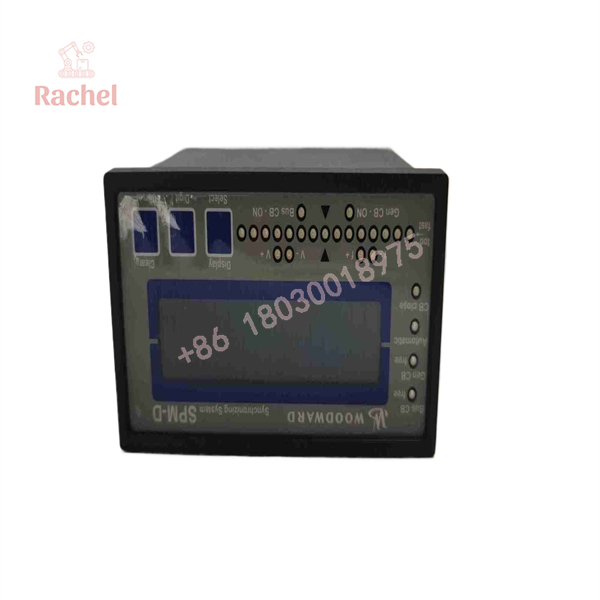

8440-1706

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes from a storage rack; every 8440-1706 controller undergoes rigorous testing on actual bench rigs before dispatch:

1. Inbound Visual & Hardware Audit: Inspection of terminal block screw connections, front panel keypads, LCD screen glass, casing ground lugs, and OEM serial tags.
2. Power Supply & Boot Sequence Check: Applying 24 VDC power to verify display boot-up, backlighting, menu navigation responsiveness, and internal diagnostic self-tests.
3. Simulated Voltage & Current Sensing: Injecting calibrated 3-phase AC voltage and current signals to test metering precision, over/under frequency trips, and phase angle tracking.
4. Communication Port Validation: Testing CANbus, RS-485, and Ethernet ports for active handshakes, firmware accessibility, and Modbus query responses.
5. ESD Protection & Custom Packaging: Enclosure in anti-static shielding wrap with moisture desiccant, protected by custom foam-padded boxes engineered for heavy transit safety.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Save Your Parameter File Before Pulling the Old Unit: Never swap an Easygen controller without uploading and saving its existing configuration file (.egp format) using Woodward Toolkit software. Re-entering hundreds of generator settings, CT/PT ratios, and PID gains manually by hand is time-consuming and prone to dangerous human error!
• ❗ Verify CT Secondary Ratings (1A vs 5A): Ensure your current transformers (CTs) match the hardware input configuration of the replacement module. Connecting 5A CT lines to a controller configured or rated for 1A secondary inputs will burn out the internal sensing resistors.
• ⚠️ Terminate CANbus Lines Properly: When connecting multiple Easygen controllers on a shared CANbus load-sharing line, install 120-ohm terminating resistors at both physical ends of the trunk line. Leaving termination off leads to packet collisions, erratic load sharing, and false communication alarms.
• ❗ Check PT Phase Rotation: Always verify 3-phase AC voltage phase rotation (A-B-C) on both the busbar and generator terminals before attempting automatic synchronization. Reversed phase sequence will cause an out-of-phase closure attempt that can tear up generator couplings.

Frequently Asked Questions (FAQ for Conversion)

Q: What is the main function of the Woodward 8440-1706 Easygen-3200 controller?

A: It provides complete generator monitoring, engine protection, automatic voltage/frequency synchronizing, and active/reactive load sharing for single or multiple generator applications operating in islanded or utility-parallel configurations.

Q: Can I transfer my existing program settings into this replacement module?

A: Yes. Connect a laptop to the service port using Woodward Toolkit software to upload your original saved parameter file directly into the 8440-1706 replacement unit within minutes.

Q: Is the Woodward 8440-1706 still actively manufactured by Woodward?

A: No, the legacy Easygen-3000/3200 series part numbers have been superseded or discontinued by Woodward. We maintain high-quality New Surplus and fully bench-tested Refurbished stock to keep existing power plants running smoothly.

Q: Why is my controller showing a “CAN Communication Fault” after installation?

A: This usually points to improper CANbus baud rate settings, incorrect node ID assignments in the menu, missing 120-ohm termination resistors, or loose wiring on the CAN high/low communication terminals.

Q: What warranty coverage comes with this replacement module?

A: Every Woodward 8440-1706 module includes a full 12-month functional warranty. If any operational failure occurs under standard operating conditions within one year, we repair or replace the unit promptly from our stock.
