Woodward 8440-2028 Easygen-3200XT-P1 Controller

Description

Product Introduction

The Woodward 8440-2028 is a premium generator set controller belonging to Woodward’s Easygen-3200XT platform. Engineered for complex power generation applications, this module integrates engine protection, generator metering, automatic voltage/frequency synchronization, and multi-unit load sharing into a single panel-mounted unit suitable for standalone, islanded, or grid-parallel operations.

To be honest, the XT series earned its reputation in critical power setups because of its enhanced software flexibility. By integrating custom LogicsManager equations, flexible analog/discrete I/O mapping, and multi-protocol communication options, the 8440-2028 allows plant operators to eliminate external PLC logic when handling intricate breaker interlocking or load-dependent engine sequencing.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Picture this: It’s 2:00 AM during a extreme winter storm, and a manufacturing facility experiences a primary utility blackout. Four diesel generators start up, but Generator #3 fails to parallel to the bus because its controller displays a hardware memory fault. The remaining three generators are running near max capacity, risking a cascade trip. You don’t have weeks to wait for a factory backorder or panel redesign—you need a pre-tested, parameter-matched 8440-2028 dropped in, loaded with your config file, and back online immediately.

• Industrial Backup Power Plants – Multi-unit paralleling systems – Manages automatic synchronizing, peak shaving, and load-dependent start/stop operations.
• Critical Data Centers & Hospitals – Emergency power switchgear – Delivers rapid auto-synchronization and closed-transition transfer functionality without power interruption.
• Remote Microgrids & Co-gen Plants – Combined heat and power (CHP) installations – Regulates speed and voltage bias to maintain system frequency stability under variable site loads.

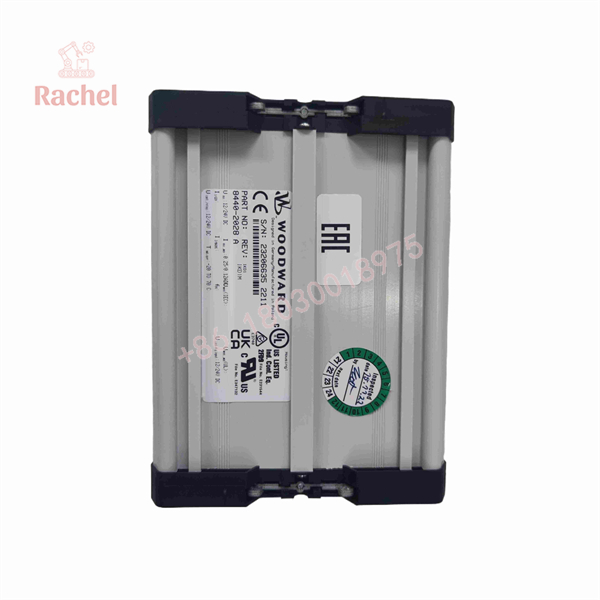

8440-2028

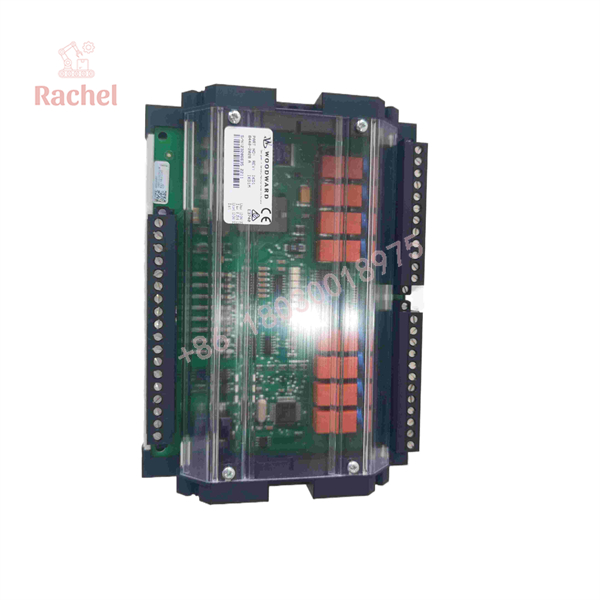

8440-2028

Transparency SOP: Quality Assurance & Testing

Every 8440-2028 controller undergoes rigorous hardware and software bench testing before shipment:

1. Inbound Visual & Physical Audit: Inspection of terminal block connectors, keypad membrane responsiveness, LCD screen clarity, housing integrity, and OEM serial labels.
2. Power-On & Boot Diagnostics: Applying 24 VDC supply voltage to verify proper screen boot, backlight operation, menu navigation, and internal hardware self-tests.
3. Simulated AC Voltage & Current Injection: Feeding calibrated 3-phase AC voltage and current signals to confirm metering accuracy, phase angle tracking, and protective trip responses.
4. Communication Port Validation: Testing CANbus, RS-485, and Ethernet ports for active handshakes, firmware accessibility, and Modbus query responses.
5. ESD Protection & Custom Packaging: Enclosure in anti-static shielding wrap with moisture desiccant, sealed in custom foam-padded boxes built for heavy transit safety.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Back Up Your Parameter File Before Replacement: Never swap out an Easygen controller without saving its configuration file (.egp format) using Woodward Toolkit software. Manually re-entering hundreds of generator parameters, CT/PT ratios, and PID loop gains by hand is time-consuming and invites dangerous configuration errors!
• ❗ Verify CT Secondary Input Ratings (1A vs 5A): Ensure your current transformer (CT) wiring matches the hardware rating and menu setup of the replacement module. Landing 5A CT secondary lines on terminals configured or rated for 1A will permanently damage the internal sensing circuits.
• ⚠️ Terminate CANbus Lines Properly: When connecting multiple Easygen controllers for load sharing over CANbus, ensure 120-ohm terminating resistors are installed at both physical ends of the communication line. Missing termination causes packet collisions, erratic load distribution, and false communication alarms.
• ❗ Verify PT Phase Rotation: Always double-check A-B-C phase rotation on both generator and busbar sensing lines before enabling automatic breaker closure. Reversed phase sequence causes an out-of-phase closure attempt that can destroy engine-generator flexible couplings.

Frequently Asked Questions (FAQ for Conversion)

Q: What is the main function of the Woodward 8440-2028 Easygen-3200XT controller?

A: It provides complete generator monitoring, engine protection, automatic voltage/frequency synchronizing, and active/reactive load sharing for single or multi-generator systems operating in islanded or grid-parallel setups.

Q: Can I transfer my existing program settings into this replacement module?

A: Yes. Connect a laptop running Woodward Toolkit software to the controller’s service port to upload your saved parameter file (.egp) directly into the replacement 8440-2028 unit.

Q: Is the Woodward 8440-2028 still actively manufactured by Woodward?

A: No, several legacy Easygen-3000XT series part numbers have been discontinued or phased out by Woodward. We maintain high-quality New Surplus and fully bench-tested Refurbished stock to keep existing power generation plants running reliably.

Q: Why is the controller showing a “CAN Communication Fault” after installation?

A: This usually points to improper CANbus baud rate settings, node ID conflicts in the menu, missing 120-ohm termination resistors, or loose wiring on the CAN high/low communication terminals.

Q: What warranty coverage comes with this replacement module?

A: Every Woodward 8440-2028 module includes a full 12-month functional warranty. If any operational failure occurs under standard operating conditions within one year, we repair or replace the unit promptly from our stock.
