Woodward 8440-2052 Easygen-3200XT Controller

Description

Product Introduction

The Woodward 8440-2052 is a high-performance generator set controller belonging to Woodward’s industry-standard Easygen-3200XT platform. Engineered for demanding power generation systems, this module combines comprehensive engine protection, generator metering, automatic voltage and frequency matching, and multi-unit paralleling into a single switchgear panel-mounted unit suitable for standalone, islanded, or utility-parallel operation.

To be honest, the Easygen-3200XT series gained widespread field adoption because of its built-in software flexibility. By integrating programmable LogicsManager equations, flexible I/O mapping, and multi-protocol communication capabilities, the 8440-2052 allows plant engineers to eliminate external PLC hardware when managing complex breaker interlocking and load-dependent start/stop sequencing.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Picture this: It’s 1:00 AM during a heavy storm, and a critical commercial facility loses utility power. Four backup diesel generators spin up, but Generator #2 fails to parallel to the emergency bus because its controller freezes with a hardware memory error. The remaining three units are pushed near maximum load capacity, putting the entire facility at risk of a total shutdown. You don’t have weeks to wait for a factory lead time or redesign the control door panel—you need a pre-tested, parameter-matched 8440-2052 dropped in, loaded with your existing setup file, and online immediately.

• Data Center & Critical Infrastructure Backup – Multi-unit generator paralleling – Manages automatic synchronizing, load-dependent engine dispatch, and peak shaving.
• Healthcare & Emergency Facilities – Closed-transition transfer switchgear – Delivers rapid auto-synchronization and seamless power transfer without interruption.
• Islanded Remote Microgrids – Diesel/hybrid power generation systems – Regulates speed and voltage bias signals to maintain grid frequency stability under shifting load conditions.

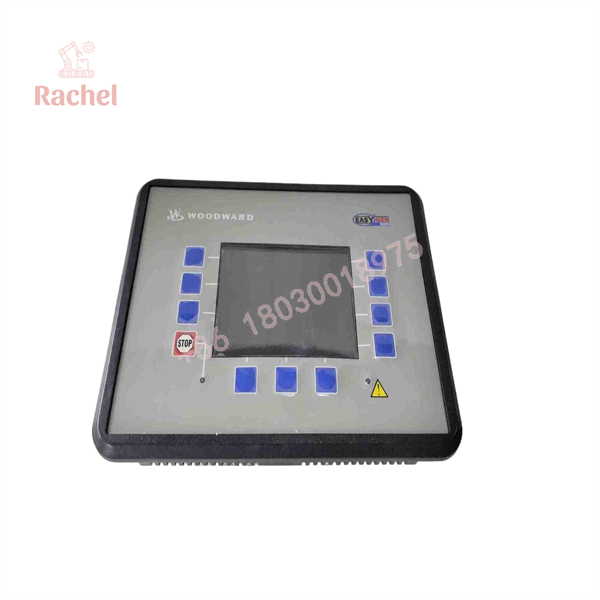

8440-2052

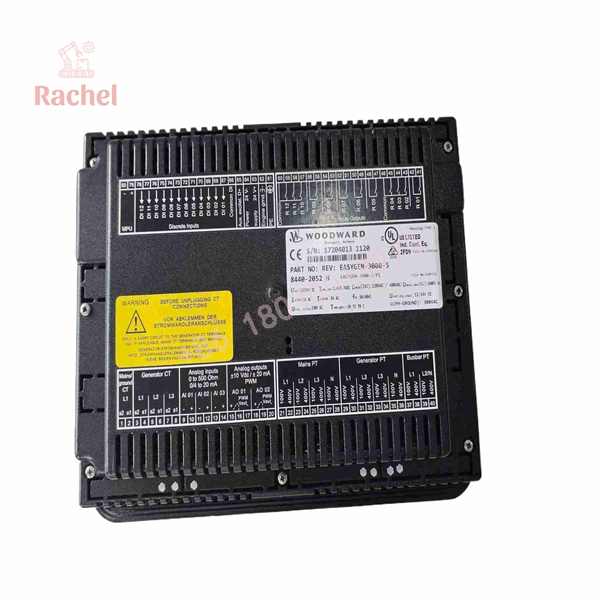

8440-2052

Transparency SOP: Quality Assurance & Testing

Every 8440-2052 controller undergoes thorough hardware and software bench testing prior to shipment:

1. Inbound Visual & Physical Audit: Complete inspection of terminal block pins, keypad membrane responsiveness, display screen clarity, housing ground points, and original serial tags.
2. Power-On & Boot Diagnostics: Applying 24 VDC control power to verify display boot sequence, screen backlighting, menu navigation responsiveness, and internal diagnostic self-tests.
3. Simulated Voltage & Current Injection: Feeding calibrated 3-phase AC voltage and current signals to verify metering accuracy, phase angle tracking, and protective trip responses.
4. Communication Port Validation: Testing CANbus, RS-485, and Ethernet ports for active handshake signals, firmware accessibility, and Modbus query responses.
5. ESD Protection & Custom Packaging: Sealed in anti-static shielding wrap with moisture desiccant, packed in custom foam-padded boxes built for safe transit.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Back Up Your Parameter File Before Replacement: Never swap out an Easygen controller without saving its current configuration file (.egp format) using Woodward Toolkit software. Re-entering hundreds of generator settings, CT/PT ratios, and PID loop gains manually by hand takes hours and invites costly human errors!
• ❗ Verify CT Secondary Input Ratings (1A vs 5A): Ensure your current transformer (CT) secondary wiring matches the hardware input rating and parameter selection of the replacement module. Landing 5A CT secondary lines on terminals rated or configured for 1A will burn out internal sensing resistors.
• ⚠️ Install Termination Resistors on CANbus Lines: When linking multiple Easygen controllers for load sharing over CANbus, verify that 120-ohm terminating resistors are installed at both physical ends of the communication trunk line. Missing resistors cause signal reflection, packet loss, and false trip alarms.
• ❗ Check PT Phase Rotation: Always verify A-B-C phase rotation on both generator and busbar voltage sensing terminals before enabling automatic breaker closure. A reversed phase sequence causes an out-of-phase closure attempt that can destroy engine-generator flexible couplings.

Frequently Asked Questions (FAQ for Conversion)

Q: What is the primary function of the Woodward 8440-2052 Easygen-3200XT controller?

A: It provides complete generator monitoring, engine protection, automatic voltage/frequency synchronizing, and active/reactive load sharing for single or multi-generator systems operating in islanded or utility-parallel setups.

Q: Can I transfer my existing program settings into this replacement unit?

A: Yes. Connect a PC running Woodward Toolkit software to the service port to upload your saved parameter file (.egp) directly into the replacement 8440-2052 controller within minutes.

Q: Is the Woodward 8440-2052 still actively manufactured by Woodward?

A: No, several legacy Easygen-3000XT series part numbers have been discontinued or phased out by Woodward. We maintain high-quality New Surplus and fully bench-tested Refurbished stock to keep existing power plants operating reliably without panel retrofits.

Q: Why is the controller displaying a “CAN Communication Fault” after installation?

A: This usually indicates incorrect CANbus baud rate settings, node ID conflicts in the menu, missing 120-ohm termination resistors, or loose wiring on the CAN high/low communication terminals.

Q: What warranty coverage comes with this replacement module?

A: Every Woodward 8440-2052 module includes a full 12-month functional warranty. If any operational defect occurs under standard operating conditions within one year, we repair or replace the unit promptly from our stock.
